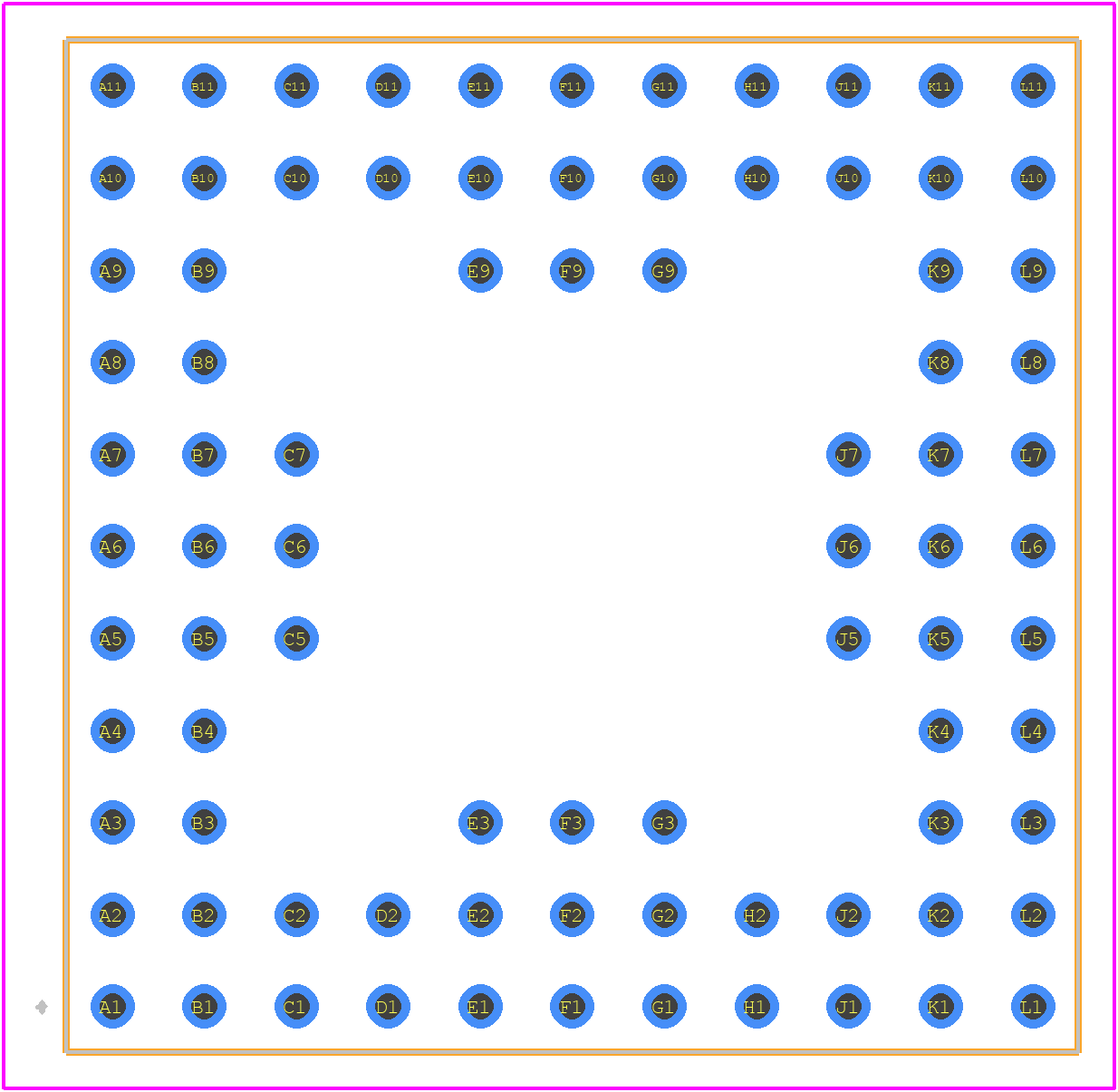

7025L55G footprint, schematic symbol and 3D model by Renesas Electronics

Symbol

PCB Footprints

3D Models

7025L55G Details

Manufacturer Part Number:
7025L55G
Brand Name:
Renesas
Pbfree Code:
No
Part Life Cycle Code:
Active
Part Package Code:
PGA
Pin Count:
84
Manufacturer Package Code:
GU84
Country Of Origin:
Thailand
ECCN Code:
EAR99
HTS Code:
8542.32.00.41
Factory Lead Time:
18 Weeks
Manufacturer:
Renesas Electronics Corporation
YTEOL:
3
Access Time-Max:
55 ns
Additional Feature:
INTERRUPT FLAG; AUTOMATIC POWER-DOWN; SEMAPHORE; BATTERY BACKUP
I/O Type:
COMMON
JESD-30 Code:
S-CPGA-P84
JESD-609 Code:
e0
Length:
27.94 mm
Memory Density:
131072 bit
Memory IC Type:
MULTI-PORT SRAM
Memory Width:
16
Moisture Sensitivity Level:
1
Number of Functions:
1
Number of Ports:
2
Number of Terminals:
84
Number of Words:
8192 words
Number of Words Code:
8000
Operating Mode:
ASYNCHRONOUS
Operating Temperature-Max:
70 °C
Organization:
8KX16
Output Characteristics:
3-STATE
Output Enable:
YES
Package Body Material:
CERAMIC, METAL-SEALED COFIRED
Package Code:
PGA
Package Equivalence Code:
PGA84M,11X11
Package Shape:
SQUARE
Package Style:
GRID ARRAY
Parallel/Serial:
PARALLEL
Peak Reflow Temperature (Cel):
240
Qualification Status:
Not Qualified
Seated Height-Max:
3.68 mm
Standby Current-Max:
0.0015 A
Supply Current-Max:
0.21 mA
Supply Voltage-Max (Vsup):
5.5 V
Supply Voltage-Min (Vsup):
4.5 V
Supply Voltage-Nom (Vsup):
5 V
Surface Mount:
NO
Technology:
CMOS
Temperature Grade:
COMMERCIAL
Terminal Finish:
Tin/Lead (Sn/Pb)
Terminal Form:
PIN/PEG
Terminal Pitch:
2.54 mm
Terminal Position:
PERPENDICULAR
Width:
27.94 mm
