7025S55GB - Renesas Electronics

7025S55GB Details

• Manufacturer Part Number:

  7025S55GB

• Brand Name:

  Renesas

• Pbfree Code:

  No

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  PGA

• Pin Count:

  84

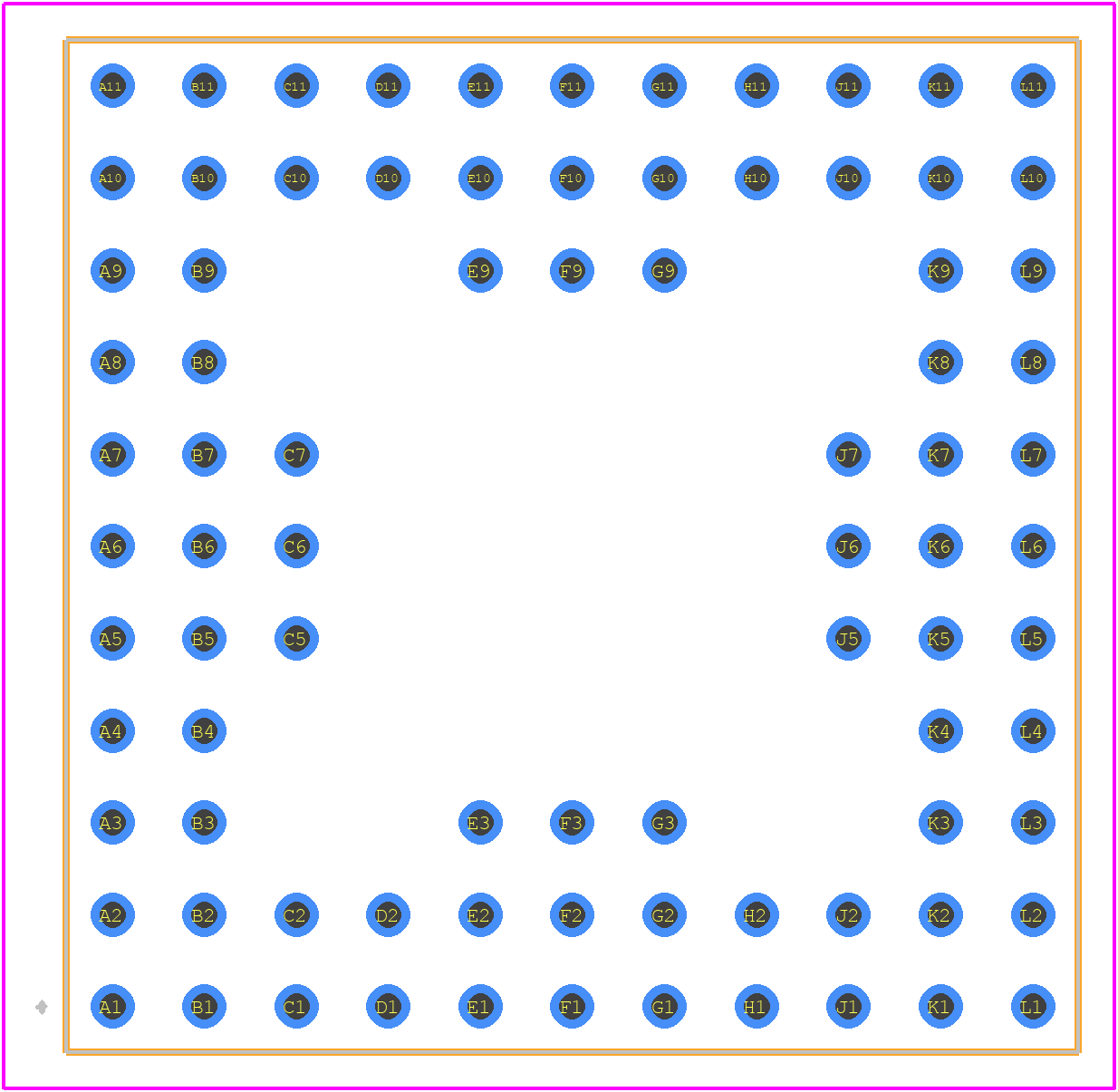

• Manufacturer Package Code:

  GU84

• ECCN Code:

  3A001.A.2.C

• HTS Code:

  8542.32.00.41

• Manufacturer:

  Renesas Electronics Corporation

• YTEOL:

  0

• Access Time-Max:

  55 ns

• Additional Feature:

  INTERRUPT FLAG; AUTOMATIC POWER-DOWN; SEMAPHORE; BATTERY BACKUP

• I/O Type:

  COMMON

• JESD-30 Code:

  S-CPGA-P84

• JESD-609 Code:

  e0

• Length:

  27.94 mm

• Memory Density:

  131072 bit

• Memory IC Type:

  MULTI-PORT SRAM

• Memory Width:

  16

• Moisture Sensitivity Level:

  1

• Number of Functions:

  1

• Number of Ports:

  2

• Number of Terminals:

  84

• Number of Words:

  8192 words

• Number of Words Code:

  8000

• Operating Mode:

  ASYNCHRONOUS

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -55 °C

• Organization:

  8KX16

• Output Characteristics:

  3-STATE

• Output Enable:

  YES

• Package Body Material:

  CERAMIC, METAL-SEALED COFIRED

• Package Code:

  PGA

• Package Equivalence Code:

  PGA84M,11X11

• Package Shape:

  SQUARE

• Package Style:

  GRID ARRAY

• Parallel/Serial:

  PARALLEL

• Peak Reflow Temperature (Cel):

  240

• Qualification Status:

  Not Qualified

• Screening Level:

  MIL-PRF-38535

• Seated Height-Max:

  3.68 mm

• Standby Current-Max:

  0.015 A

• Supply Current-Max:

  0.25 mA

• Supply Voltage-Max (Vsup):

  5.5 V

• Supply Voltage-Min (Vsup):

  4.5 V

• Supply Voltage-Nom (Vsup):

  5 V

• Surface Mount:

  NO

• Technology:

  CMOS

• Temperature Grade:

  MILITARY

• Terminal Finish:

  TIN LEAD

• Terminal Form:

  PIN/PEG

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  PERPENDICULAR

• Width:

  27.94 mm
