7026L35G - Renesas Electronics

Description: The 7026 is a high-speed 16K x 16 Dual-Port Static RAM designed to be used as a stand-alone Dual-Port RAM or as a combination MASTER/SLAVE Dual-Port RAM for 32-bit-or-more word systems. An automatic power down feature controlled by CE permits the on-chip circuitry of each port to enter a very low standby power mode. Military grade product in compliance with MIL-PRF-38535 QML is available.

Download 7026L35G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
7026L35G - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints

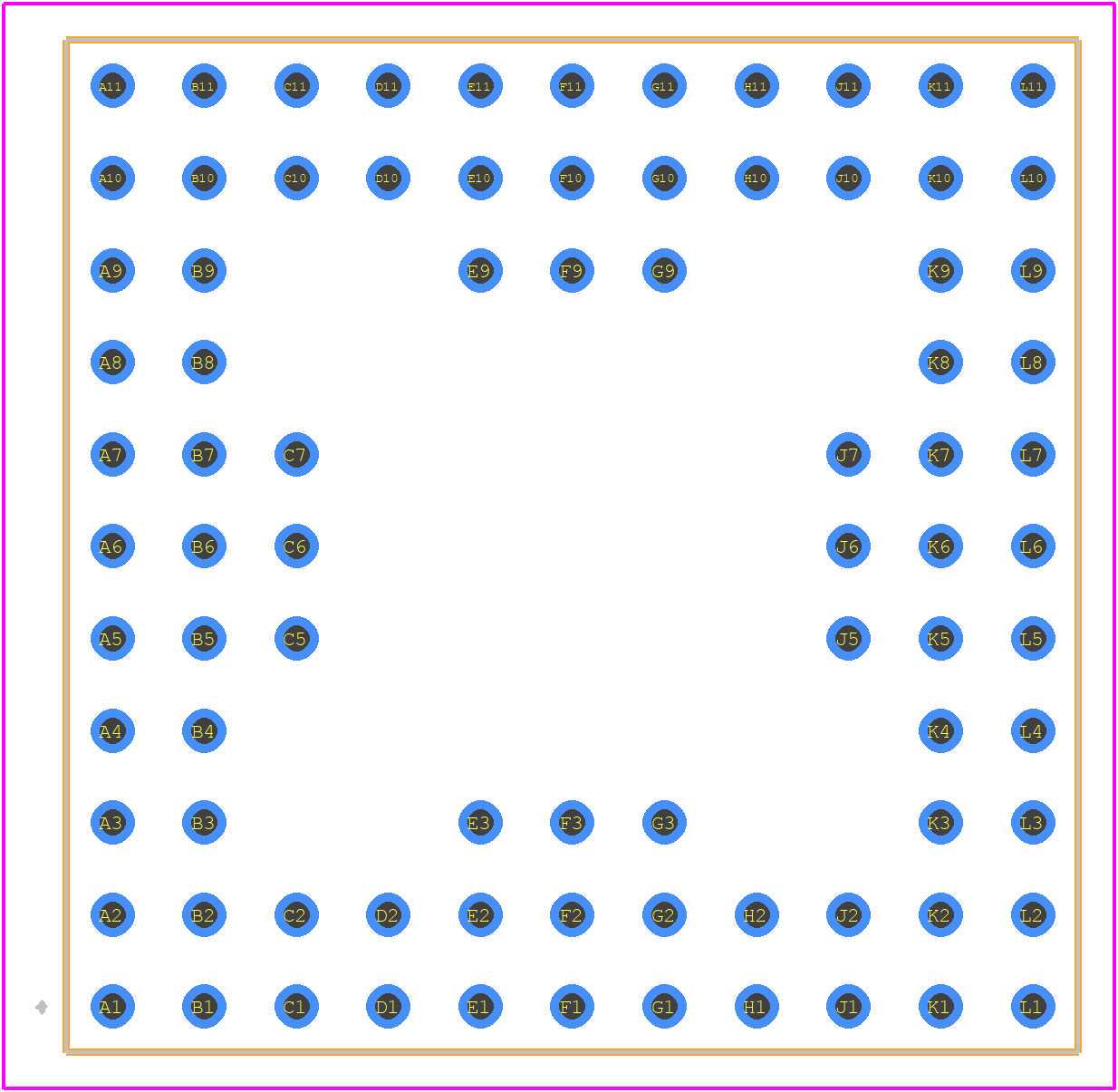

7026L35G - Renesas Electronics PCB footprint - Other - Other - GU84_REV02
click to zoom
3D Models
7026L35G - Renesas Electronics - 3D model - Other - GU84_REV02
click to zoom

7026L35G Details

  • Manufacturer Part Number:

    7026L35G

  • Brand Name:

    Renesas

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    PGA

  • Pin Count:

    84

  • Manufacturer Package Code:

    GU84

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.41

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    3

  • Access Time-Max:

    35 ns

  • I/O Type:

    COMMON

  • JESD-30 Code:

    S-CPGA-P84

  • JESD-609 Code:

    e0

  • Memory Density:

    262144 bit

  • Memory IC Type:

    MULTI-PORT SRAM

  • Memory Width:

    16

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Ports:

    2

  • Number of Terminals:

    84

  • Number of Words:

    16384 words

  • Number of Words Code:

    16000

  • Operating Mode:

    ASYNCHRONOUS

  • Operating Temperature-Max:

    70 °C

  • Organization:

    16KX16

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    CERAMIC, METAL-SEALED COFIRED

  • Package Code:

    PGA

  • Package Equivalence Code:

    PGA84M,11X11

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY

  • Parallel/Serial:

    PARALLEL

  • Peak Reflow Temperature (Cel):

    240

  • Qualification Status:

    Not Qualified

  • Standby Current-Max:

    0.005 A

  • Standby Voltage-Min:

    4.5 V

  • Supply Current-Max:

    0.255 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Terminal Form:

    PIN/PEG

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    PERPENDICULAR

7026L35G Frequently Asked Questions (FAQs)

  • The recommended crystal oscillator frequency for the 7026L35G is 12 MHz or 16 MHz, depending on the specific application and clock speed requirements.
  • To configure the 7026L35G for low-power mode, set the Power Mode Control Register (PMC) to the desired low-power mode (e.g., Sleep, Stop, or Hibernate), and ensure that all unnecessary peripherals are disabled. Additionally, consider using the built-in Low-Voltage Detector (LVD) to detect voltage drops and enter low-power mode accordingly.
  • The maximum operating temperature range for the 7026L35G is -40°C to +85°C, with a maximum junction temperature of 150°C. However, it's essential to consider the specific application and environmental conditions to ensure reliable operation.
  • To implement a watchdog timer on the 7026L35G, use the built-in Watchdog Timer (WDT) module. Configure the WDT clock source, timeout period, and reset mode according to your application requirements. Ensure that the WDT is periodically reset or refreshed to prevent unwanted resets.
  • The maximum current consumption of the 7026L35G varies depending on the operating frequency, voltage, and peripherals used. According to the datasheet, the maximum current consumption is approximately 20 mA at 5 V and 12 MHz. However, this value can be reduced by optimizing the power consumption of the device and peripherals.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

7026L35G Overview

Use the download button to access the 7026L35G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 7026L, or try a keyword search, such as SRAMs
