The recommended PCB footprint for the 70AAJ-5-F0G is a rectangular pad with dimensions of 2.5 mm x 1.5 mm, with a 0.5 mm radius corner. The pad should be centered on the component and have a minimum of 0.5 mm clearance around the component body.
To ensure reliable soldering of the 70AAJ-5-F0G, use a soldering iron with a temperature of 250°C to 270°C, and apply a small amount of solder paste to the PCB pad. Use a soldering technique that minimizes the risk of overheating the component, and avoid applying excessive force or pressure during the soldering process.
The maximum operating temperature range for the 70AAJ-5-F0G is -40°C to 125°C. However, it's recommended to operate the device within a temperature range of -20°C to 85°C for optimal performance and reliability.
Yes, the 70AAJ-5-F0G is designed to withstand high-vibration environments. However, it's recommended to follow proper mounting and soldering techniques to ensure the component remains securely attached to the PCB. Additionally, consider using a vibration-dampening material or a shock-absorbing mounting system to minimize the risk of component damage.
To handle ESD protection for the 70AAJ-5-F0G, follow proper ESD handling procedures, such as using an ESD wrist strap or mat, and storing the components in ESD-protective packaging. Additionally, consider using ESD-protective devices or circuits in the design to prevent ESD damage to the component.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
70AAJ-5-F0G Overview

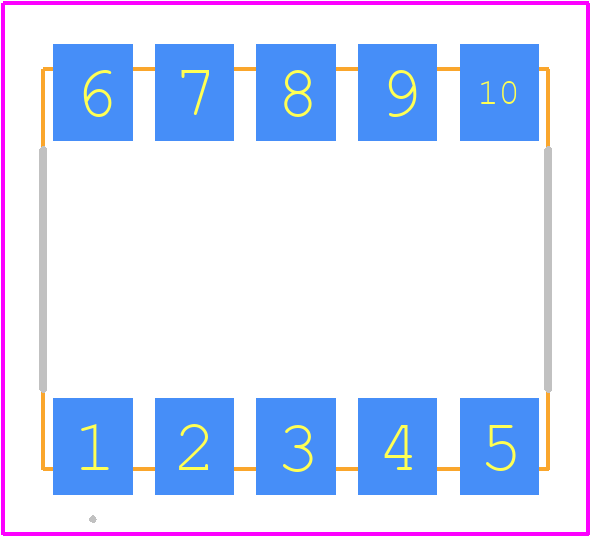

Use the download button to access the 70AAJ-5-F0G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 70AAJ,
or try a keyword search, such as Headers and Edge Type Connectors
