70T3799MS133BBG - Renesas Electronics

Description: The 70T3799M is a high-speed 128K x 72 bit synchronous Dual-Port RAM that has been optimized for applications having unidirectional or bidirectional data flow in bursts. An automatic power down feature, controlled by CE0 and CE1, permits the on-chip circuitry of each port to enter a very low standby power mode. The 70T3799M can support an operating voltage of either 3.3V or 2.5V on one or both ports, controllable by the OPT pins. The power supply for the core of the device (VDD) is at 2.5V.

Download 70T3799MS133BBG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
70T3799MS133BBG - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints

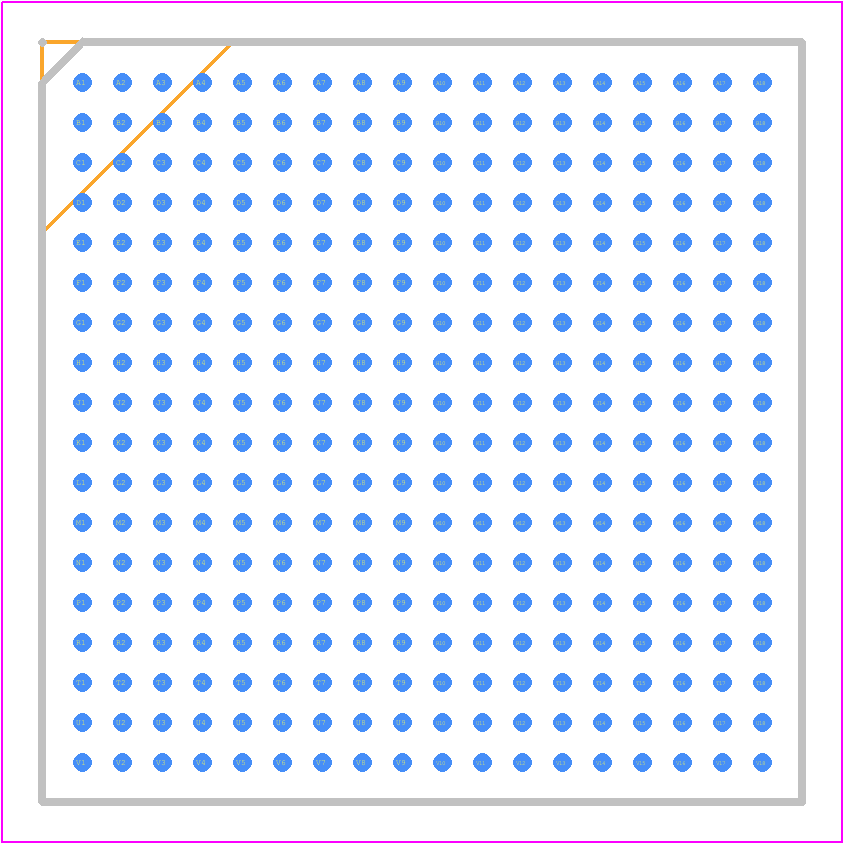

70T3799MS133BBG - Renesas Electronics PCB footprint - BGA - BGA - BBG324_3
click to zoom
3D Models
70T3799MS133BBG - Renesas Electronics - 3D model - BGA - BBG324_3
click to zoom

70T3799MS133BBG Details

  • Manufacturer Part Number:

    70T3799MS133BBG

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    PBGA

  • Pin Count:

    324

  • Manufacturer Package Code:

    BBG324

  • ECCN Code:

    3A991.B.2.A

  • HTS Code:

    8542.32.00.41

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    5

  • Access Time-Max:

    15 ns

  • Additional Feature:

    PIPELINED OR FLOW-THROUGH ARCHITECTURE

  • Clock Frequency-Max (fCLK):

    133 MHz

  • I/O Type:

    COMMON

  • JESD-30 Code:

    S-PBGA-B324

  • JESD-609 Code:

    e1

  • Memory Density:

    9437184 bit

  • Memory IC Type:

    MULTI-PORT SRAM

  • Memory Width:

    72

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Ports:

    2

  • Number of Terminals:

    324

  • Number of Words:

    131072 words

  • Number of Words Code:

    128000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    70 °C

  • Organization:

    128KX72

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    BGA

  • Package Equivalence Code:

    BGA324,18X18,40

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY

  • Parallel/Serial:

    PARALLEL

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Standby Current-Max:

    0.02 A

  • Standby Voltage-Min:

    2.4 V

  • Supply Current-Max:

    0.74 mA

  • Supply Voltage-Max (Vsup):

    2.6 V

  • Supply Voltage-Min (Vsup):

    2.4 V

  • Supply Voltage-Nom (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    40
