70T653MS12BCGI - Renesas Electronics

Description: The 70T653M is a high-speed 256K x 36 Asynchronous Dual-Port Static RAM designed to be used as a stand-alone 18874K-bit Dual-Port RAM. An automatic power down feature controlled by the chip enables (either CE0 or CE1) permit the on-chip circuitry of each port to enter a very low standby power mode.

Download 70T653MS12BCGI Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

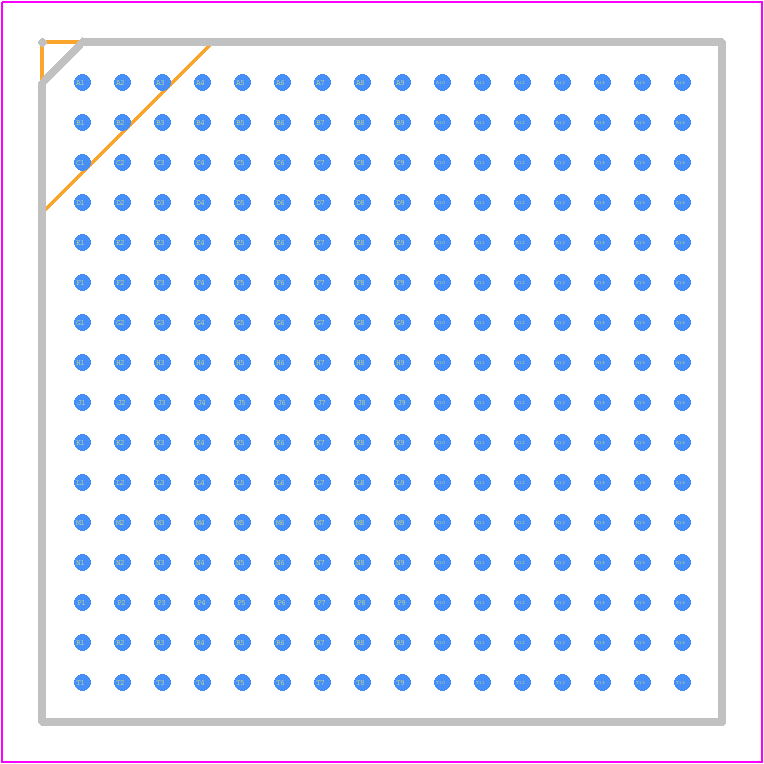

70T653MS12BCGI - Renesas Electronics PCB footprint - BGA - BGA - BC256
click to zoom
3D Models
70T653MS12BCGI - Renesas Electronics  - 3D model - BGA - BC256
click to zoom

70T653MS12BCGI Details

  • Manufacturer Part Number:

    70T653MS12BCGI

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    CABGA

  • Pin Count:

    256

  • Manufacturer Package Code:

    BCG256

  • Country Of Origin:

    Philippines

  • ECCN Code:

    3A991.b.2.a

  • HTS Code:

    8542.32.00.41

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    5

  • Access Time-Max:

    12 ns

  • I/O Type:

    COMMON

  • JESD-30 Code:

    S-PBGA-B256

  • JESD-609 Code:

    e1

  • Length:

    17 mm

  • Memory Density:

    18874368 bit

  • Memory IC Type:

    MULTI-PORT SRAM

  • Memory Width:

    36

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Ports:

    2

  • Number of Terminals:

    256

  • Number of Words:

    524288 words

  • Number of Words Code:

    512000

  • Operating Mode:

    ASYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    512KX36

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LBGA

  • Package Equivalence Code:

    BGA256,16X16,40

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE

  • Parallel/Serial:

    PARALLEL

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.5 mm

  • Standby Current-Max:

    0.04 A

  • Standby Voltage-Min:

    2.4 V

  • Supply Current-Max:

    0.79 mA

  • Supply Voltage-Max (Vsup):

    2.6 V

  • Supply Voltage-Min (Vsup):

    2.4 V

  • Supply Voltage-Nom (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    17 mm

70T653MS12BCGI Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended for optimal thermal performance. The datasheet provides a recommended land pattern, but a more detailed layout guide can be found in the Renesas application note 'Thermal Design Guide for 70T653MS12BCGI'.
  • To ensure reliable operation in high-temperature environments, it is essential to follow the recommended thermal design guidelines, use a suitable thermal interface material, and ensure good airflow around the device. Additionally, consider using a heat sink or a thermal management system to keep the junction temperature below the maximum rating.
  • The input and output capacitors should be selected based on the specific application requirements, such as voltage rating, capacitance value, and ESR. A general guideline is to use X7R or X5R ceramic capacitors with a voltage rating of at least 1.5 times the maximum input voltage. The datasheet provides a recommended capacitor value range, but the optimal value may vary depending on the specific application.
  • To troubleshoot issues with the POR circuitry, check the power supply voltage, ensure that the VCC pin is properly connected, and verify that the reset pin is properly connected to a pull-up resistor. Also, check for any noise or glitches on the power supply lines that may be causing the POR circuitry to malfunction.
  • The external clock source should be a stable, low-jitter clock signal with a frequency range of 10 MHz to 40 MHz. The clock signal should be connected to the XTAL1 pin, and the XTAL2 pin should be left unconnected. The clock signal should also meet the specified rise and fall time requirements to ensure proper device operation.
