70V657S10DRG - Renesas Electronics

Description: The 70V657 is a high-speed 32K x 36 Asynchronous Dual-Port Static RAM designed to be used as a stand-alone Dual-Port RAM or as a combination MASTER/ SLAVE Dual-Port RAM for 72-bit-or-more word system. Using the IDT MASTER/SLAVE Dual-Port RAM approach in 72-bit or wider memory system applications results in full-speed, error-free operation without the need for additional discrete logic. An automatic power down feature controlled by the chip enables (either CE0 or CE1) permit the on-chip circuitry of each por

Download 70V657S10DRG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
70V657S10DRG - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints

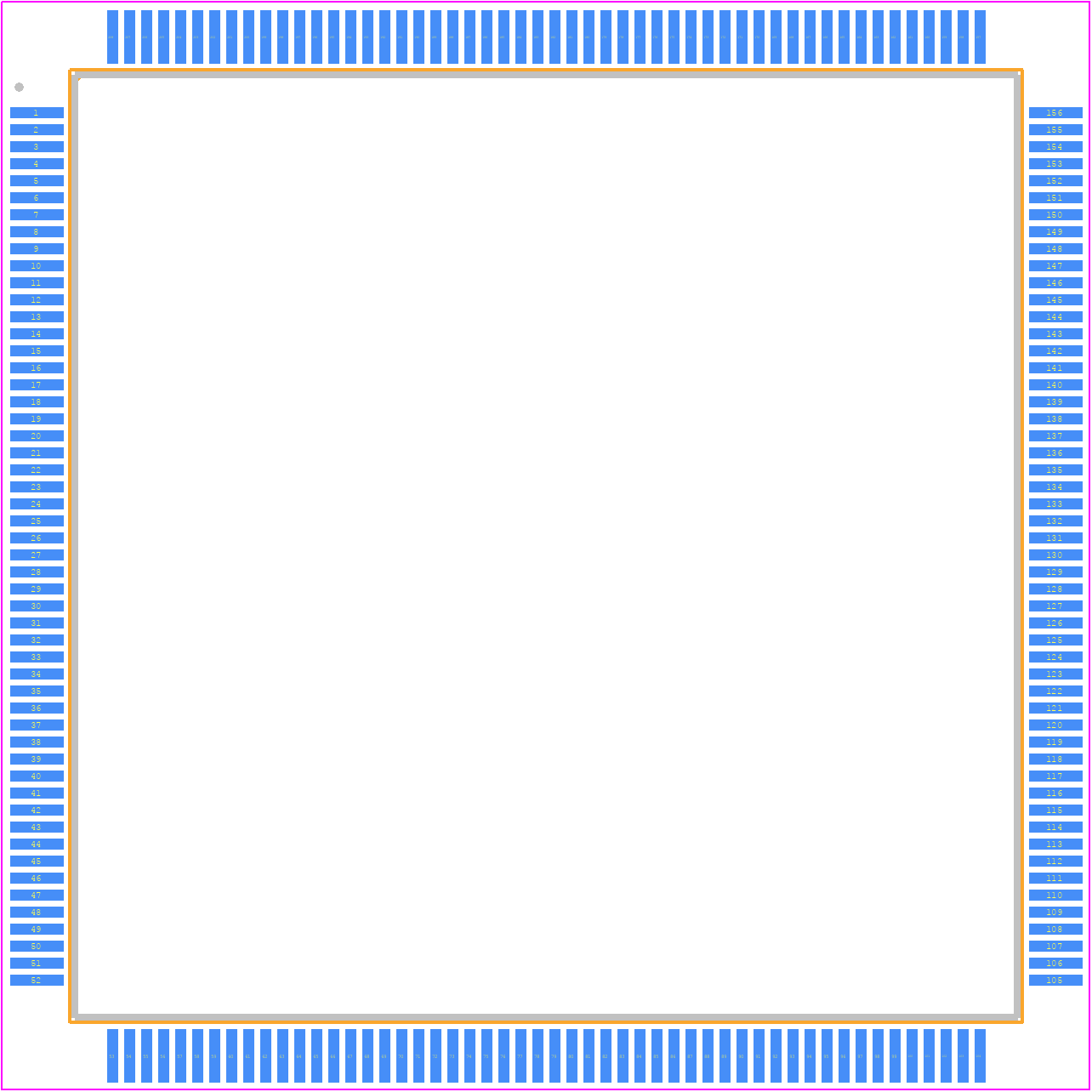

70V657S10DRG - Renesas Electronics PCB footprint - Quad Flat Packages - Quad Flat Packages - DRG208
click to zoom
3D Models
70V657S10DRG - Renesas Electronics - 3D model - Quad Flat Packages - DRG208
click to zoom

70V657S10DRG Details

  • Manufacturer Part Number:

    70V657S10DRG

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    PQFP

  • Pin Count:

    208

  • Manufacturer Package Code:

    DRG208

  • ECCN Code:

    3A991.B.2.A

  • HTS Code:

    8542.32.00.41

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Access Time-Max:

    10 ns

  • I/O Type:

    COMMON

  • JESD-30 Code:

    S-PQFP-G208

  • JESD-609 Code:

    e3

  • Length:

    28 mm

  • Memory Density:

    1179648 bit

  • Memory IC Type:

    MULTI-PORT SRAM

  • Memory Width:

    36

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Ports:

    2

  • Number of Terminals:

    208

  • Number of Words:

    32768 words

  • Number of Words Code:

    32000

  • Operating Mode:

    ASYNCHRONOUS

  • Operating Temperature-Max:

    70 °C

  • Organization:

    32KX36

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    FQFP

  • Package Equivalence Code:

    QFP208,1.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, FINE PITCH

  • Parallel/Serial:

    PARALLEL

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    4.1 mm

  • Standby Current-Max:

    0.015 A

  • Standby Voltage-Min:

    3.15 V

  • Supply Current-Max:

    0.5 mA

  • Supply Voltage-Max (Vsup):

    3.45 V

  • Supply Voltage-Min (Vsup):

    3.15 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    28 mm

70V657S10DRG Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the 70V657S10DRG is -40°C to +85°C.
  • The power-up sequence for the 70V657S10DRG should follow the order of VCC, then VIO, and finally VREF. This ensures proper device operation and prevents latch-up or damage.
  • The maximum clock frequency supported by the 70V657S10DRG is 100 MHz.
  • A reliable reset circuit for the 70V657S10DRG can be implemented using a voltage supervisor IC, such as the Renesas ISL88009, which provides a reset signal to the device during power-up or brownout conditions.
  • When designing a PCB layout for the 70V657S10DRG, it's essential to follow good high-speed design practices, such as using controlled impedance traces, minimizing signal routing lengths, and providing adequate power and ground planes.
