70V659S12BC - Renesas Electronics

Description: The 70V659 is a high-speed 128K x 36 Asynchronous Dual-Port Static RAM designed to be used as a stand-alone Dual-Port RAM or as a combination MASTER/ SLAVE Dual-Port RAM for 72-bit-or-more word system. Using the IDT MASTER/SLAVE Dual-Port RAM approach in 72-bit or wider memory system applications results in full-speed, error-free operation without the need for additional discrete logic. An automatic power down feature controlled by the chip enables (either CE0 or CE1) permit the on-chip circuitry of each po

Download 70V659S12BC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

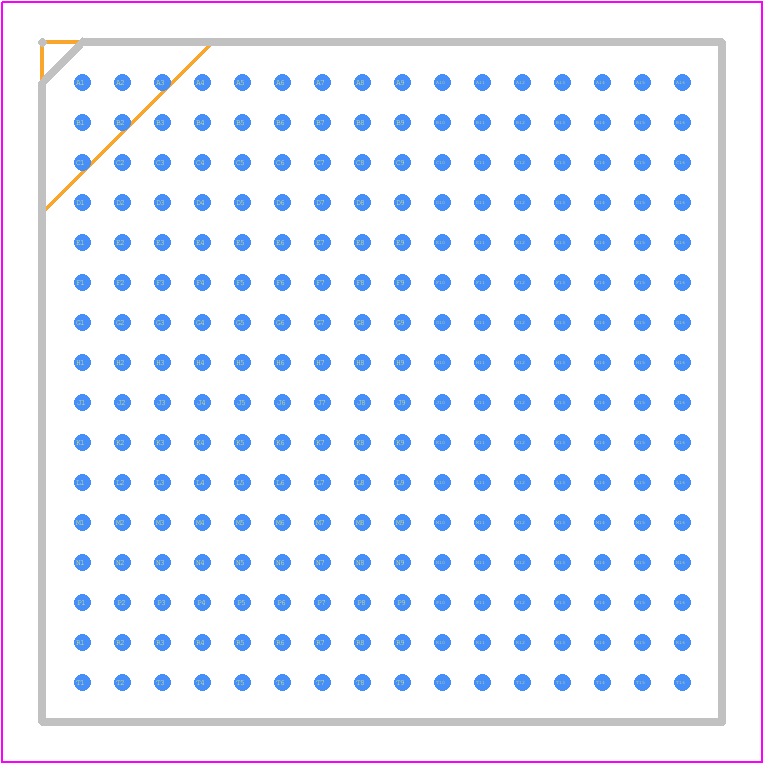

70V659S12BC - Renesas Electronics PCB footprint - BGA - BGA - BC256_
click to zoom
3D Models
70V659S12BC - Renesas Electronics  - 3D model - BGA - BC256_
click to zoom

70V659S12BC Details

  • Manufacturer Part Number:

    70V659S12BC

  • Brand Name:

    Renesas

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    CABGA

  • Pin Count:

    256

  • Manufacturer Package Code:

    BC256

  • ECCN Code:

    3A991.b.2.a

  • HTS Code:

    8542.32.00.41

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Access Time-Max:

    12 ns

  • I/O Type:

    COMMON

  • JESD-30 Code:

    S-PBGA-B256

  • JESD-609 Code:

    e0

  • Length:

    17 mm

  • Memory Density:

    4718592 bit

  • Memory IC Type:

    MULTI-PORT SRAM

  • Memory Width:

    36

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Ports:

    2

  • Number of Terminals:

    256

  • Number of Words:

    131072 words

  • Number of Words Code:

    128000

  • Operating Mode:

    ASYNCHRONOUS

  • Operating Temperature-Max:

    70 °C

  • Organization:

    128KX36

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LBGA

  • Package Equivalence Code:

    BGA256,16X16,40

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE

  • Parallel/Serial:

    PARALLEL

  • Peak Reflow Temperature (Cel):

    225

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.5 mm

  • Standby Current-Max:

    0.015 A

  • Standby Voltage-Min:

    3.15 V

  • Supply Current-Max:

    0.465 mA

  • Supply Voltage-Max (Vsup):

    3.45 V

  • Supply Voltage-Min (Vsup):

    3.15 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    TIN LEAD

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    20

  • Width:

    17 mm

70V659S12BC Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application notes (e.g., AN9793) and evaluation board documentation. It's essential to follow these guidelines to ensure proper signal integrity, power supply decoupling, and thermal management.
  • The 70V659S12BC has an internal POR and BOD circuitry. To implement POR, connect the VCC pin to a power supply with a suitable voltage regulator. For BOD, connect the BOD pin to a voltage divider network that sets the desired brown-out detection threshold. Refer to the datasheet and application notes for specific implementation details.
  • The 70V659S12BC has a maximum junction temperature (Tj) of 150°C. To ensure reliable operation, implement proper thermal management by using a heat sink, thermal interface material, and ensuring good airflow. Follow the thermal design guidelines in the datasheet and application notes to prevent overheating.
  • The 70V659S12BC has a flexible clock system. Configure the clock settings using the Clock Control Register (CCR) and Clock Prescaler Register (CPR). Refer to the datasheet and user manual for specific register settings and clock configuration options.
  • To ensure EMC and EMI compliance, follow the guidelines in the datasheet and application notes. Implement proper PCB layout, use shielding, and add filtering components (e.g., ferrite beads, capacitors) to minimize electromagnetic radiation and susceptibility.
