70V659S12BFGI - Renesas Electronics

Description: The 70V659 is a high-speed 128K x 36 Asynchronous Dual-Port Static RAM designed to be used as a stand-alone Dual-Port RAM or as a combination MASTER/ SLAVE Dual-Port RAM for 72-bit-or-more word system. Using the IDT MASTER/SLAVE Dual-Port RAM approach in 72-bit or wider memory system applications results in full-speed, error-free operation without the need for additional discrete logic. An automatic power down feature controlled by the chip enables (either CE0 or CE1) permit the on-chip circuitry of each po

Download 70V659S12BFGI Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

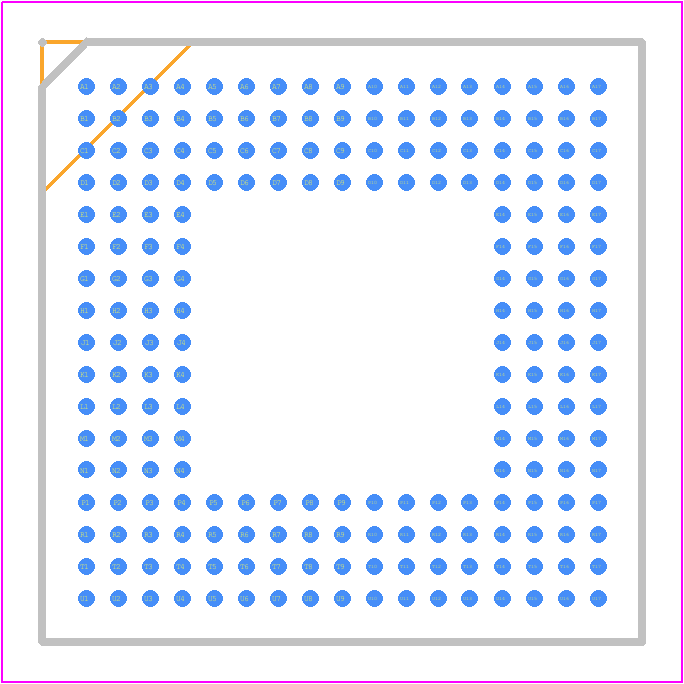

70V659S12BFGI - Renesas Electronics PCB footprint - BGA - BGA - BFG208-
click to zoom
3D Models
70V659S12BFGI - Renesas Electronics  - 3D model - BGA - BFG208-
click to zoom

70V659S12BFGI Details

  • Manufacturer Part Number:

    70V659S12BFGI

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    CABGA

  • Pin Count:

    208

  • Manufacturer Package Code:

    BFG208

  • ECCN Code:

    3A991.b.2.a

  • HTS Code:

    8542.32.00.41

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    5

  • Access Time-Max:

    12 ns

  • I/O Type:

    COMMON

  • JESD-30 Code:

    S-PBGA-B208

  • JESD-609 Code:

    e1

  • Length:

    15 mm

  • Memory Density:

    4718592 bit

  • Memory IC Type:

    MULTI-PORT SRAM

  • Memory Width:

    36

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Ports:

    2

  • Number of Terminals:

    208

  • Number of Words:

    131072 words

  • Number of Words Code:

    128000

  • Operating Mode:

    ASYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    128KX36

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TFBGA

  • Package Equivalence Code:

    BGA208,17X17,32

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, THIN PROFILE, FINE PITCH

  • Parallel/Serial:

    PARALLEL

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Standby Current-Max:

    0.015 A

  • Standby Voltage-Min:

    3.15 V

  • Supply Current-Max:

    0.515 mA

  • Supply Voltage-Max (Vsup):

    3.45 V

  • Supply Voltage-Min (Vsup):

    3.15 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    15 mm
