70V659S12BFI - Renesas Electronics

Description: The 70V659 is a high-speed 128K x 36 Asynchronous Dual-Port Static RAM designed to be used as a stand-alone Dual-Port RAM or as a combination MASTER/ SLAVE Dual-Port RAM for 72-bit-or-more word system. Using the IDT MASTER/SLAVE Dual-Port RAM approach in 72-bit or wider memory system applications results in full-speed, error-free operation without the need for additional discrete logic. An automatic power down feature controlled by the chip enables (either CE0 or CE1) permit the on-chip circuitry of each po

Download 70V659S12BFI Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
70V659S12BFI - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints

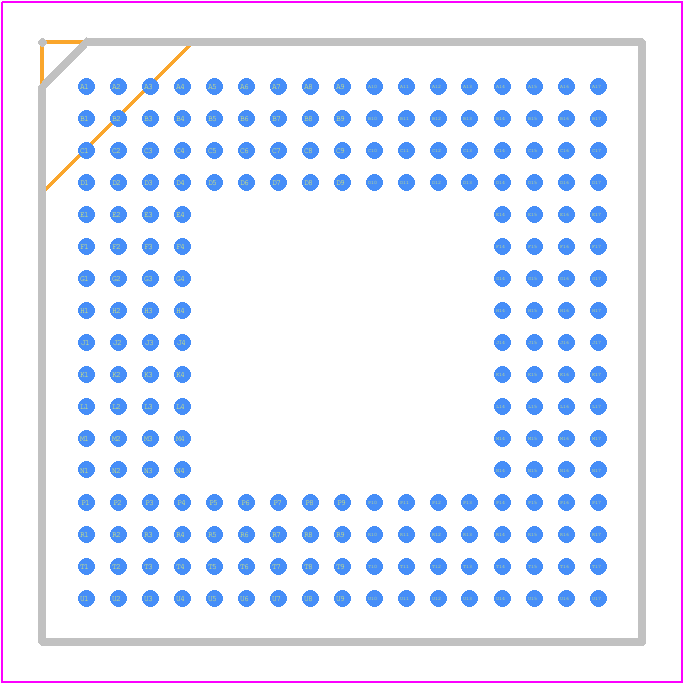

70V659S12BFI - Renesas Electronics PCB footprint - BGA - BGA - BFG208-
click to zoom
3D Models
70V659S12BFI - Renesas Electronics - 3D model - BGA - BFG208-
click to zoom

70V659S12BFI Details

  • Manufacturer Part Number:

    70V659S12BFI

  • Brand Name:

    Renesas

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    CABGA

  • Pin Count:

    208

  • Manufacturer Package Code:

    BF208

  • ECCN Code:

    3A991.b.2.a

  • HTS Code:

    8542.32.00.41

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    4

  • Access Time-Max:

    12 ns

  • I/O Type:

    COMMON

  • JESD-30 Code:

    S-PBGA-B208

  • JESD-609 Code:

    e0

  • Length:

    15 mm

  • Memory Density:

    4718592 bit

  • Memory IC Type:

    MULTI-PORT SRAM

  • Memory Width:

    36

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Ports:

    2

  • Number of Terminals:

    208

  • Number of Words:

    131072 words

  • Number of Words Code:

    128000

  • Operating Mode:

    ASYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    128KX36

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TFBGA

  • Package Equivalence Code:

    BGA208,17X17,32

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, THIN PROFILE, FINE PITCH

  • Parallel/Serial:

    PARALLEL

  • Peak Reflow Temperature (Cel):

    225

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Standby Current-Max:

    0.015 A

  • Standby Voltage-Min:

    3.15 V

  • Supply Current-Max:

    0.515 mA

  • Supply Voltage-Max (Vsup):

    3.45 V

  • Supply Voltage-Min (Vsup):

    3.15 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Lead (Sn63Pb37)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    20

  • Width:

    15 mm

70V659S12BFI Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note (AP-6093) for the 70V659S12BFI. It includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
  • The 70V659S12BFI has a built-in POR and BOD circuit. To implement POR, connect the VCC pin to a power supply and ensure a stable voltage. For BOD, connect the BOD pin to a voltage divider network that detects the brown-out condition. Refer to the datasheet for specific implementation details.
  • The maximum clock frequency for the 70V659S12BFI is 12 MHz. However, it's recommended to consult the datasheet and application notes for specific clock frequency limitations and considerations for your particular design.
  • The CS pin is active low. To configure it, connect the CS pin to a logic low signal when the SPI bus is active, and a logic high signal when the bus is inactive. Ensure that the CS pin is properly synchronized with the clock signal to avoid data corruption.
  • The recommended operating temperature range for the 70V659S12BFI is -40°C to +85°C. However, it's essential to consult the datasheet and application notes for specific temperature-related considerations and limitations for your particular design.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

70V659S12BFI Overview

Use the download button to access the 70V659S12BFI schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 70V65, or try a keyword search, such as SRAMs
