71016S15YG8 - Renesas Electronics

Description: The 71016 5V CMOS SRAM is organized as 64K x 16. All bidirectional inputs and outputs of the 71016 are TTL-compatible and operation is from a single 5V supply. Fully static asynchronous circuitry is used, requiring no clocks or refresh for operation.

Download 71016S15YG8 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

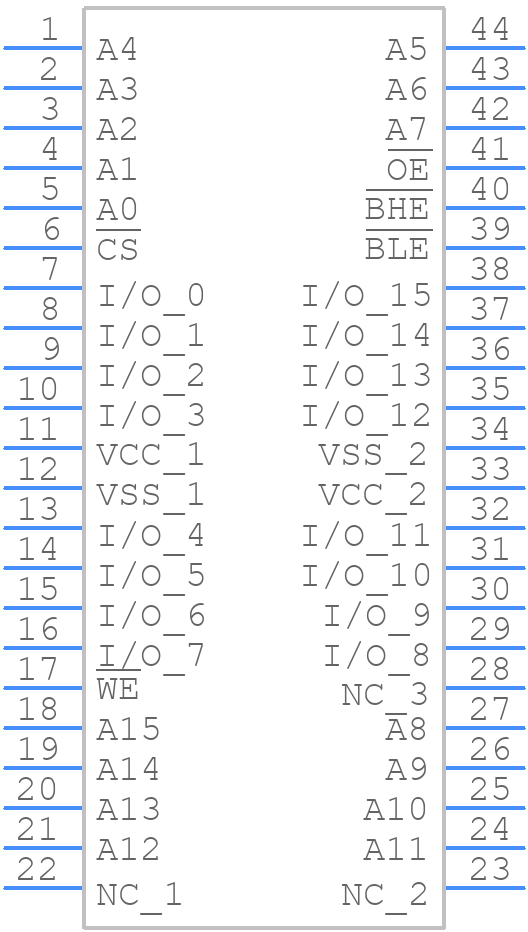

71016S15YG8 - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
71016S15YG8 - Renesas Electronics PCB footprint - Other - Other - PBG44
click to zoom
3D Models
71016S15YG8 - Renesas Electronics - 3D model - Other - PBG44
click to zoom

71016S15YG8 Details

  • Manufacturer Part Number:

    71016S15YG8

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOJ

  • Pin Count:

    44

  • Manufacturer Package Code:

    PBG44

  • ECCN Code:

    3A991.b.2.b

  • HTS Code:

    8542.32.00.41

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Access Time-Max:

    15 ns

  • I/O Type:

    COMMON

  • JESD-30 Code:

    R-PDSO-J44

  • JESD-609 Code:

    e3

  • Length:

    28.575 mm

  • Memory Density:

    1048576 bit

  • Memory IC Type:

    STANDARD SRAM

  • Memory Width:

    16

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    44

  • Number of Words:

    65536 words

  • Number of Words Code:

    64000

  • Operating Mode:

    ASYNCHRONOUS

  • Operating Temperature-Max:

    70 °C

  • Organization:

    64KX16

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOJ

  • Package Equivalence Code:

    SOJ44,.44

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Parallel/Serial:

    PARALLEL

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    3.683 mm

  • Standby Current-Max:

    0.01 A

  • Standby Voltage-Min:

    4.5 V

  • Supply Current-Max:

    0.18 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    J BEND

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    10.16 mm

71016S15YG8 Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the 71016S15YG8 is 2.7V to 5.5V, with a typical voltage of 3.3V.
  • The clock settings for the 71016S15YG8 can be configured using the Clock Control Register (CCR) and the Clock Source Select Register (CSSR). Refer to the datasheet for specific register addresses and bit settings.
  • The maximum frequency of the 71016S15YG8's CPU is 20 MHz, but it can be adjusted using the Clock Control Register (CCR) to operate at lower frequencies for power-saving purposes.
  • The 71016S15YG8's ADC module can be used by configuring the ADC Control Register (ADCCR), selecting the analog input channel, and setting the conversion mode. Refer to the datasheet for specific register addresses and bit settings.
  • The Watchdog Timer (WDT) is a safety feature that resets the microcontroller if it fails to respond within a specified time period, typically used to prevent system crashes or hangs.
