71016S20PHGI8 - Renesas Electronics

Description: The 71016 5V CMOS SRAM is organized as 64K x 16. All bidirectional inputs and outputs of the 71016 are TTL-compatible and operation is from a single 5V supply. Fully static asynchronous circuitry is used, requiring no clocks or refresh for operation.

Download 71016S20PHGI8 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

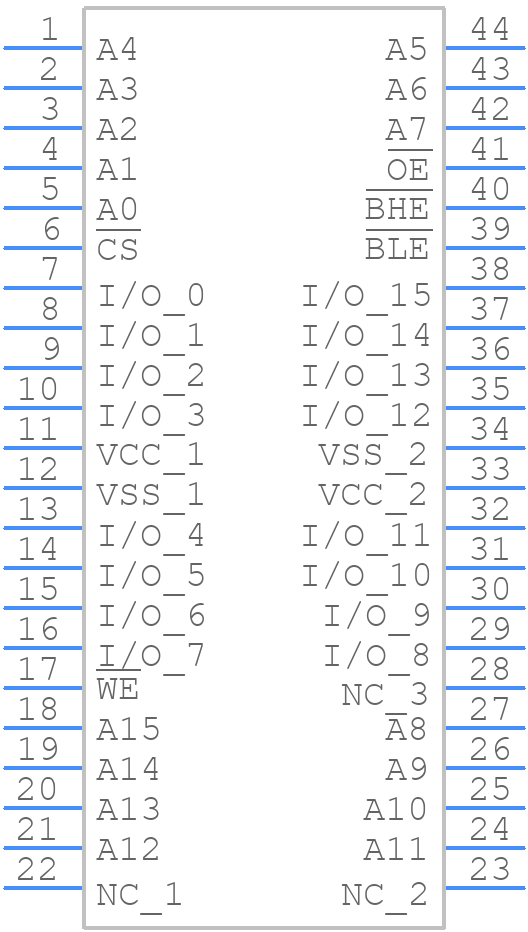

71016S20PHGI8 - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints

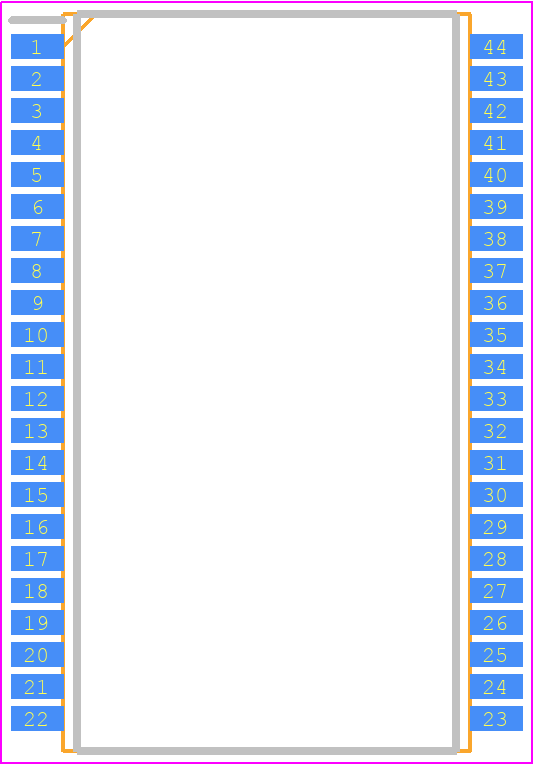

71016S20PHGI8 - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - PHG44
click to zoom
3D Models
71016S20PHGI8 - Renesas Electronics - 3D model - Small Outline Packages - PHG44
click to zoom

71016S20PHGI8 Details

  • Manufacturer Part Number:

    71016S20PHGI8

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSOP

  • Pin Count:

    44

  • Manufacturer Package Code:

    PHG44

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    3A991.b.2.b

  • HTS Code:

    8542.32.00.41

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    4

  • Access Time-Max:

    20 ns

  • I/O Type:

    COMMON

  • JESD-30 Code:

    R-PDSO-G44

  • JESD-609 Code:

    e3

  • Length:

    18.41 mm

  • Memory Density:

    1048576 bit

  • Memory IC Type:

    STANDARD SRAM

  • Memory Width:

    16

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    44

  • Number of Words:

    65536 words

  • Number of Words Code:

    64000

  • Operating Mode:

    ASYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    64KX16

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSOP2

  • Package Equivalence Code:

    TSOP44,.46,32

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE

  • Parallel/Serial:

    PARALLEL

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Standby Current-Max:

    0.01 A

  • Standby Voltage-Min:

    4.5 V

  • Supply Current-Max:

    0.17 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    10.16 mm

71016S20PHGI8 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the 71016S20PHGI8 is -40°C to +85°C, as specified in the datasheet. However, it's essential to note that the device can operate at temperatures beyond this range, but with reduced performance and reliability.
  • The clock settings for the 71016S20PHGI8 can be configured using the Clock Control Register (CCR). The CCR allows you to select the clock source, divide the clock frequency, and enable or disable the clock. Refer to the datasheet and the Renesas Electronics Corporation's application notes for detailed instructions.
  • The maximum current consumption of the 71016S20PHGI8 depends on the operating frequency, voltage, and other factors. According to the datasheet, the typical current consumption is around 350 mA at 20 MHz and 3.3 V. However, it's recommended to consult the datasheet and perform thorough testing to determine the actual current consumption for your specific application.
  • The 71016S20PHGI8 offers several low-power modes, including Sleep, Stop, and Hibernate modes. These modes can be enabled by configuring the Power Management Register (PMR) and the Clock Control Register (CCR). Refer to the datasheet and the Renesas Electronics Corporation's application notes for detailed instructions on implementing low-power modes.
  • The 71016S20PHGI8 features a range of communication interfaces, including UART, SPI, I2C, I2S, and USB. The device also supports various serial communication protocols, such as LIN, CAN, and Ethernet. Refer to the datasheet for detailed information on the available interfaces and their configurations.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

71016S20PHGI8 Overview

Use the download button to access the 71016S20PHGI8 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 71016, or try a keyword search, such as SRAMs
