71024S12TYG8 - Renesas Electronics

Description: The 71024 5V CMOS SRAM is organized as 128K x 8. All bidirectional inputs and outputs of the 71024 are TTL-compatible, and operation is from a single 5V supply. Fully static asynchronous circuitry is used; no clocks or refreshes are required for operation.

Download 71024S12TYG8 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

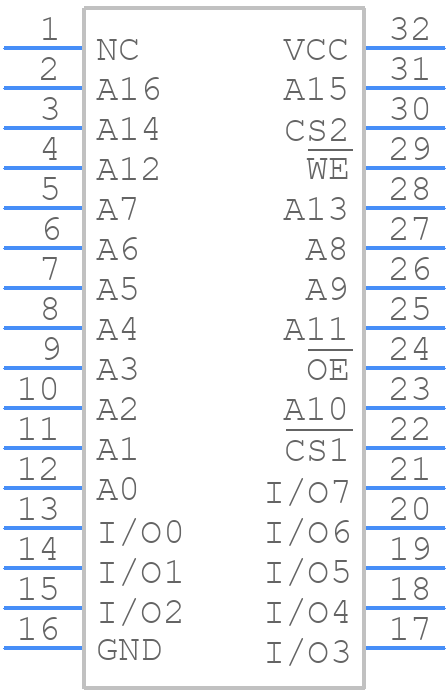

71024S12TYG8 - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
71024S12TYG8 - Renesas Electronics PCB footprint - Other - Other - PJG32
click to zoom
3D Models
71024S12TYG8 - Renesas Electronics - 3D model - Other - PJG32
click to zoom

71024S12TYG8 Details

  • Manufacturer Part Number:

    71024S12TYG8

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOJ

  • Pin Count:

    32

  • Manufacturer Package Code:

    PJG32

  • ECCN Code:

    3A991.b.2.b

  • HTS Code:

    8542.32.00.41

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Access Time-Max:

    12 ns

  • I/O Type:

    COMMON

  • JESD-30 Code:

    R-PDSO-J32

  • JESD-609 Code:

    e3

  • Length:

    20.96 mm

  • Memory Density:

    1048576 bit

  • Memory IC Type:

    STANDARD SRAM

  • Memory Width:

    8

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Ports:

    1

  • Number of Terminals:

    32

  • Number of Words:

    131072 words

  • Number of Words Code:

    128000

  • Operating Mode:

    ASYNCHRONOUS

  • Operating Temperature-Max:

    70 °C

  • Organization:

    128KX8

  • Output Characteristics:

    3-STATE

  • Output Enable:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOJ

  • Package Equivalence Code:

    SOJ32,.34

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Parallel/Serial:

    PARALLEL

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    3.76 mm

  • Standby Current-Max:

    0.01 A

  • Standby Voltage-Min:

    4.5 V

  • Supply Current-Max:

    0.16 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    J BEND

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    7.62 mm

71024S12TYG8 Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note (APN) documents, which can be found on their website. The guide includes thermal vias, heat sink recommendations, and PCB layer stack-up suggestions to ensure optimal thermal performance.
  • Renesas recommends following the power sequencing guidelines outlined in their datasheet and application notes. Typically, this involves powering up the VCC pin first, followed by the VDD pin, and then the AVCC pin. The exact sequence may vary depending on the specific application and requirements.
  • Renesas recommends using high-quality, low-ESR decoupling capacitors with a value of 0.1 μF to 1 μF, placed as close as possible to the power pins. The exact capacitor value and type may vary depending on the specific application and operating frequency.
  • Renesas provides a JTAG interface for debugging and programming the 71024S12TYG8. Engineers can use a JTAG adapter or a development board with a built-in JTAG interface to connect to the device. Renesas also provides software tools and documentation for using the JTAG interface.
  • Renesas provides thermal design guidelines and thermal resistance values in their datasheet. Engineers should consider using heat sinks, thermal interfaces, and thermal vias to dissipate heat effectively. They should also ensure that the device is operated within the recommended temperature range to prevent thermal shutdown or damage.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

71024S12TYG8 Overview

Use the download button to access the 71024S12TYG8 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 71024, or try a keyword search, such as SRAMs
