71024S20TYGI8 - Renesas Electronics

Description: The 71024 5V CMOS SRAM is organized as 128K x 8. All bidirectional inputs and outputs of the 71024 are TTL-compatible, and operation is from a single 5V supply. Fully static asynchronous circuitry is used; no clocks or refreshes are required for operation.

Download 71024S20TYGI8 Model

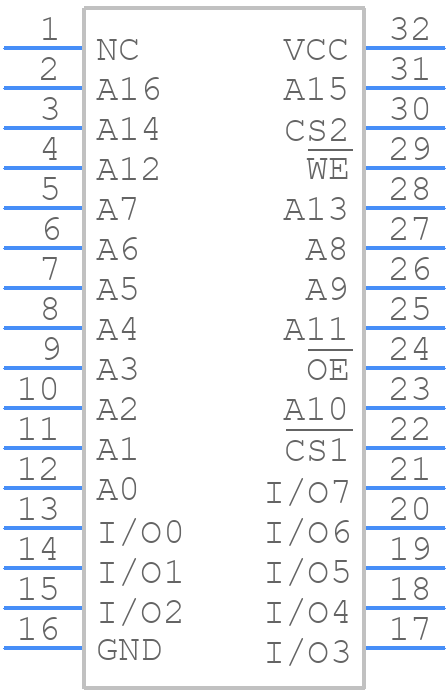

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
71024S20TYGI8 - Renesas Electronics PCB footprint - Other - Other - PJG32
click to zoom
3D Models
71024S20TYGI8 - Renesas Electronics  - 3D model - Other - PJG32
click to zoom

71024S20TYGI8 Details

  • Manufacturer Part Number:

    71024S20TYGI8

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOJ

  • Pin Count:

    32

  • Manufacturer Package Code:

    PJG32

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    3A991.b.2.b

  • HTS Code:

    8542.32.00.41

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    4

  • Access Time-Max:

    20 ns

  • I/O Type:

    COMMON

  • JESD-30 Code:

    R-PDSO-J32

  • JESD-609 Code:

    e3

  • Length:

    20.96 mm

  • Memory Density:

    1048576 bit

  • Memory IC Type:

    STANDARD SRAM

  • Memory Width:

    8

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Ports:

    1

  • Number of Terminals:

    32

  • Number of Words:

    131072 words

  • Number of Words Code:

    128000

  • Operating Mode:

    ASYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    128KX8

  • Output Characteristics:

    3-STATE

  • Output Enable:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOJ

  • Package Equivalence Code:

    SOJ32,.34

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Parallel/Serial:

    PARALLEL

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    3.76 mm

  • Standby Current-Max:

    0.01 A

  • Standby Voltage-Min:

    4.5 V

  • Supply Current-Max:

    0.14 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    J BEND

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    7.62 mm

71024S20TYGI8 Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note (APN) documents, which can be found on their website. The guide includes thermal vias, heat sink recommendations, and PCB layer stack-up suggestions to ensure optimal thermal performance.
  • Renesas recommends following the power sequencing guidelines outlined in the datasheet, which involves powering up the VCC and VCCIO pins in a specific order. Additionally, Renesas provides power sequencing diagrams and application notes that can be used as a reference.
  • Renesas recommends using high-frequency, low-ESR capacitors (e.g., 0.1uF, 1uF, or 10uF) with a voltage rating of at least 1.8V, placed as close as possible to the VCC and VCCIO pins. The exact capacitor values and placement can be found in the datasheet or application notes.
  • Renesas recommends following standard ESD protection guidelines, including using ESD-sensitive handling procedures, ESD-protected workstations, and ESD-protected packaging. Additionally, Renesas provides ESD protection circuitry recommendations in their application notes.
  • The thermal resistance values (RθJA and RθJC) can be found in the datasheet, typically in the 'Thermal Characteristics' or 'Package Information' section. These values are used to calculate the junction temperature and ensure the device operates within its recommended temperature range.
