71024S20YGI - Renesas Electronics

Description: The 71024 5V CMOS SRAM is organized as 128K x 8. All bidirectional inputs and outputs of the 71024 are TTL-compatible, and operation is from a single 5V supply. Fully static asynchronous circuitry is used; no clocks or refreshes are required for operation.

Download 71024S20YGI Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

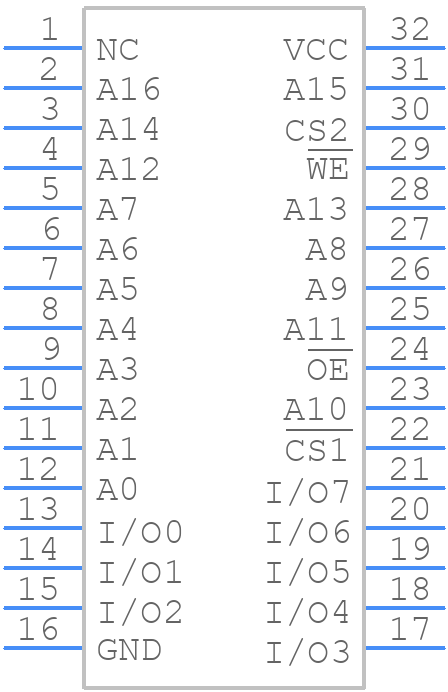

71024S20YGI - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
71024S20YGI - Renesas Electronics PCB footprint - Other - Other - PBG32
click to zoom
3D Models
71024S20YGI - Renesas Electronics - 3D model - Other - PBG32
click to zoom

71024S20YGI Details

  • Manufacturer Part Number:

    71024S20YGI

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOJ

  • Pin Count:

    32

  • Manufacturer Package Code:

    PBG32

  • ECCN Code:

    3A991.b.2.b

  • HTS Code:

    8542.32.00.41

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Access Time-Max:

    20 ns

  • I/O Type:

    COMMON

  • JESD-30 Code:

    R-PDSO-J32

  • JESD-609 Code:

    e3

  • Length:

    20.955 mm

  • Memory Density:

    1048576 bit

  • Memory IC Type:

    STANDARD SRAM

  • Memory Width:

    8

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Ports:

    1

  • Number of Terminals:

    32

  • Number of Words:

    131072 words

  • Number of Words Code:

    128000

  • Operating Mode:

    ASYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    128KX8

  • Output Characteristics:

    3-STATE

  • Output Enable:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOJ

  • Package Equivalence Code:

    SOJ32,.44

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Parallel/Serial:

    PARALLEL

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    3.683 mm

  • Standby Current-Max:

    0.01 A

  • Standby Voltage-Min:

    4.5 V

  • Supply Current-Max:

    0.14 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    J BEND

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    10.16 mm

71024S20YGI Frequently Asked Questions (FAQs)

  • A multi-layer PCB with a solid ground plane and thermal vias is recommended. Ensure a minimum of 1mm clearance around the package for airflow and heat dissipation. A thermal pad on the bottom of the package should be connected to a thermal plane or heat sink.
  • Use a shielded enclosure, keep signal lines short, and use decoupling capacitors. Ensure a common ground plane and use EMI filters or ferrite beads on I/O lines. Follow Renesas' application notes for specific guidance.
  • Follow the recommended power-up sequence: VCC, then VDD, then AVCC. Power-down sequence: AVCC, then VDD, then VCC. Ensure a minimum of 10ms delay between power-up and power-down sequences.
  • Use a latch-up prevention circuit, such as a voltage supervisor or power-on reset circuit. Ensure proper power sequencing, and use a slow ramp-up of power supplies to prevent voltage overshoot.
  • Operate within the recommended temperature range of -40°C to 125°C. Use a voltage supply of 1.14V to 1.26V, and ensure a clock frequency of 20MHz ±1%. Refer to the datasheet for specific operating conditions.
