71024S20YGI8 - Renesas Electronics

Description: The 71024 5V CMOS SRAM is organized as 128K x 8. All bidirectional inputs and outputs of the 71024 are TTL-compatible, and operation is from a single 5V supply. Fully static asynchronous circuitry is used; no clocks or refreshes are required for operation.

Download 71024S20YGI8 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

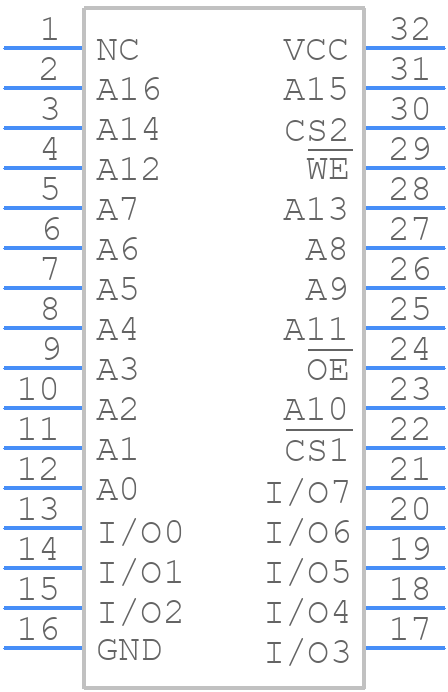

71024S20YGI8 - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
71024S20YGI8 - Renesas Electronics PCB footprint - Other - Other - PBG32
click to zoom
3D Models
71024S20YGI8 - Renesas Electronics - 3D model - Other - PBG32
click to zoom

71024S20YGI8 Details

  • Manufacturer Part Number:

    71024S20YGI8

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOJ

  • Pin Count:

    32

  • Manufacturer Package Code:

    PBG32

  • ECCN Code:

    3A991.b.2.b

  • HTS Code:

    8542.32.00.41

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Access Time-Max:

    20 ns

  • I/O Type:

    COMMON

  • JESD-30 Code:

    R-PDSO-J32

  • JESD-609 Code:

    e3

  • Length:

    20.955 mm

  • Memory Density:

    1048576 bit

  • Memory IC Type:

    STANDARD SRAM

  • Memory Width:

    8

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Ports:

    1

  • Number of Terminals:

    32

  • Number of Words:

    131072 words

  • Number of Words Code:

    128000

  • Operating Mode:

    ASYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    128KX8

  • Output Characteristics:

    3-STATE

  • Output Enable:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOJ

  • Package Equivalence Code:

    SOJ32,.44

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Parallel/Serial:

    PARALLEL

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    3.683 mm

  • Standby Current-Max:

    0.01 A

  • Standby Voltage-Min:

    4.5 V

  • Supply Current-Max:

    0.14 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    J BEND

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    10.16 mm

71024S20YGI8 Frequently Asked Questions (FAQs)

  • A multi-layer PCB with a solid ground plane and thermal vias is recommended. Ensure a minimum of 1mm clearance around the package for airflow and heat dissipation. A thermal pad on the bottom of the package should be connected to a thermal plane or a heat sink.
  • Use a shielded enclosure, keep signal lines short, and use decoupling capacitors. Implement a common-mode choke or ferrite bead on the power lines. Ensure a solid ground plane and use EMI-absorbing materials if necessary.
  • Power sequencing should follow the recommended sequence in the datasheet. Voltage ramp-up/ramp-down should be controlled to prevent inrush currents and voltage overshoots. A soft-start circuit or a voltage supervisor can be used to ensure a controlled power-up sequence.
  • Handle the device in an ESD-protected environment, using wrist straps, anti-static mats, and ESD-safe packaging. Store the device in its original packaging or an ESD-safe container, away from direct sunlight and moisture.
  • The 71024S20YGI8 is manufactured according to Renesas' quality and reliability standards, which comply with industry standards such as AEC-Q100 and IEC 60749. The device is also qualified according to the Automotive Electronics Council (AEC) guidelines.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

71024S20YGI8 Overview

Use the download button to access the 71024S20YGI8 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 71024, or try a keyword search, such as SRAMs
