71124S12YG8 - Renesas Electronics

Description: The 71124 5V CMOS SRAM is organized as 128K x 8. The JEDEC centerpower/GND pinout reduces noise generation and improves system performance. All bidirectional inputs and outputs of the 71124 are TTL-compatible and operation is from a single 5V supply. Fully static asynchronous circuitry is used; no clocks or refreshes are required for operation.

Download 71124S12YG8 Model

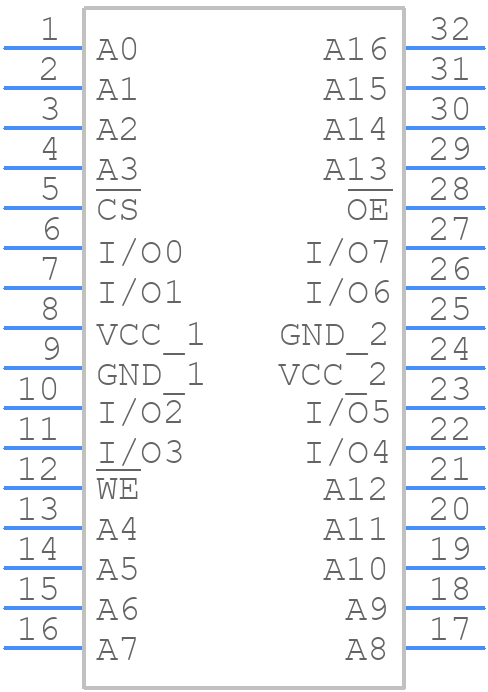

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
71124S12YG8 - Renesas Electronics PCB footprint - Other - Other - 71124S12YG8-2
click to zoom
3D Models
71124S12YG8 - Renesas Electronics  - 3D model - Other - 71124S12YG8-2
click to zoom

71124S12YG8 Details

  • Manufacturer Part Number:

    71124S12YG8

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOJ

  • Pin Count:

    32

  • Manufacturer Package Code:

    PBG32

  • ECCN Code:

    3A991.b.2.b

  • HTS Code:

    8542.32.00.41

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Access Time-Max:

    12 ns

  • I/O Type:

    COMMON

  • JESD-30 Code:

    R-PDSO-J32

  • JESD-609 Code:

    e3

  • Length:

    20.955 mm

  • Memory Density:

    1048576 bit

  • Memory IC Type:

    STANDARD SRAM

  • Memory Width:

    8

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Number of Words:

    131072 words

  • Number of Words Code:

    128000

  • Operating Mode:

    ASYNCHRONOUS

  • Operating Temperature-Max:

    70 °C

  • Organization:

    128KX8

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOJ

  • Package Equivalence Code:

    SOJ32,.44

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Parallel/Serial:

    PARALLEL

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    3.683 mm

  • Standby Current-Max:

    0.01 A

  • Standby Voltage-Min:

    4.5 V

  • Supply Current-Max:

    0.16 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    J BEND

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    10.16 mm

71124S12YG8 Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note (APN) documents, which can be found on their website. The guide includes thermal vias, heat sink recommendations, and PCB layer stack-up suggestions to ensure optimal thermal performance.
  • Renesas recommends using an external power sequencer or a dedicated power management IC (PMIC) to handle power sequencing. The 71124S12YG8 has a power-good signal that can be used to monitor the output voltage and control the power sequencing. Renesas also provides example schematics and application notes for power sequencing in their documentation.
  • While the datasheet specifies the recommended operating temperature range, the maximum operating temperature range is typically specified in the Reliability Report or the Quality and Reliability Handbook provided by Renesas. For the 71124S12YG8, the maximum operating temperature range is typically -40°C to 125°C.
  • Renesas provides guidelines for EMI and EMC in their application notes and design guides. These guidelines include recommendations for PCB layout, component selection, and shielding to minimize EMI and ensure EMC compliance. Additionally, Renesas offers EMI and EMC testing services to help customers ensure their designs meet regulatory requirements.
  • Renesas provides a recommended soldering profile in their Packaging and Assembly Guidelines document, which can be found on their website. The profile includes temperature and time recommendations for reflow soldering, wave soldering, and hand soldering to ensure reliable assembly and minimize defects.
