71256L70DB - Renesas Electronics

Description: The 71256 5V CMOS SRAM is organized as 32K x 8. The circuit also offers a reduced power standby mode for significant system level power and cooling savings. The low-power (L) version also offers a battery backup data retention capability allowing operation off a 2V battery. Fully static asynchronous circuitry is used; no clocks or refreshes are required for operation. Military grade product is available.

Download 71256L70DB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

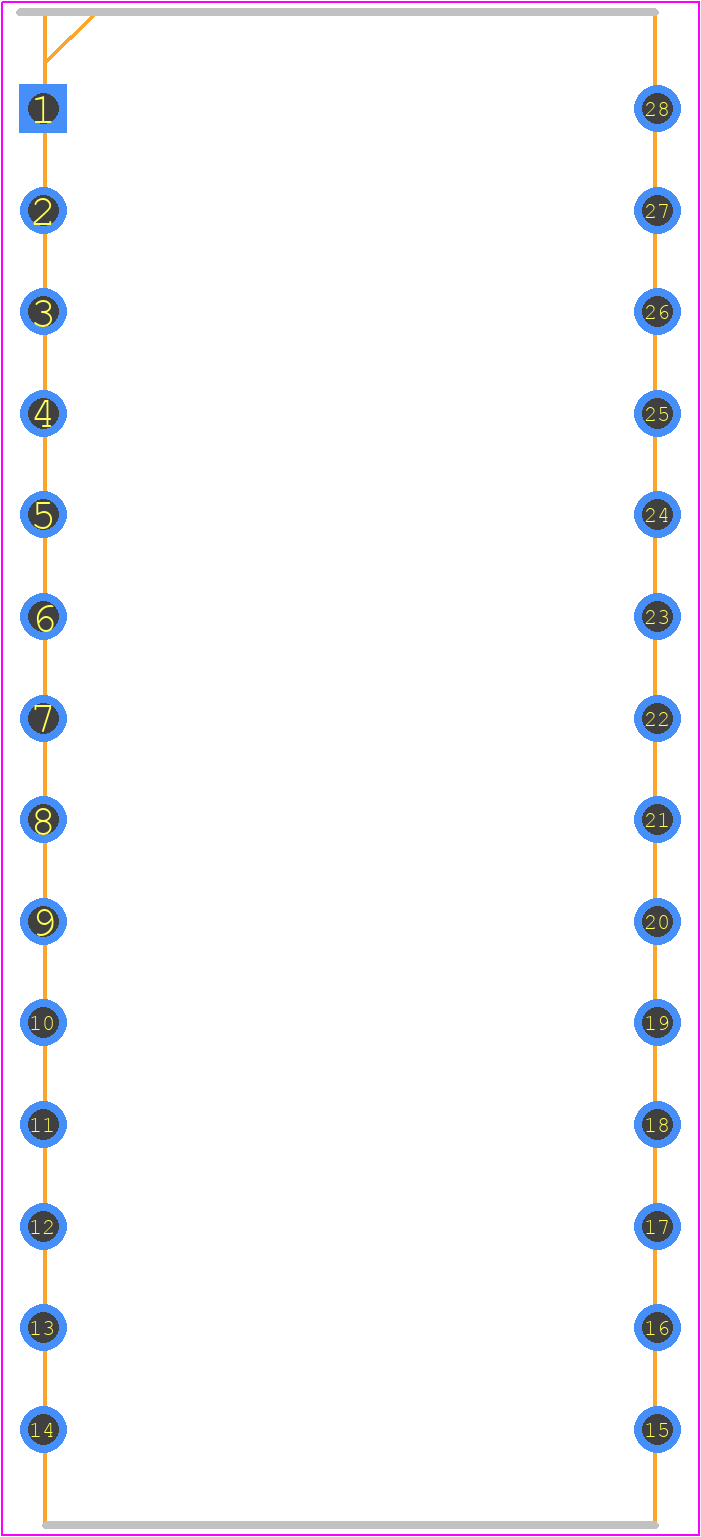

71256L70DB - Renesas Electronics PCB footprint - Ceramic Dual-In-Line Packages - Ceramic Dual-In-Line Packages - CD28-
click to zoom

71256L70DB Details

  • Manufacturer Part Number:

    71256L70DB

  • Brand Name:

    Renesas

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    CDIP

  • Pin Count:

    28

  • Manufacturer Package Code:

    CD28

  • ECCN Code:

    3A001.A.2.C

  • HTS Code:

    8542.32.00.41

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Access Time-Max:

    70 ns

  • I/O Type:

    COMMON

  • JESD-30 Code:

    R-CDIP-T28

  • JESD-609 Code:

    e0

  • Length:

    37.211 mm

  • Memory Density:

    262144 bit

  • Memory IC Type:

    STANDARD SRAM

  • Memory Width:

    8

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Number of Words:

    32768 words

  • Number of Words Code:

    32000

  • Operating Mode:

    ASYNCHRONOUS

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Organization:

    32KX8

  • Output Enable:

    YES

  • Package Body Material:

    CERAMIC, METAL-SEALED COFIRED

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP28,.6

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Parallel/Serial:

    PARALLEL

  • Peak Reflow Temperature (Cel):

    240

  • Screening Level:

    MIL-STD-883 Class B

  • Seated Height-Max:

    5.08 mm

  • Standby Current-Max:

    0.0015 A

  • Standby Voltage-Min:

    4.5 V

  • Supply Current-Max:

    0.115 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    TIN LEAD

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    15.24 mm

71256L70DB Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the 71256L70DB is -40°C to +125°C.
  • The POR sequence for the 71256L70DB involves applying power to the device, waiting for the internal voltage regulator to stabilize, and then releasing the reset signal. Refer to the datasheet for specific timing requirements.
  • The maximum clock frequency supported by the 71256L70DB is 70 MHz.
  • To configure the 71256L70DB for low-power operation, use the power management registers to control clock gating, voltage scaling, and sleep modes. Refer to the datasheet for specific register settings and programming guidelines.
  • The maximum current consumption of the 71256L70DB is approximately 150 mA at 1.8V and 70 MHz.
