Description:The 71256SA 5V CMOS SRAM is organized as 32K x 8. All bidirectional inputs and outputs of the 71256SA are TTL-compatible and operation is from a single 5V supply. Fully static asynchronous circuitry is used, requiring no clocks or refresh for operation.
Renesas provides a recommended PCB layout guide in their application note (APL-AN-1201) for thermal management. It suggests using a 4-layer PCB with a solid ground plane, placing thermal vias under the package, and using a heat sink with a thermal interface material.
Renesas recommends following the guidelines in their reliability handbook (Renesas Reliability Handbook, Rev. 2.00) for high-temperature operation. This includes derating the device, using a heat sink, and ensuring proper thermal management. Additionally, consider using a thermistor or thermal sensor to monitor the device temperature.
Renesas recommends using X7R or X5R ceramic capacitors with a voltage rating of 10V or higher for the input and output capacitors. The capacitance value should be between 4.7uF to 10uF, and the ESR should be less than 100mΩ. Refer to the datasheet for specific recommendations.
Renesas provides a troubleshooting guide in their application note (APL-AN-1202) for the POR circuitry. This includes checking the power supply voltage, ensuring proper decoupling, and verifying the POR timing. Additionally, use an oscilloscope to monitor the POR signal and verify it meets the specified timing requirements.
Renesas recommends following the guidelines in their EMC/EMI application note (APL-AN-1203) for designing a system that meets EMC/EMI standards. This includes using a shielded enclosure, minimizing loop areas, and using filtering and shielding components. Additionally, consider using a common-mode choke and a ferrite bead to reduce EMI.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
71256SA15PZGI Overview

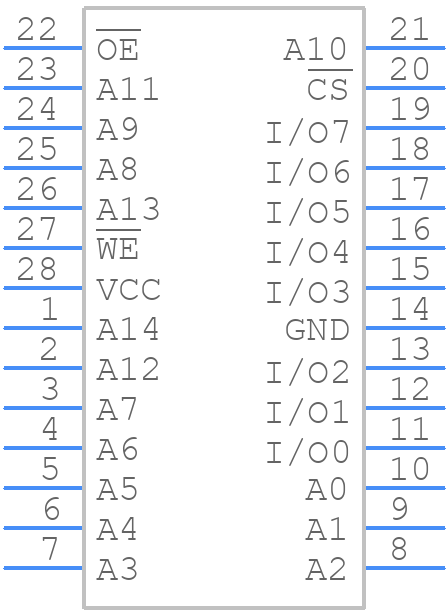

Use the download button to access the 71256SA15PZGI schematic symbol, PCB footprint, and 3D model.
