71256SA20PZGI - Renesas Electronics

Description: The 71256SA 5V CMOS SRAM is organized as 32K x 8. All bidirectional inputs and outputs of the 71256SA are TTL-compatible and operation is from a single 5V supply. Fully static asynchronous circuitry is used, requiring no clocks or refresh for operation.

Download 71256SA20PZGI Model

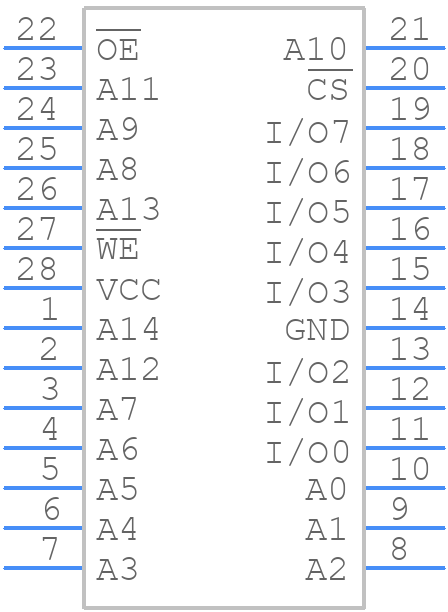

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
71256SA20PZGI - Renesas Electronics PCB footprint - Other - Other - PZG28_1
click to zoom
3D Models
71256SA20PZGI - Renesas Electronics  - 3D model - Other - PZG28_1
click to zoom

71256SA20PZGI Details

  • Manufacturer Part Number:

    71256SA20PZGI

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSOP

  • Package Description:

    TSOP1-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    PZG28

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.41

  • Date Of Intro:

    2020-06-29

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Access Time-Max:

    20 ns

  • I/O Type:

    COMMON

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    11.8 mm

  • Memory Density:

    262144 bit

  • Memory IC Type:

    STANDARD SRAM

  • Memory Width:

    8

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Ports:

    1

  • Number of Terminals:

    28

  • Number of Words:

    32768 words

  • Number of Words Code:

    32000

  • Operating Mode:

    ASYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    32KX8

  • Output Characteristics:

    3-STATE

  • Output Enable:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSOP1

  • Package Equivalence Code:

    TSSOP28,.53,22

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE

  • Parallel/Serial:

    PARALLEL

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Standby Current-Max:

    0.015 A

  • Standby Voltage-Min:

    4.5 V

  • Supply Current-Max:

    0.145 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.55 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    8 mm

71256SA20PZGI Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note (APL-AN-1201) for thermal management. It suggests using a 4-layer PCB with a solid ground plane, placing thermal vias under the package, and using a thermal pad on the bottom of the package.
  • Renesas recommends following the guidelines in their reliability handbook (Renesas Reliability Handbook, Rev. 2.00) for high-temperature operation. This includes derating the device, using a heat sink, and ensuring proper thermal management.
  • Renesas recommends using a ceramic capacitor with a capacitance of 10uF to 22uF, an ESR of < 1 ohm, and a voltage rating of 6.3V or higher for the input capacitor (CIN). The specific requirements may vary depending on the application and operating conditions.
  • Renesas suggests selecting an output capacitor (COUT) based on the output voltage, output current, and desired ripple voltage. A general guideline is to use a capacitor with a capacitance of 10uF to 47uF, an ESR of < 1 ohm, and a voltage rating of 2x the output voltage. The specific requirements may vary depending on the application and operating conditions.
  • Renesas provides guidelines for PCB assembly and soldering in their package assembly and soldering manual (Renesas Package Assembly and Soldering Manual, Rev. 2.00). This includes recommendations for soldering temperature, soldering time, and PCB cleaning.
