71256SA20TPG - Renesas Electronics

Description: The 71256SA 5V CMOS SRAM is organized as 32K x 8. All bidirectional inputs and outputs of the 71256SA are TTL-compatible and operation is from a single 5V supply. Fully static asynchronous circuitry is used, requiring no clocks or refresh for operation.

Download 71256SA20TPG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

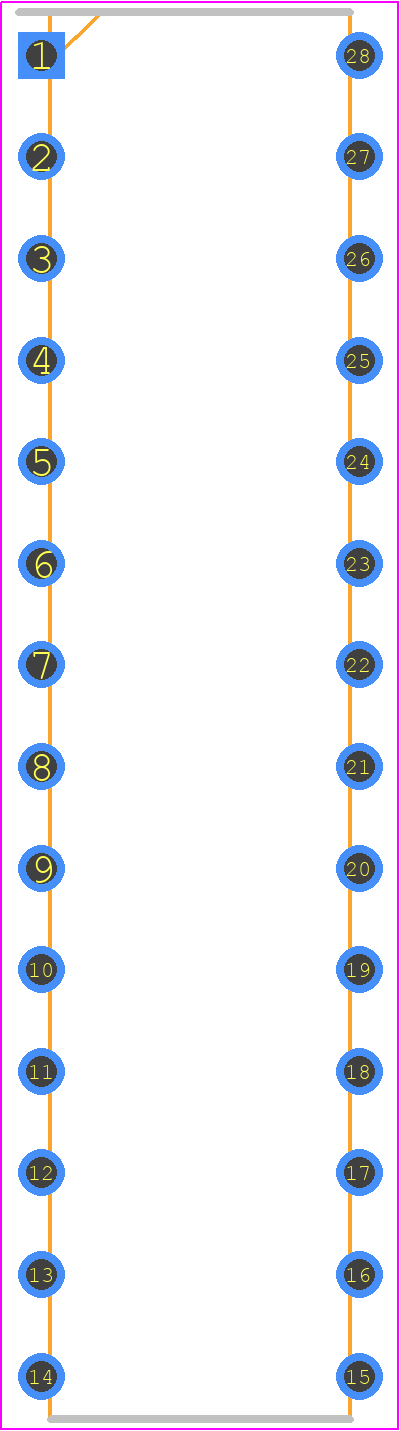

71256SA20TPG - Renesas Electronics PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 7164S20TPG
click to zoom
3D Models
71256SA20TPG - Renesas Electronics  - 3D model - Dual-In-Line Packages - 7164S20TPG
click to zoom

71256SA20TPG Details

  • Manufacturer Part Number:

    71256SA20TPG

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    PDIP

  • Package Description:

    DIP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    PTG28

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.41

  • Date Of Intro:

    2020-06-29

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Access Time-Max:

    20 ns

  • I/O Type:

    COMMON

  • JESD-30 Code:

    R-PDIP-T28

  • JESD-609 Code:

    e3

  • Length:

    34.671 mm

  • Memory Density:

    262144 bit

  • Memory IC Type:

    STANDARD SRAM

  • Memory Width:

    8

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Ports:

    1

  • Number of Terminals:

    28

  • Number of Words:

    32768 words

  • Number of Words Code:

    32000

  • Operating Mode:

    ASYNCHRONOUS

  • Operating Temperature-Max:

    70 °C

  • Organization:

    32KX8

  • Output Characteristics:

    3-STATE

  • Output Enable:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP28,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Parallel/Serial:

    PARALLEL

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    4.572 mm

  • Standby Current-Max:

    0.015 A

  • Standby Voltage-Min:

    4.5 V

  • Supply Current-Max:

    0.145 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

71256SA20TPG Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note (APL-AN-1201) which includes thermal design considerations, such as thermal vias, copper pours, and component placement, to ensure optimal thermal performance.
  • Renesas recommends a specific power sequencing scheme in their datasheet, which involves powering up the VCC and VCCIO pins simultaneously, followed by the VREF pin. A detailed power sequencing diagram is provided in the datasheet.
  • Renesas recommends using 0.1uF to 1uF decoupling capacitors with a voltage rating of 2.5V or higher, placed as close as possible to the VCC and VCCIO pins. The datasheet provides more information on decoupling capacitor selection and placement.
  • Renesas provides a JTAG troubleshooting guide in their application note (APL-AN-1202) which covers common issues, such as JTAG signal integrity, clock frequency, and voltage level issues. Additionally, Renesas recommends using their JTAG adapter (RTCK-001) for debugging and programming.
  • The 71256SA20TPG has an operating temperature range of -40°C to +125°C, as specified in the datasheet. However, it's essential to note that the device's performance and reliability may degrade at extreme temperatures.
