71256SA25TPG - Renesas Electronics

Description: The 71256SA 5V CMOS SRAM is organized as 32K x 8. All bidirectional inputs and outputs of the 71256SA are TTL-compatible and operation is from a single 5V supply. Fully static asynchronous circuitry is used, requiring no clocks or refresh for operation.

Download 71256SA25TPG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

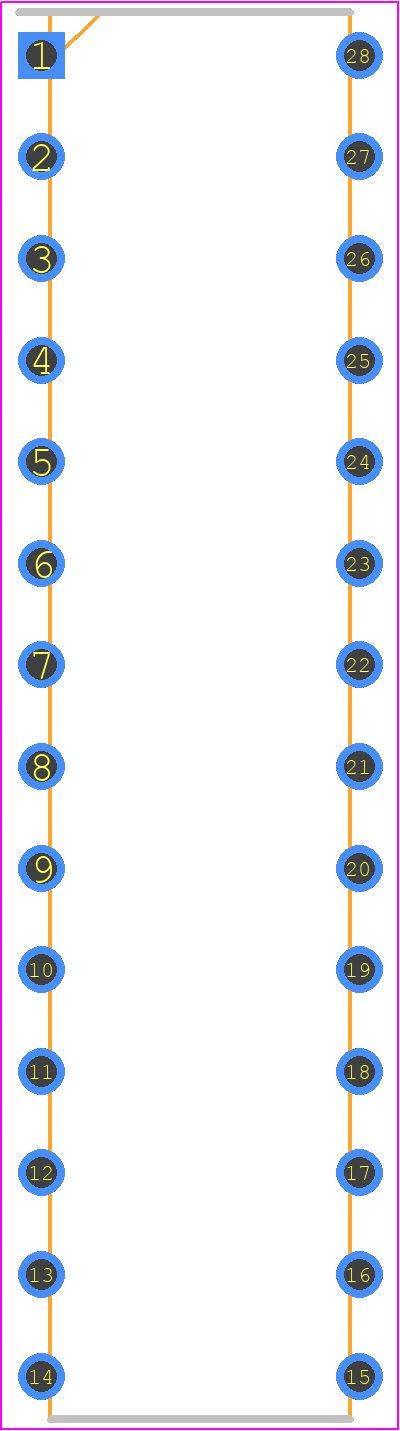

71256SA25TPG - Renesas Electronics PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 28-LEAD PDIP
click to zoom
3D Models
71256SA25TPG - Renesas Electronics  - 3D model - Dual-In-Line Packages - 28-LEAD PDIP
click to zoom

71256SA25TPG Details

  • Manufacturer Part Number:

    71256SA25TPG

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    PDIP

  • Package Description:

    DIP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    PTG28

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.41

  • Date Of Intro:

    2020-06-29

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Access Time-Max:

    25 ns

  • I/O Type:

    COMMON

  • JESD-30 Code:

    R-PDIP-T28

  • JESD-609 Code:

    e3

  • Length:

    34.671 mm

  • Memory Density:

    262144 bit

  • Memory IC Type:

    STANDARD SRAM

  • Memory Width:

    8

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Ports:

    1

  • Number of Terminals:

    28

  • Number of Words:

    32768 words

  • Number of Words Code:

    32000

  • Operating Mode:

    ASYNCHRONOUS

  • Operating Temperature-Max:

    70 °C

  • Organization:

    32KX8

  • Output Characteristics:

    3-STATE

  • Output Enable:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP28,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Parallel/Serial:

    PARALLEL

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    4.572 mm

  • Standby Current-Max:

    0.015 A

  • Standby Voltage-Min:

    4.5 V

  • Supply Current-Max:

    0.145 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

71256SA25TPG Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note (APN) documents, which can be found on their website. The guide includes thermal vias, heat sink recommendations, and PCB layer stack-up suggestions to ensure optimal thermal performance.
  • Renesas recommends a specific power sequencing scheme to ensure proper device operation. This information can be found in the device's user manual or application notes. Typically, the sequence involves powering up the VCCIO and VCC cores in a specific order, followed by the AVCC and DVCC supplies.
  • Renesas recommends using high-quality, low-ESR decoupling capacitors with a value of 0.1 μF to 1 μF, placed as close as possible to the device's power pins. The capacitor selection should be based on the device's operating frequency, power consumption, and PCB layout.
  • Renesas provides guidelines for JTAG interface handling during production testing in their device documentation. This includes information on JTAG pin connections, signal levels, and testing procedures to ensure reliable device programming and testing.
  • Renesas provides thermal design guidelines and thermal models (e.g., JEDEC JESD51-14) to help designers estimate the device's junction temperature. This information can be used to select suitable heat sinks, thermal interfaces, and PCB materials to ensure reliable operation in high-temperature environments.
