The recommended torque for the screw terminals is 0.6 Nm to 0.8 Nm (5.3 in-lbs to 7.1 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
Yes, the 713-1409 connector is designed to withstand high-vibration environments. WAGO's connectors are tested to meet the requirements of IEC 61373 Category 1, Class B, which includes vibration testing up to 10 g (98 m/s²) at 10-2000 Hz.
Yes, the 713-1409 connector is suitable for outdoor use. It has a rating of IP67, which means it is protected against dust ingress and can withstand immersion in water up to 1 meter (3.3 feet) for 30 minutes. However, it's essential to follow proper installation and sealing procedures to maintain the IP67 rating.
Yes, the 713-1409 connector is designed to accept stranded wire. However, it's essential to follow WAGO's recommended wire preparation and termination procedures to ensure reliable connections.
Yes, the 713-1409 connector is UL certified (UL 310) and meets the requirements of UL 1059 and UL 1977. It also complies with other international standards, such as IEC 60998 and EN 60998.
Trust Checks
This model has been approved by the manufacturer.
Manufacturer Approved
This model has been generated by a fully automated process.
Machine Generated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
713-1409 Overview

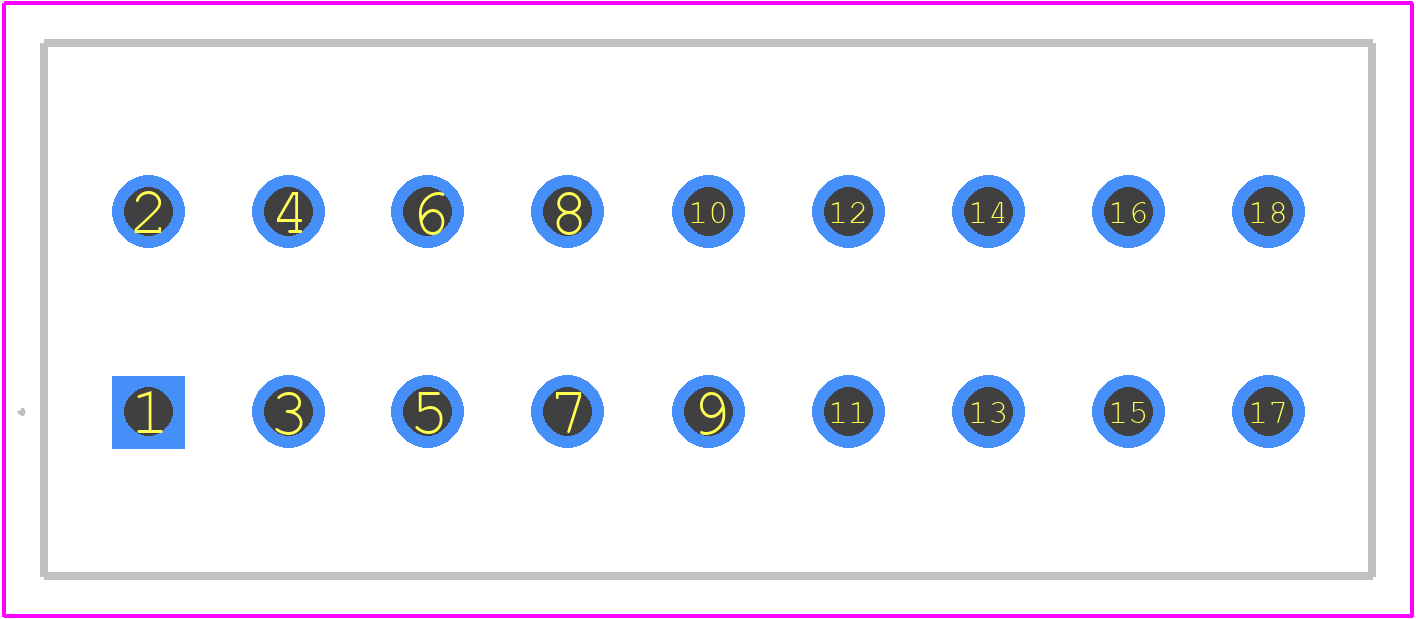

Use the download button to access the 713-1409 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 713-1,
or try a keyword search, such as Terminals and Terminal Blocks
