713-1430 - Wago

Description: THT male header, 2-row; 0.8 x 0.8 mm solder pin; angled; 100% protected against mismating; Pin spacing 3.5 mm; 20-pole

Download 713-1430 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

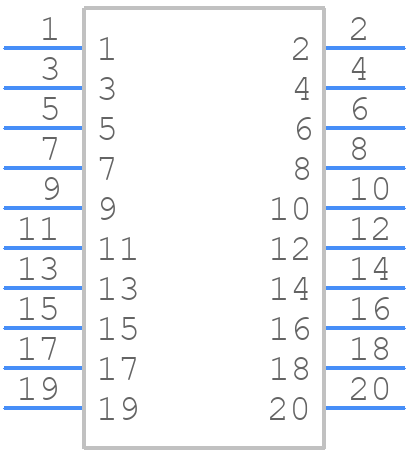

713-1430 - Wago - PCB symbol
click to zoom
PCB Footprints

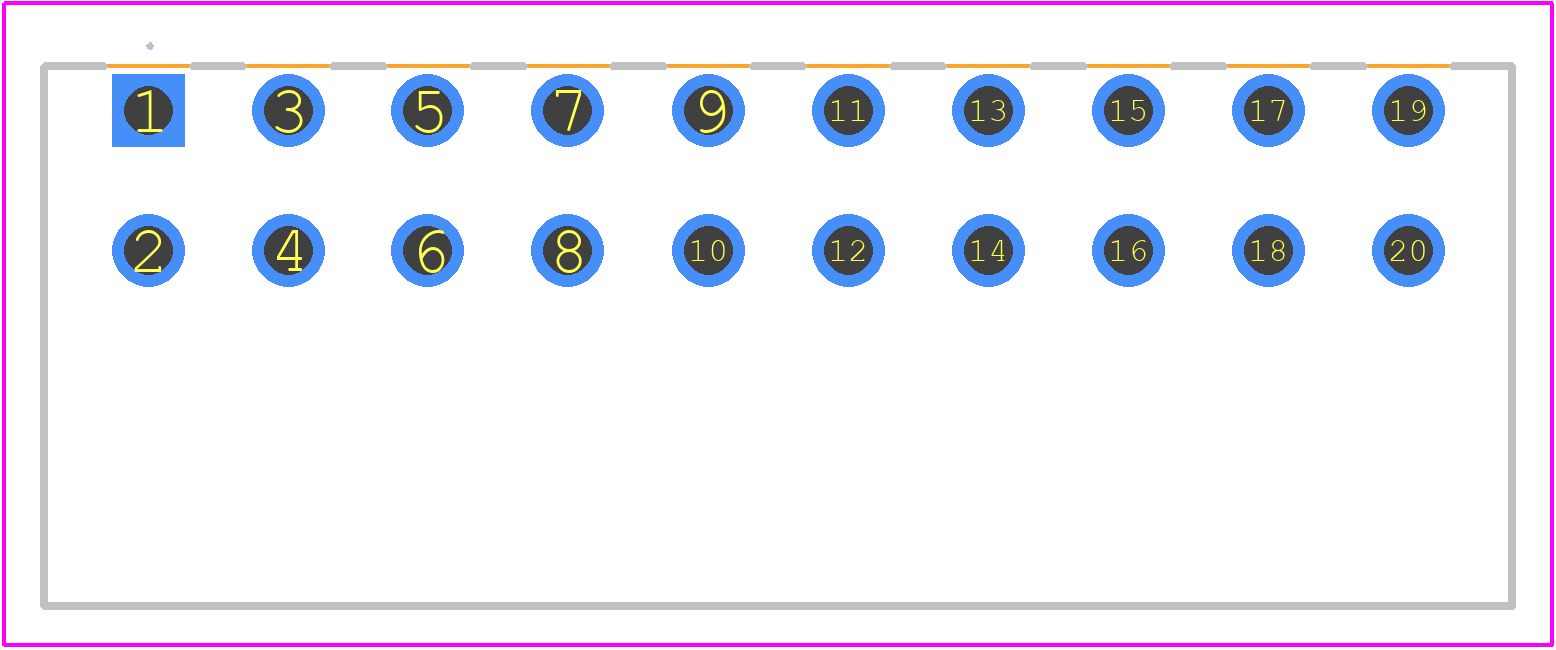

713-1430 - Wago PCB footprint - Other - Other - 713-1430-1
click to zoom
3D Models
713-1430 - Wago - 3D model - Other - 713-1430-1
click to zoom

713-1430 Details

  • Manufacturer Part Number:

    713-1430

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Poland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    WAGO Innovative Connections

  • YTEOL:

    7

  • Additional Feature:

    STANDARD: UL 94V-0

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    2

  • Number of Rows:

    2

  • Number of Ways:

    20

  • Rated Current:

    10 A

  • Rated Voltage:

    150 V

  • Safety Approval:

    CCA;CSA;EN;IEC;UL

  • Terminal Gender:

    MALE

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

713-1430 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw connections is 0.6 Nm to 1.2 Nm, depending on the wire size and type.
  • Yes, the 713-1430 connector is suitable for use with stranded wires, but make sure to follow the recommended wire preparation and termination procedures.
  • Yes, the 713-1430 connector is designed to withstand vibration and shock according to IEC 61373 and EN 50155 standards.
  • The 713-1430 connector is rated for operation in temperatures ranging from -40°C to 125°C and can withstand high humidity, but it's essential to follow the recommended installation and maintenance procedures to ensure reliable operation.
  • Yes, the 713-1430 connector meets the requirements of UL 486A and CSA 22.2 No. 198.1 standards for use in North American applications.

Trust Checks

This model has been approved by the manufacturer.
Manufacturer Approved
This model has been generated by a fully automated process.
Machine Generated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

713-1430 Overview

Use the download button to access the 713-1430 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 713-1, or try a keyword search, such as Terminals and Terminal Blocks
