Description:The ICS7152-11 is a clock generator for EMI (Electro Magnetic Interference) reduction (see datasheet for frequency ranges and multiplier ratios). Spectral peaks can be attenuated by slightly modulating the oscillation frequency. Both down and center spread profiles are selectable. Center spread maintains an average frequency equal to an unspread clock. Down spread meets maximum frequency specs over the entire modulation cycle.
A 4-layer PCB with a solid ground plane and thermal vias is recommended for optimal thermal performance. Ensure that the thermal pad is connected to the ground plane to dissipate heat efficiently.
To ensure reliable operation, follow the recommended operating conditions, and consider the device's thermal characteristics. Implement thermal management techniques, such as heat sinks or thermal interfaces, to maintain a safe junction temperature.
Critical timing parameters include clock frequency, setup/hold times, and signal rise/fall times. Ensure signal integrity by using controlled impedance traces, minimizing signal routing distances, and using signal termination techniques as needed.
Follow the recommended power-up and power-down sequences to prevent damage or malfunction. Ensure that the power supply voltage ramps up and down slowly (typically 1-10 ms) to prevent inrush currents and voltage overshoots.
Implement ESD protection measures, such as TVS diodes or ESD arrays, to protect the device from electrostatic discharge. Prevent latch-up by following proper PCB design guidelines, using guard rings, and minimizing substrate coupling.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
7152MI-11LF Overview

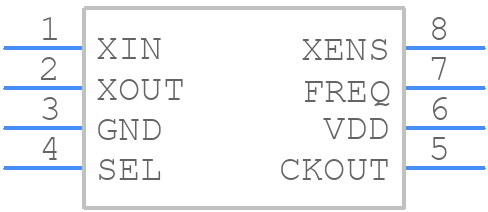

Use the download button to access the 7152MI-11LF schematic symbol, PCB footprint, and 3D model.
