715P10456LD3 - Cornell Dubilier

Description: Cornell-Dubilier 100nF Polypropylene Capacitor PP 200 V ac, 600 V dc ±5% Tolerance 715P Series , 300gf , -40°C ~ 160°C , 600V

Download 715P10456LD3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
715P10456LD3 - Cornell Dubilier - PCB symbol
click to zoom
PCB Footprints

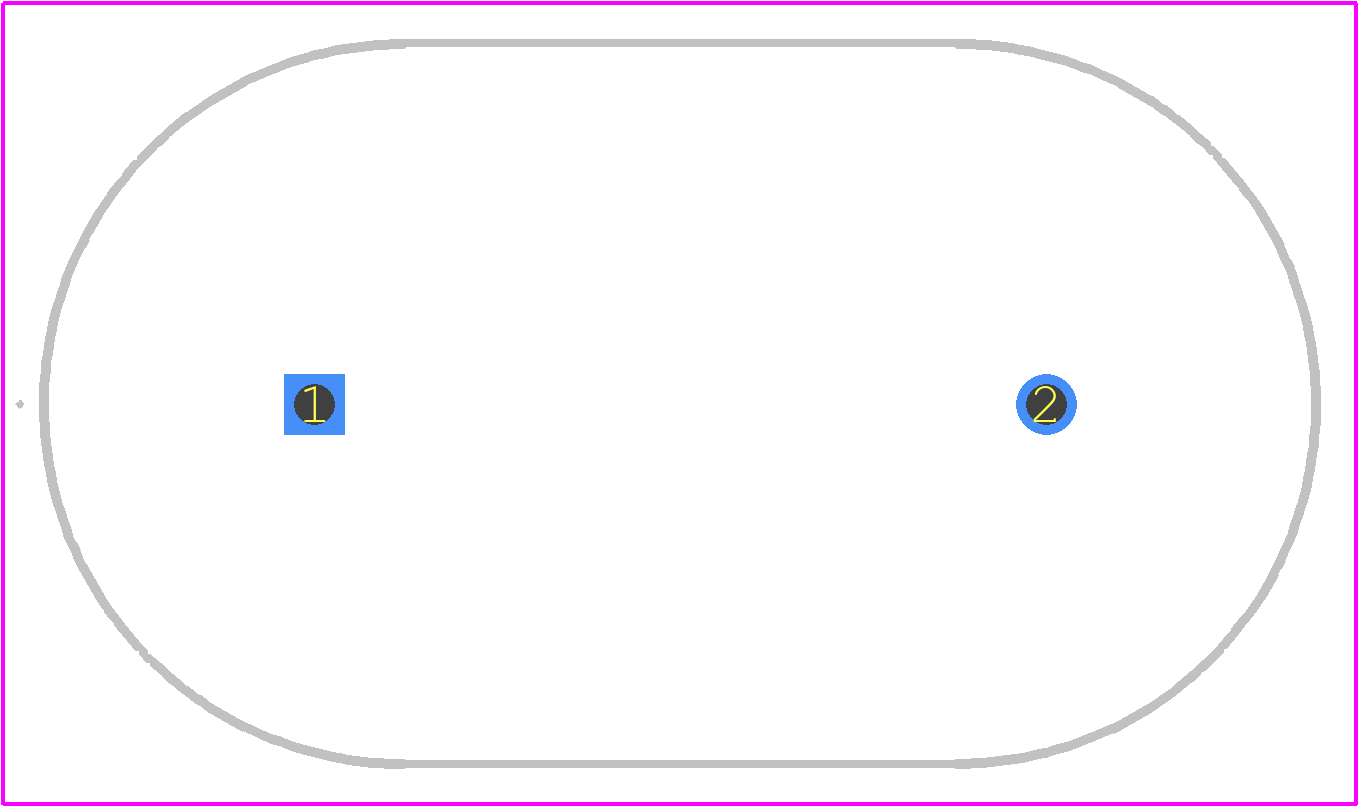

715P10456LD3 - Cornell Dubilier PCB footprint - Other - Other - 715P10456LD3-6
click to zoom
3D Models
715P10456LD3 - Cornell Dubilier - 3D model - Other - 715P10456LD3-6
click to zoom

715P10456LD3 Details

  • Manufacturer Part Number:

    715P10456LD3

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.25.00.70

  • Manufacturer:

    Knowles CDE

  • YTEOL:

    6.93

  • Capacitance:

    0.1 µF

  • Capacitor Type:

    FILM CAPACITOR

  • Diameter:

    18 mm

  • Dielectric Material:

    POLYPROPYLENE

  • JESD-609 Code:

    e3

  • Length:

    31.8 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    5%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Style:

    Radial

  • Positive Tolerance:

    5%

  • Rated (AC) Voltage (URac):

    200 V

  • Rated (DC) Voltage (URdc):

    600 V

  • Surface Mount:

    NO

  • Terminal Finish:

    Tin (Sn)

  • Terminal Pitch:

    18.3 mm

  • Terminal Shape:

    WIRE
