715P22456MD3 - Cornell Dubilier

Description: Cornell-Dubilier 715P 220nF Polypropylene Film Capacitor 200 V ac, 600 V dc ±5%

Download 715P22456MD3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
715P22456MD3 - Cornell Dubilier - PCB symbol
click to zoom
PCB Footprints

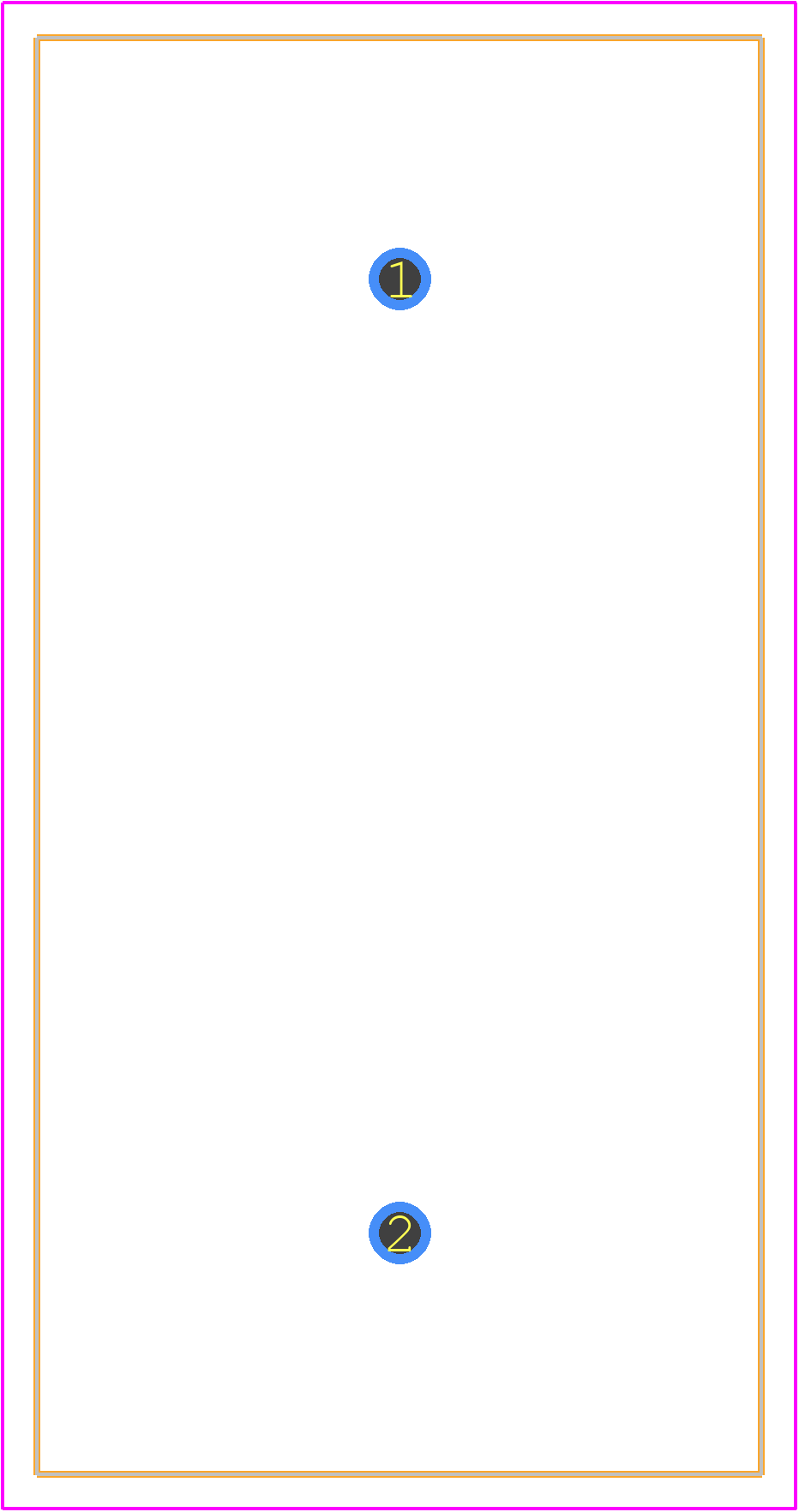

715P22456MD3 - Cornell Dubilier PCB footprint - Other - Other - 715P22456MD3-3
click to zoom
3D Models
715P22456MD3 - Cornell Dubilier - 3D model - Other - 715P22456MD3-3
click to zoom

715P22456MD3 Details

  • Manufacturer Part Number:

    715P22456MD3

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.25.00.70

  • Manufacturer:

    Knowles CDE

  • YTEOL:

    7.18

  • Capacitance:

    0.22 µF

  • Capacitor Type:

    FILM CAPACITOR

  • Diameter:

    21.1 mm

  • Dielectric Material:

    POLYPROPYLENE

  • JESD-609 Code:

    e3

  • Length:

    41.9 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    5%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Style:

    Radial

  • Positive Tolerance:

    5%

  • Rated (AC) Voltage (URac):

    200 V

  • Rated (DC) Voltage (URdc):

    600 V

  • Surface Mount:

    NO

  • Terminal Finish:

    Tin (Sn)

  • Terminal Pitch:

    27.8 mm

  • Terminal Shape:

    WIRE
