The recommended soldering temperature is 260°C (500°F) with a maximum soldering time of 3 seconds. It's essential to follow the manufacturer's soldering guidelines to prevent damage to the component.
The 715P68358MD3 is a radial lead capacitor, which is suitable for moderate vibration environments. However, for high-vibration applications, it's recommended to consider a capacitor with a more robust design, such as a screw-terminal or axial lead type. Consult with the manufacturer or a qualified engineer for specific guidance.
The ESR of the 715P68358MD3 is not explicitly stated in the datasheet. However, according to Cornell Dubilier Electronics Inc., the typical ESR for this capacitor is around 0.02 ohms at 100 kHz. For more accurate information, contact the manufacturer or request an ESR curve.
The 715P68358MD3 has a maximum operating temperature of 125°C (257°F). While it can tolerate high temperatures, it's essential to derate the capacitor's voltage and current ratings according to the manufacturer's guidelines to ensure reliable operation.
The 715P68358MD3 is a general-purpose capacitor, and its suitability for use in a DC-DC converter or switching power supply depends on the specific application requirements. It's recommended to consult with the manufacturer or a qualified engineer to ensure the capacitor meets the necessary ripple current, voltage, and ESR requirements.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
715P68358MD3 Overview

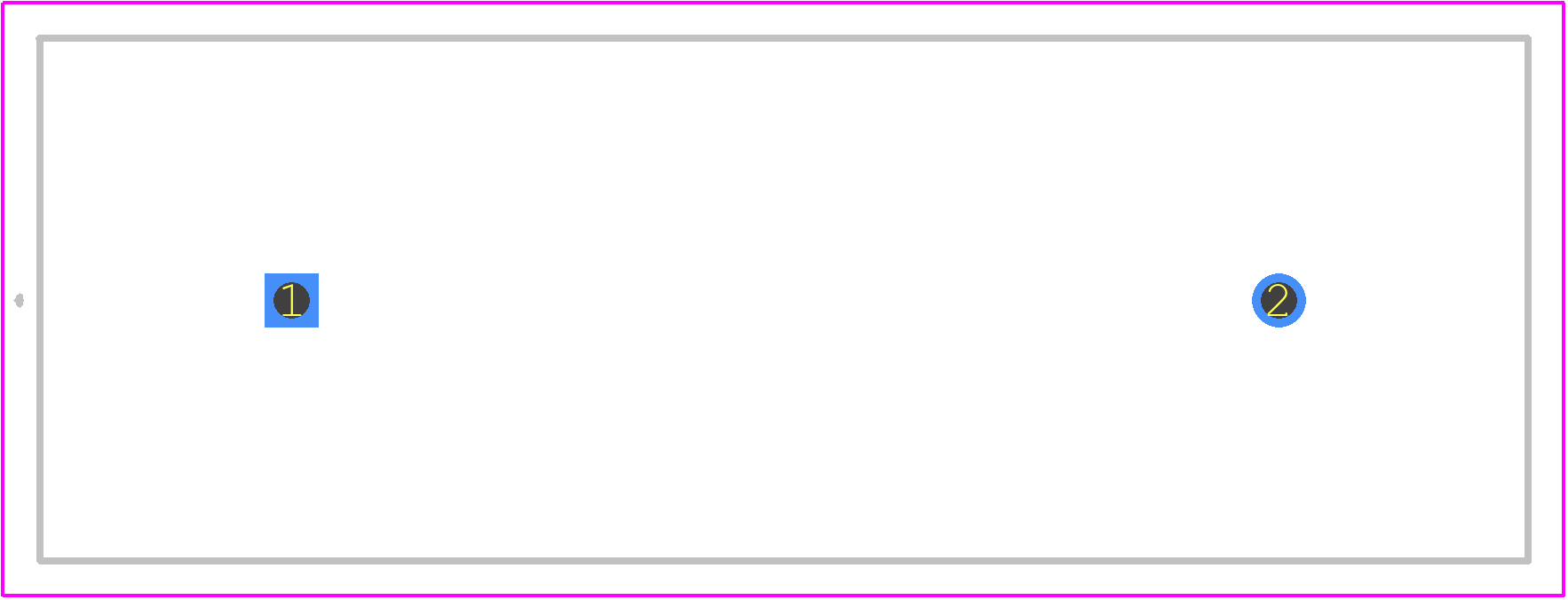

Use the download button to access the 715P68358MD3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 715P6,
or try a keyword search, such as Film Capacitors
