7164L55DB - Renesas Electronics

Description: The 7164 5V CMOS SRAM is organized as 8K x 8. The 7164 offers a reduced power standby mode. The low-power (L) version also offers a battery backup data retention capability at power supply levels as low as 2V. All inputs and outputs of the IDT7164 are TTL-compatible and operation is from a single 5V supply, simplifying system designs. Fully static asynchronous circuitry is used, requiring no clocks or refreshing for operation. Military grade product is available.

Download 7164L55DB Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this 7164L55DB model

Email notifications will be applied after download.

Send part feedback

Symbol

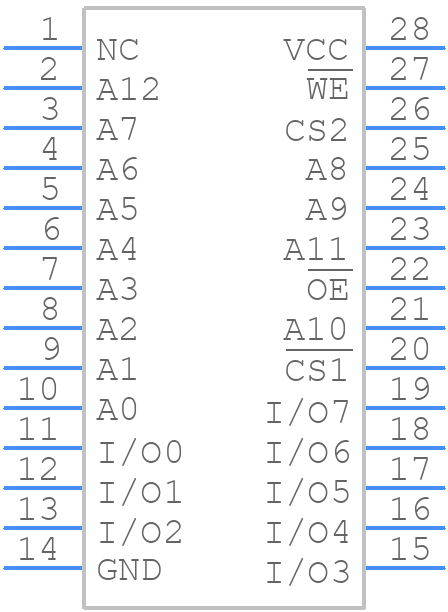

7164L55DB - Renesas Electronics - PCB symbol

PCB Footprints

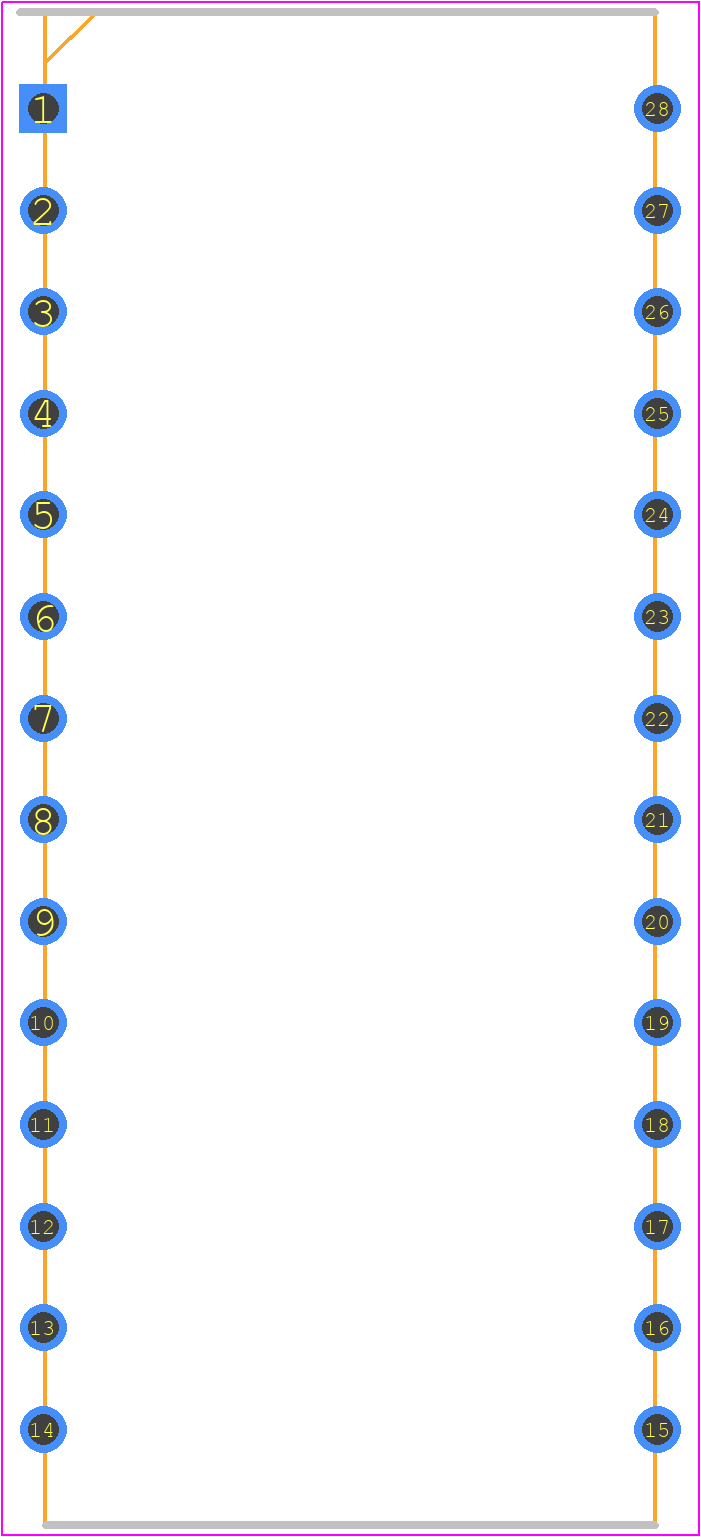

7164L55DB - Renesas Electronics PCB footprint - Ceramic Dual-In-Line Packages - Ceramic Dual-In-Line Packages - CD28-

Datasheet Download Datasheet
Stock & Prices Price & Stock for 7164L55DB
Part Number 7164L55DB
Manufacturer Renesas Electronics
Pin Count 28
Part Category Integrated Circuit
Package Category Ceramic Dual-In-Line Packages
Footprint Name Ceramic Dual-In-Line Packages - CD28-
Released Date Feb 12, 2020
Last Modified Date Oct 24, 2023 7:30 PM UTC
Pinout / Pin List Click Here (Member Only)

7164L55DB Details

Manufacturer Part Number:
7164L55DB
Manufacturer:
Renesas Electronics Corporation

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

7164L55DB Overview

Use the download button to access the 7164L55DB schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like 7164L, or try a keyword search, such as SRAMs
