7164S55DB - Renesas Electronics

Description: The 7164 5V CMOS SRAM is organized as 8K x 8. The 7164 offers a reduced power standby mode. The low-power (L) version also offers a battery backup data retention capability at power supply levels as low as 2V. All inputs and outputs of the IDT7164 are TTL-compatible and operation is from a single 5V supply, simplifying system designs. Fully static asynchronous circuitry is used, requiring no clocks or refreshing for operation. Military grade product is available.

Download 7164S55DB Model

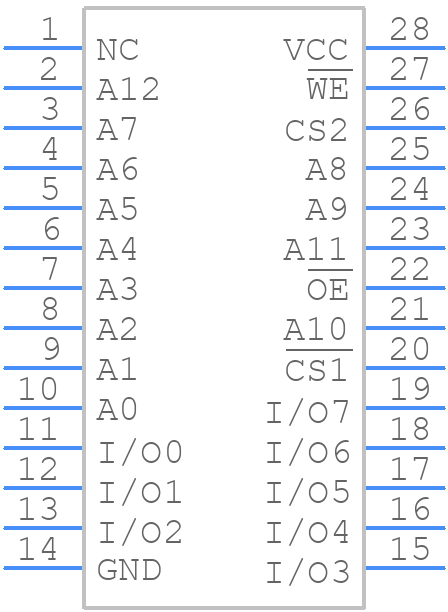

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

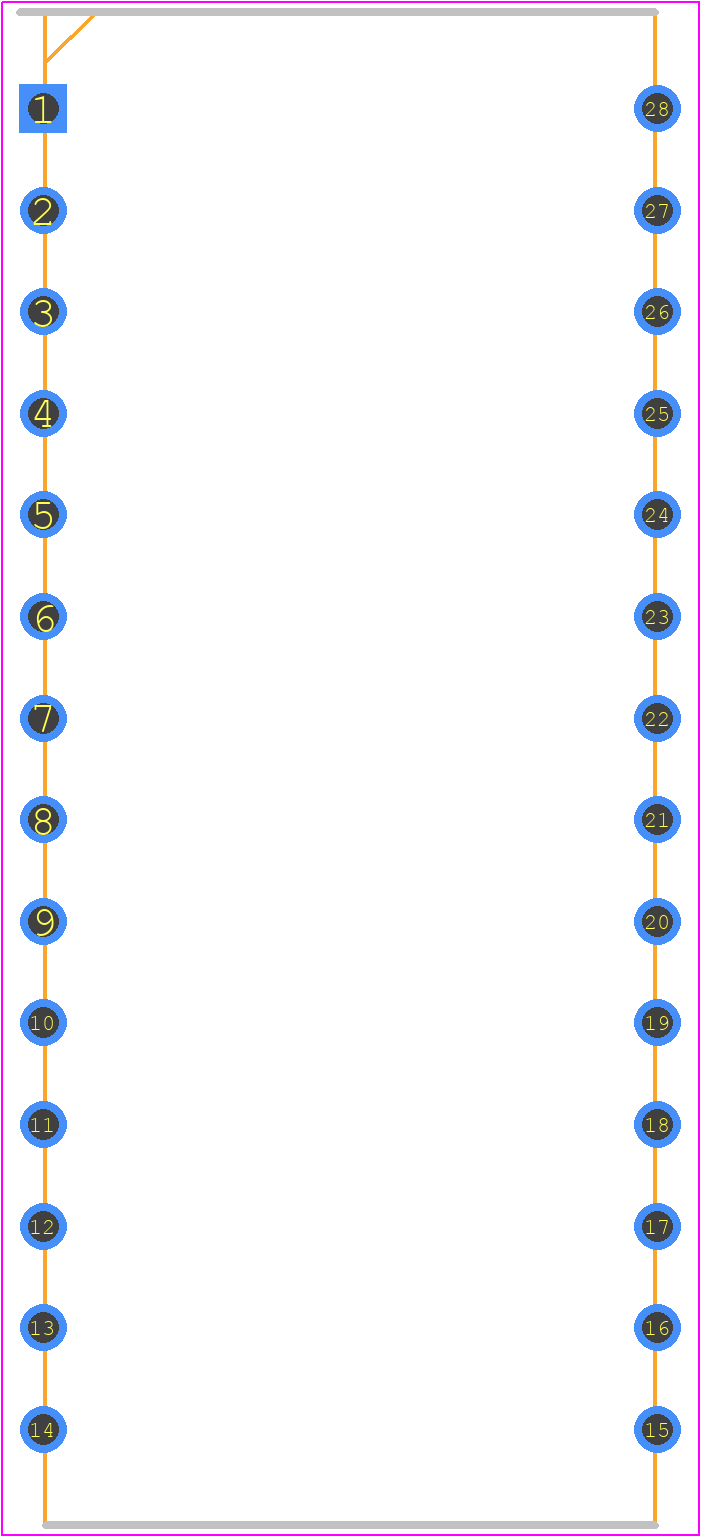

7164S55DB - Renesas Electronics PCB footprint - Ceramic Dual-In-Line Packages - Ceramic Dual-In-Line Packages - CD28-
click to zoom

7164S55DB Details

  • Manufacturer Part Number:

    7164S55DB

  • Brand Name:

    Renesas

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    CDIP

  • Package Description:

    DIP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    CD28

  • ECCN Code:

    3A001.A.2.C

  • HTS Code:

    8542.32.00.41

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Access Time-Max:

    55 ns

  • I/O Type:

    COMMON

  • JESD-30 Code:

    R-CDIP-T28

  • JESD-609 Code:

    e0

  • Memory Density:

    65536 bit

  • Memory IC Type:

    STANDARD SRAM

  • Memory Width:

    8

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Number of Words:

    8192 words

  • Number of Words Code:

    8000

  • Operating Mode:

    ASYNCHRONOUS

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Organization:

    8KX8

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    CERAMIC, METAL-SEALED COFIRED

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP28,.6

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Parallel/Serial:

    PARALLEL

  • Peak Reflow Temperature (Cel):

    240

  • Qualification Status:

    Not Qualified

  • Screening Level:

    MIL-STD-883 Class B

  • Standby Current-Max:

    0.02 A

  • Standby Voltage-Min:

    4.5 V

  • Supply Current-Max:

    0.16 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Tin/Lead (Sn63Pb37)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

7164S55DB Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note (APN) documents, which includes thermal design considerations, such as thermal vias, copper pours, and component placement. It's essential to follow these guidelines to ensure optimal thermal performance and prevent overheating.
  • Renesas recommends a specific power sequencing scheme to ensure proper device operation. This typically involves powering up the VCC pin first, followed by the VDD pin, and then the AVCC pin. The datasheet provides a detailed power-up sequence diagram, and additional information can be found in the application notes.
  • Renesas recommends implementing EMI and ESD protection measures, such as using shielding, filtering, and TVS diodes, to ensure the device operates reliably in noisy environments. Additionally, following proper PCB design and layout practices, such as minimizing trace lengths and using ground planes, can help reduce EMI and ESD susceptibility.
  • Renesas provides a troubleshooting guide in their application notes, which includes steps to identify and resolve common issues. This may involve checking the power supply, clock signals, and reset pins, as well as using debugging tools, such as oscilloscopes and logic analyzers, to identify the root cause of the problem.
  • Renesas provides thermal derating information in the datasheet, which indicates the maximum operating temperature and power dissipation limits. Engineers should consider these derating factors when designing their system to ensure the device operates within its specified temperature range and power dissipation limits.
