71AF36-02A10N - Grayhill

Description: Switch Rotary SP10T 10 Flatted Shaft PC Pins 0.3A 115VAC 30VDC

Download 71AF36-02A10N Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this 71AF36-02A10N model

Email notifications will be applied after download.

Send part feedback

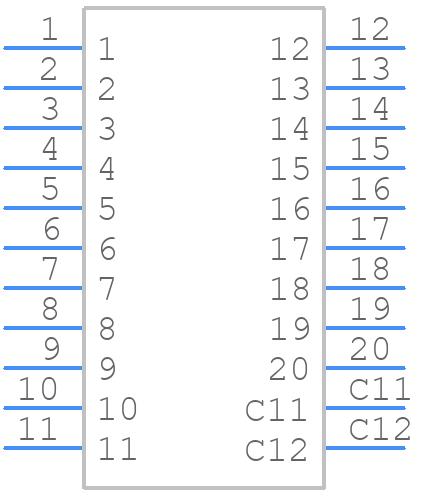

Symbol

71AF36-02A10N - Grayhill - PCB symbol

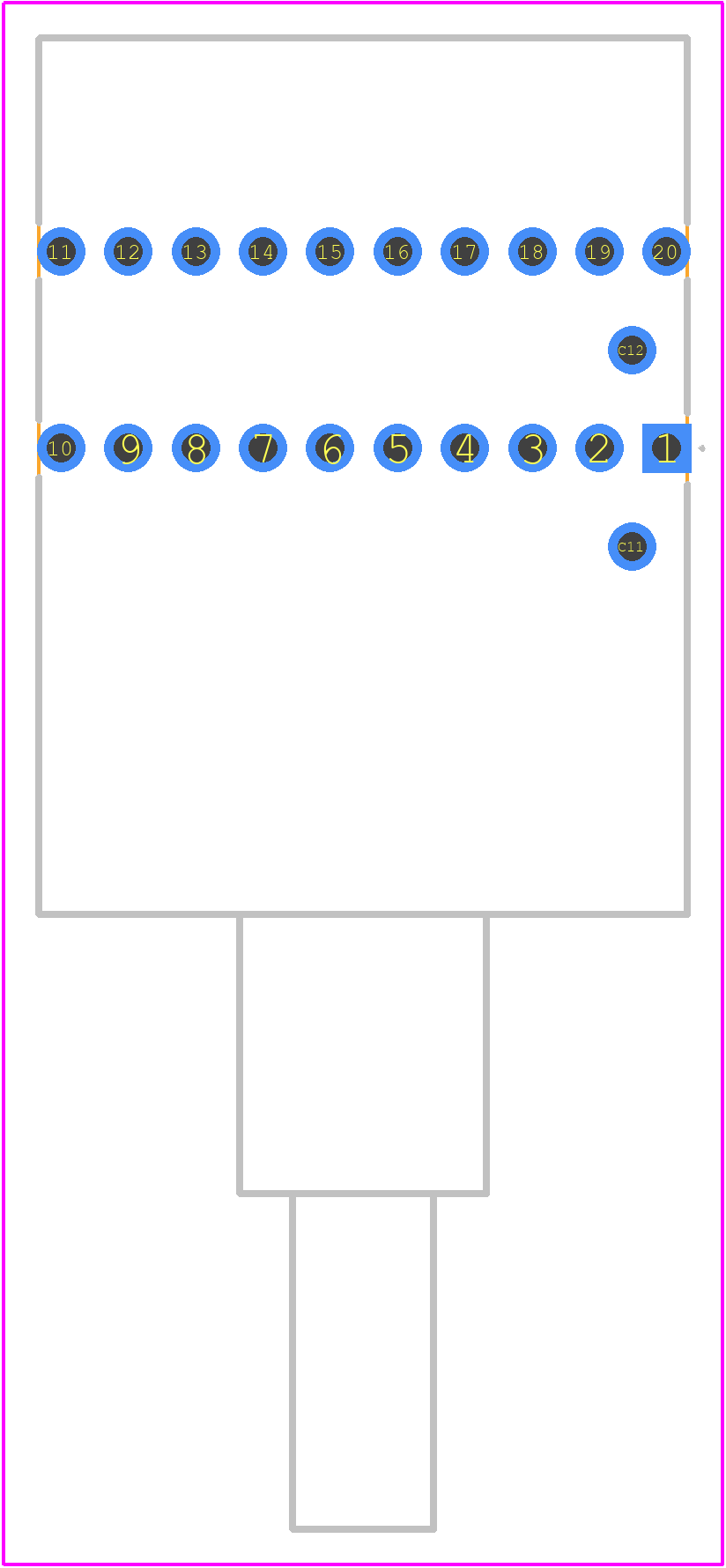

PCB Footprints

71AF36-02A10N - Grayhill PCB footprint - Other - Other - 71AF36-02A10N-3

Datasheet Download Datasheet
Stock & Prices Price & Stock for 71AF36-02A10N
Part Number 71AF36-02A10N
Manufacturer Grayhill
Pin Count 22
Part Category Switch
Package Category Other
Footprint Name Other - 71AF36-02A10N-3
Released Date Jan 17, 2023
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

71AF36-02A10N Details

Manufacturer Part Number:
71AF36-02A10N
Manufacturer:
Grayhill Inc

Trust Checks

Community Provided

System Verified

Community Approved

71AF36-02A10N Overview

Use the download button to access the 71AF36-02A10N schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like 71AF3, or try a keyword search, such as Rotary Switches
