The recommended torque value is typically between 0.5 to 1.5 Nm (5-15 in-lbs), but it's best to consult the Rosenberger application notes or contact their technical support for specific guidance.
Yes, the 71K101-400A5 is designed to meet the requirements of high-reliability applications, including those with high vibration and harsh environments. However, it's essential to follow Rosenberger's guidelines for installation, mating, and sealing to ensure optimal performance.
The 71K101-400A5 is rated for operation in temperatures ranging from -40°C to +125°C (-40°F to +257°F). However, it's crucial to consider the specific application and environmental conditions to ensure the connector meets the required performance and reliability standards.
Yes, the 71K101-400A5 is designed for high-frequency applications, including high-speed data transmission. It has a bandwidth of up to 40 GHz, making it suitable for high-speed digital and analog signal transmission.
Yes, the 71K101-400A5 is compatible with both flexible and semi-rigid cables. However, it's essential to ensure the cable meets the connector's mechanical and electrical requirements, and to follow Rosenberger's guidelines for cable preparation and assembly.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
71K101-400A5 Overview

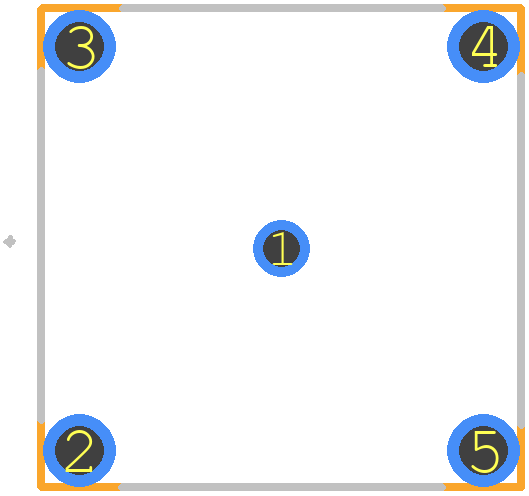

Use the download button to access the 71K101-400A5 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 71K10,
or try a keyword search, such as RF BNC Connectors
