71MAF36-03B09S - Grayhill

Description: Rotary Switch, Military, 1/8" shaft, PC mount, 36°, 3 deck, 1 pole/deck, 9 position/pole, shorting, 71MAF36-03B09S

Download 71MAF36-03B09S Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this 71MAF36-03B09S model

Email notifications will be applied after download.

Send part feedback

Symbol

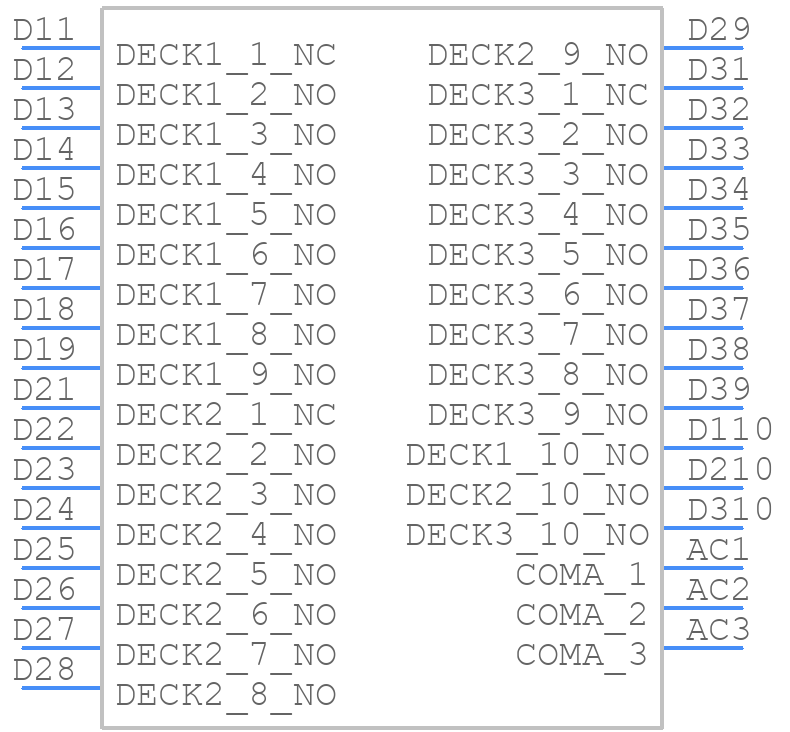

71MAF36-03B09S - Grayhill - PCB symbol

PCB Footprints

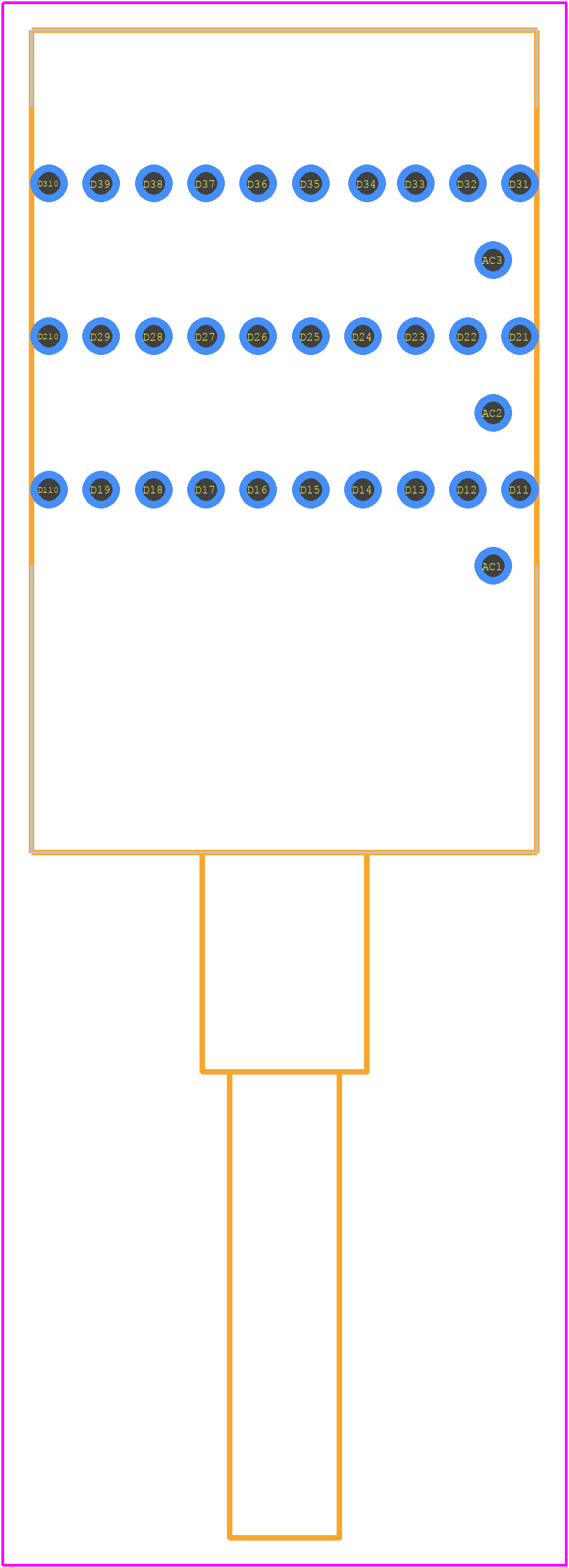

71MAF36-03B09S - Grayhill PCB footprint - Other - Other - 71MAF36-03B09S

Datasheet Download Datasheet
Stock & Prices Price & Stock for 71MAF36-03B09S
Part Number 71MAF36-03B09S
Manufacturer Grayhill
Pin Count 33
Part Category Switch
Package Category Other
Footprint Name Other - 71MAF36-03B09S
Released Date Mar 28, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

71MAF36-03B09S Details

Manufacturer Part Number:
71MAF36-03B09S
Manufacturer:
Grayhill Inc

Trust Checks

Expert Contribution

System Verified

Community Approved

71MAF36-03B09S Overview

Use the download button to access the 71MAF36-03B09S schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like 71MAF, or try a keyword search, such as Rotary Switches
