71V016SA12PHGI8 - Renesas Electronics

Description: The 71V016 3.3V CMOS SRAM is organized as 64K x 16. All bidirectional inputs and outputs of the 71V016 are LVTTL-compatible and operation is from a single 3.3V supply. Fully static asynchronous circuitry is used, requiring no clocks or refresh for operation.

Download 71V016SA12PHGI8 Model
Schematic

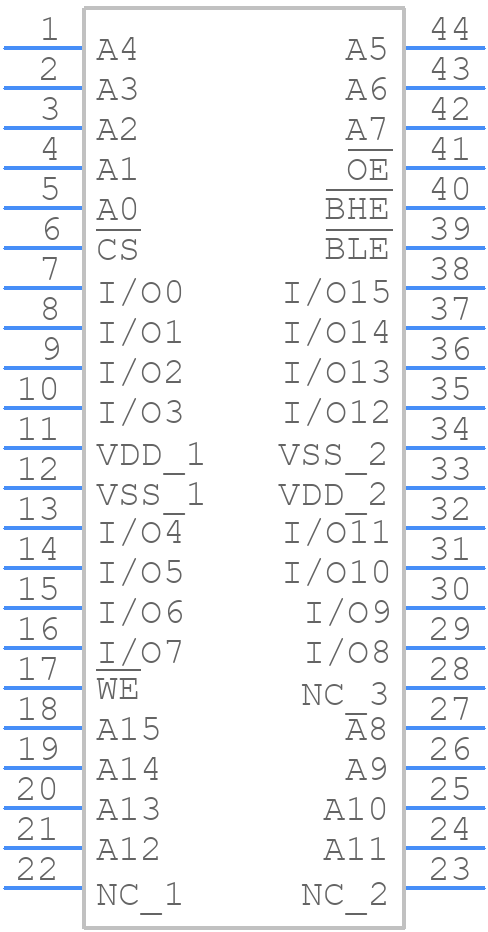

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

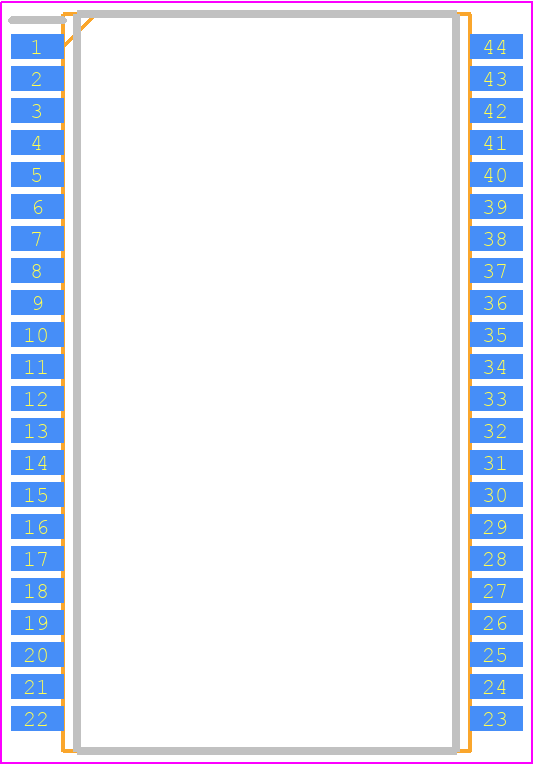

71V016SA12PHGI8 - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - PHG44
click to zoom
3D Models
71V016SA12PHGI8 - Renesas Electronics  - 3D model - Small Outline Packages - PHG44
click to zoom

71V016SA12PHGI8 Details

  • Manufacturer Part Number:

    71V016SA12PHGI8

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSOP

  • Pin Count:

    44

  • Manufacturer Package Code:

    PHG44

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.41

  • Factory Lead Time:

    18 Weeks

  • Date Of Intro:

    2020-06-25

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    4

  • Access Time-Max:

    12 ns

  • I/O Type:

    COMMON

  • JESD-30 Code:

    R-PDSO-G44

  • JESD-609 Code:

    e3

  • Length:

    18.41 mm

  • Memory Density:

    262144 bit

  • Memory IC Type:

    STANDARD SRAM

  • Memory Width:

    16

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    44

  • Number of Words:

    16384 words

  • Number of Words Code:

    16000

  • Operating Mode:

    ASYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    64KX16

  • Output Enable:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSOP2

  • Package Equivalence Code:

    TSOP44,.46,32

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE

  • Parallel/Serial:

    PARALLEL

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Standby Current-Max:

    0.01 A

  • Standby Voltage-Min:

    3 V

  • Supply Current-Max:

    0.16 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    10.16 mm

71V016SA12PHGI8 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the 71V016SA12PHGI8 is -40°C to +85°C, as specified in the datasheet. However, it's essential to note that the device can operate at a wider temperature range, but with reduced performance and reliability.
  • It's crucial to follow a controlled power-up and power-down sequence to prevent damage to the device. The recommended sequence is to power up VCC first, followed by VPP, and then the clock signal. During power-down, the sequence should be reversed. Additionally, ensure that the input signals are stable and within the specified voltage range during power-up and power-down.
  • The maximum clock frequency supported by the 71V016SA12PHGI8 is 133 MHz, as specified in the datasheet. However, the actual clock frequency may be limited by the system design, PCB layout, and signal integrity. It's essential to ensure that the clock signal meets the specified jitter and skew requirements.
  • A reliable reset circuit is crucial for the 71V016SA12PHGI8. A recommended approach is to use a reset IC or a discrete reset circuit that can provide a clean and stable reset signal. The reset signal should be asserted for a minimum of 10 ms to ensure that the device is properly reset. Additionally, ensure that the reset signal is synchronized with the clock signal to prevent metastability issues.
  • PCB layout and signal integrity are critical for the 71V016SA12PHGI8. Ensure that the PCB layout is designed to minimize signal reflections, crosstalk, and electromagnetic interference (EMI). Use controlled impedance traces, and ensure that the signal lines are properly terminated. Additionally, follow the recommended pinout and package guidelines to minimize signal degradation.
