71V016SA15YG8 - Renesas Electronics

Description: The 71V016 3.3V CMOS SRAM is organized as 64K x 16. All bidirectional inputs and outputs of the 71V016 are LVTTL-compatible and operation is from a single 3.3V supply. Fully static asynchronous circuitry is used, requiring no clocks or refresh for operation.

Download 71V016SA15YG8 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

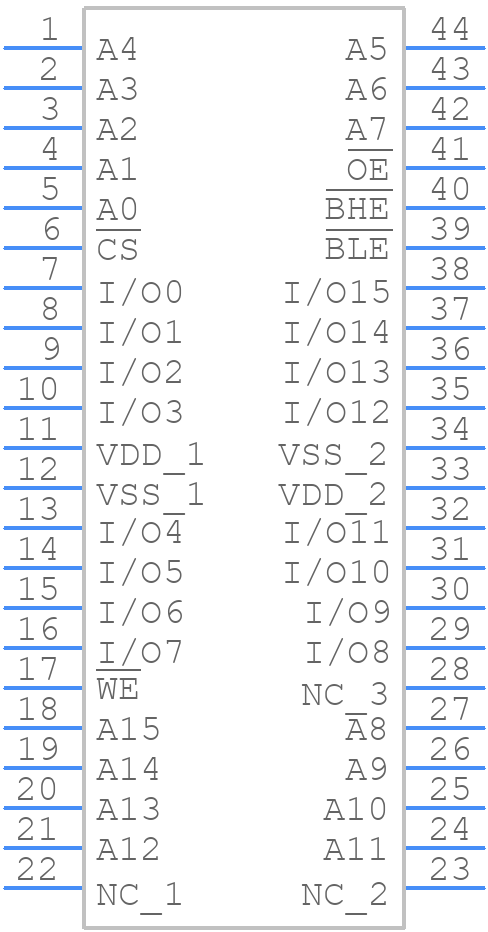

71V016SA15YG8 - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
71V016SA15YG8 - Renesas Electronics PCB footprint - Other - Other - PBG44
click to zoom
3D Models
71V016SA15YG8 - Renesas Electronics - 3D model - Other - PBG44
click to zoom

71V016SA15YG8 Details

  • Manufacturer Part Number:

    71V016SA15YG8

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOJ

  • Pin Count:

    44

  • Manufacturer Package Code:

    PBG44

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.41

  • Date Of Intro:

    2020-06-25

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • JESD-609 Code:

    e3

  • Memory IC Type:

    STANDARD SRAM

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    MATTE TIN

  • Time@Peak Reflow Temperature-Max (s):

    40

71V016SA15YG8 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the 71V016SA15YG8 is -40°C to +85°C, as specified in the datasheet. However, it's essential to note that the device can tolerate a wider temperature range during storage, typically from -55°C to +125°C.
  • To ensure proper operation, it's recommended to power up the VCC pin before the VPP pin. The VCC pin should be powered up first, followed by the VPP pin. This sequence helps prevent latch-up and ensures reliable operation.
  • The maximum allowed voltage on the input pins of the 71V016SA15YG8 is VCC + 0.5V. Exceeding this voltage may cause damage to the device or affect its reliability.
  • A reliable reset circuit can be implemented using a resistor-capacitor (RC) network connected to the RESET pin. The RC network should be designed to provide a minimum reset pulse width of 10 ns and a maximum voltage of VCC + 0.5V.
  • To minimize noise and ensure reliable operation, it's recommended to follow good layout and routing practices, such as keeping signal traces short, using ground planes, and avoiding parallel traces that may cause crosstalk.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

71V016SA15YG8 Overview

Use the download button to access the 71V016SA15YG8 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 71V01, or try a keyword search, such as SRAMs
