71V016SA20PHG8 - Renesas Electronics

Description: The 71V016 3.3V CMOS SRAM is organized as 64K x 16. All bidirectional inputs and outputs of the 71V016 are LVTTL-compatible and operation is from a single 3.3V supply. Fully static asynchronous circuitry is used, requiring no clocks or refresh for operation.

Download 71V016SA20PHG8 Model

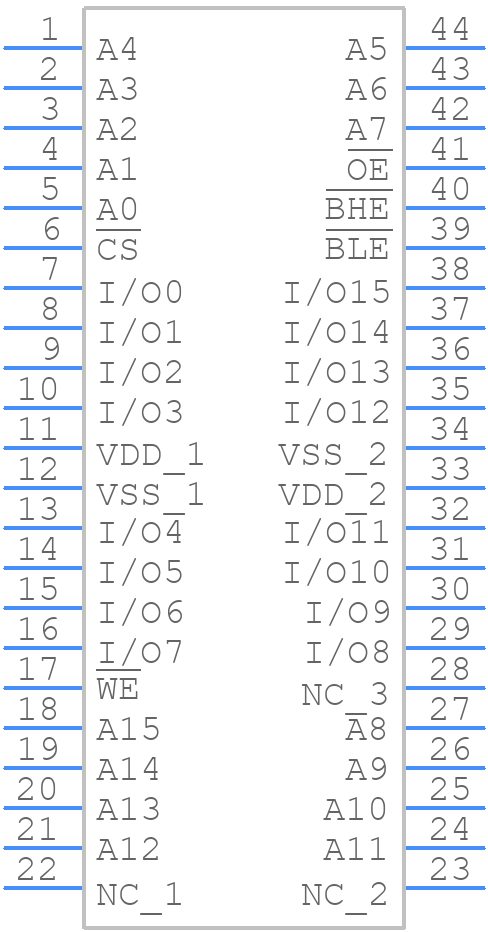

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

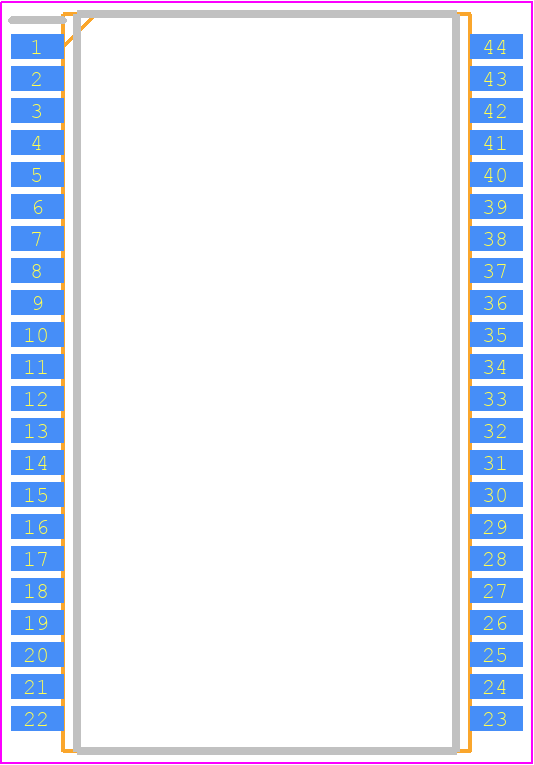

71V016SA20PHG8 - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - PHG44
click to zoom
3D Models
71V016SA20PHG8 - Renesas Electronics  - 3D model - Small Outline Packages - PHG44
click to zoom

71V016SA20PHG8 Details

  • Manufacturer Part Number:

    71V016SA20PHG8

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSOP

  • Package Description:

    TSOP2-44

  • Pin Count:

    44

  • Manufacturer Package Code:

    PHG44

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    3A991.b.2.b

  • HTS Code:

    8542.32.00.41

  • Factory Lead Time:

    18 Weeks

  • Date Of Intro:

    2020-06-25

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    4

  • Access Time-Max:

    20 ns

  • I/O Type:

    COMMON

  • JESD-30 Code:

    R-PDSO-G44

  • JESD-609 Code:

    e3

  • Length:

    18.41 mm

  • Memory Density:

    1048576 bit

  • Memory IC Type:

    STANDARD SRAM

  • Memory Width:

    16

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Ports:

    1

  • Number of Terminals:

    44

  • Number of Words:

    65536 words

  • Number of Words Code:

    64000

  • Operating Mode:

    ASYNCHRONOUS

  • Operating Temperature-Max:

    70 °C

  • Organization:

    64KX16

  • Output Characteristics:

    3-STATE

  • Output Enable:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSOP2

  • Package Equivalence Code:

    TSOP44,.46,32

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE

  • Parallel/Serial:

    PARALLEL

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Standby Current-Max:

    0.01 A

  • Standby Voltage-Min:

    3.15 V

  • Supply Current-Max:

    0.12 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3.15 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    10.16 mm
