71V124SA10PHGI - Renesas Electronics

Description: The 71V124 3.3V CMOS SRAM is organized as 128K x 8. The JEDEC center power/GND pinout reduces noise generation and improves system performance. All bidirectional inputs and outputs of the 71V124 are LVTTL-compatible and operation is from a single 3.3V supply. Fully static asynchronous circuitry is used; no clocks or refreshes are required for operation.

Download 71V124SA10PHGI Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

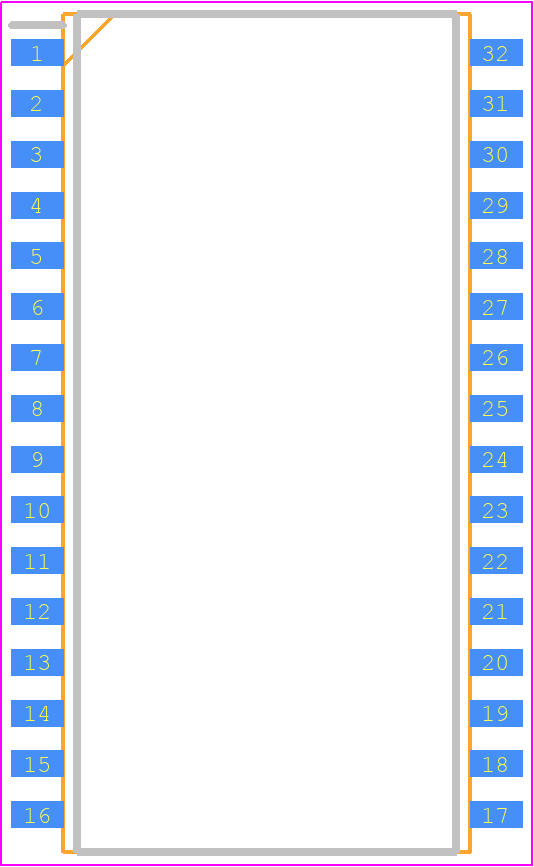

71V124SA10PHGI - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - PHG32
click to zoom
3D Models
71V124SA10PHGI - Renesas Electronics  - 3D model - Small Outline Packages - PHG32
click to zoom

71V124SA10PHGI Details

  • Manufacturer Part Number:

    71V124SA10PHGI

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSOP

  • Pin Count:

    32

  • Manufacturer Package Code:

    PHG32

  • ECCN Code:

    3A991.b.2.b

  • HTS Code:

    8542.32.00.41

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Access Time-Max:

    10 ns

  • I/O Type:

    COMMON

  • JESD-30 Code:

    R-PDSO-G32

  • JESD-609 Code:

    e3

  • Length:

    20.95 mm

  • Memory Density:

    1048576 bit

  • Memory IC Type:

    STANDARD SRAM

  • Memory Width:

    8

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Number of Words:

    131072 words

  • Number of Words Code:

    128000

  • Operating Mode:

    ASYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    128KX8

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSOP2

  • Package Equivalence Code:

    TSOP32,.46

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE

  • Parallel/Serial:

    PARALLEL

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Standby Current-Max:

    0.01 A

  • Standby Voltage-Min:

    3.15 V

  • Supply Current-Max:

    0.15 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3.15 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    10.16 mm

71V124SA10PHGI Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note AN9711, which includes guidelines for signal routing, power supply decoupling, and thermal management to ensure optimal performance and minimize noise.
  • The 71V124SA10PHGI has a thermal pad on the bottom of the package, which should be connected to a thermal plane on the PCB to dissipate heat. A thermal interface material (TIM) can be used to improve heat transfer. Additionally, ensure good airflow around the device and avoid blocking the airflow with nearby components.
  • While the datasheet specifies a maximum clock frequency of 100 MHz, the actual operating frequency may be limited by the system design, PCB layout, and signal integrity. It's recommended to perform signal integrity analysis and simulation to determine the maximum operating frequency for a specific design.
  • A reliable POR circuit can be implemented using an external voltage supervisor IC, such as the Renesas ISL88031, which provides a reset signal to the 71V124SA10PHGI during power-up and power-down sequences. The POR circuit should be designed to ensure a clean reset signal and prevent spurious resets during normal operation.
  • To minimize EMI and ensure EMC, follow best practices for PCB layout, such as separating analog and digital signals, using shielding, and implementing filtering and decoupling. Additionally, ensure that the device is operated within its specified operating conditions, and consider using EMI filters or shielding on the PCB.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

71V124SA10PHGI Overview

Use the download button to access the 71V124SA10PHGI schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 71V12, or try a keyword search, such as SRAMs

Parts related to 71V124SA10PHGI

Showing 0 results

71V124SA10PHGI Alternates

Showing results

Image Part Number Model
Part Image PDM31034SA10TTY Paradigm Technology Inc

Standard SRAM, 128KX8, 10ns, CMOS, PDSO32

Part Image K6R1008V1D-UC10 Samsung Semiconductor

Standard SRAM, 128KX8, 10ns, CMOS, PDSO32

Part Image IS63LV1024L-10TI Integrated Silicon Solution Inc

Standard SRAM, 128KX8, 10ns, CMOS, PDSO32

Part Image 71V124HSA10PHG Integrated Device Technology Inc

Standard SRAM, 128KX8, 10ns, CMOS, PDSO32

Part Image K6R1008V1C-TC10 Samsung Semiconductor

Standard SRAM, 128KX8, 10ns, CMOS, PDSO32

For a full list of alternate parts for 71V124SA10PHGI, check out Findchips.com
