71V124SA10PHGI8 - Renesas Electronics

Description: The 71V124 3.3V CMOS SRAM is organized as 128K x 8. The JEDEC center power/GND pinout reduces noise generation and improves system performance. All bidirectional inputs and outputs of the 71V124 are LVTTL-compatible and operation is from a single 3.3V supply. Fully static asynchronous circuitry is used; no clocks or refreshes are required for operation.

Download 71V124SA10PHGI8 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

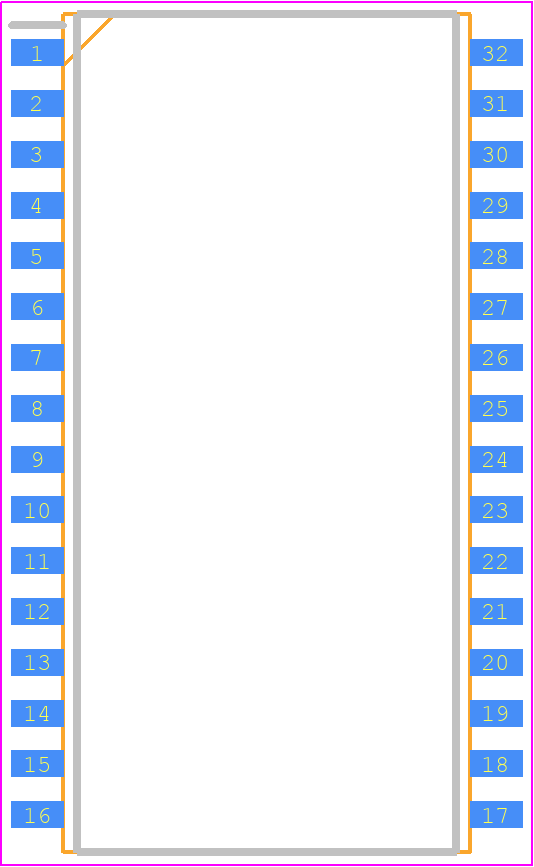

71V124SA10PHGI8 - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - PHG32
click to zoom
3D Models
71V124SA10PHGI8 - Renesas Electronics  - 3D model - Small Outline Packages - PHG32
click to zoom

71V124SA10PHGI8 Details

  • Manufacturer Part Number:

    71V124SA10PHGI8

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSOP

  • Pin Count:

    32

  • Manufacturer Package Code:

    PHG32

  • ECCN Code:

    3A991.b.2.b

  • HTS Code:

    8542.32.00.41

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Access Time-Max:

    10 ns

  • I/O Type:

    COMMON

  • JESD-30 Code:

    R-PDSO-G32

  • JESD-609 Code:

    e3

  • Length:

    20.95 mm

  • Memory Density:

    1048576 bit

  • Memory IC Type:

    STANDARD SRAM

  • Memory Width:

    8

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Number of Words:

    131072 words

  • Number of Words Code:

    128000

  • Operating Mode:

    ASYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    128KX8

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSOP2

  • Package Equivalence Code:

    TSOP32,.46

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE

  • Parallel/Serial:

    PARALLEL

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Standby Current-Max:

    0.01 A

  • Standby Voltage-Min:

    3.15 V

  • Supply Current-Max:

    0.15 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3.15 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    10.16 mm

71V124SA10PHGI8 Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application notes (e.g., AN9711) and evaluation board documentation. It's essential to follow these guidelines to ensure proper signal integrity, power supply decoupling, and thermal management.
  • The 71V124SA10PHGI8 has a thermal junction-to-ambient resistance (RθJA) of 24°C/W. To manage thermal issues, ensure good airflow, use a heat sink if necessary, and follow Renesas' thermal design guidelines. You can also consider using thermal interface materials and thermal vias on the PCB.
  • The input clock signal should be a stable, low-jitter clock source with a frequency range of 10 MHz to 33.33 MHz. The clock signal should also meet the specified input voltage and current requirements, and should be properly terminated to prevent signal reflections.
  • The 71V124SA10PHGI8 has an internal POR and BOD circuit. To implement POR, connect the VCC pin to a power supply with a suitable voltage regulator. For BOD, connect the VCC pin to a power supply with a brown-out detection circuit, and set the BOD threshold voltage according to the datasheet.
  • To minimize EMI and ensure EMC, follow proper PCB layout and design guidelines, use shielding and grounding techniques, and ensure that the device is properly decoupled from the power supply. Additionally, consider using EMI filters and ferrite beads on the clock and data lines.
