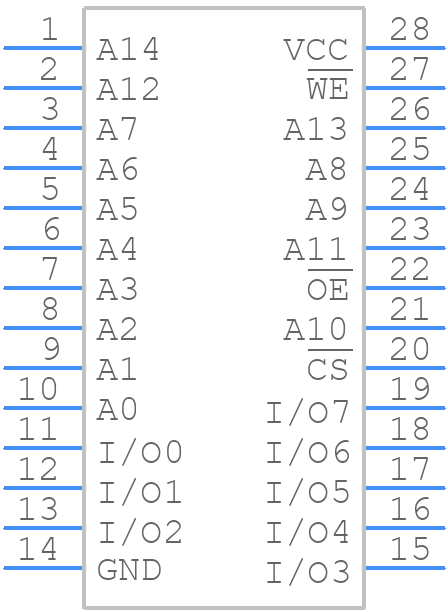

71V256SA15PZG - Renesas Electronics

71V256SA15PZG Details

• Manufacturer Part Number:

  71V256SA15PZG

• Brand Name:

  Renesas

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  TSOP

• Pin Count:

  28

• Manufacturer Package Code:

  PZG28

• ECCN Code:

  EAR99

• HTS Code:

  8542.32.00.41

• Manufacturer:

  Renesas Electronics Corporation

• YTEOL:

  0

• Access Time-Max:

  15 ns

• I/O Type:

  COMMON

• JESD-30 Code:

  R-PDSO-G28

• JESD-609 Code:

  e3

• Memory Density:

  262144 bit

• Memory IC Type:

  CACHE SRAM

• Memory Width:

  8

• Moisture Sensitivity Level:

  3

• Number of Functions:

  1

• Number of Terminals:

  28

• Number of Words:

  32768 words

• Number of Words Code:

  32000

• Operating Mode:

  ASYNCHRONOUS

• Operating Temperature-Max:

  70 °C

• Organization:

  32KX8

• Output Characteristics:

  3-STATE

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  TSOP1

• Package Equivalence Code:

  TSSOP28,.53,22

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, THIN PROFILE

• Parallel/Serial:

  PARALLEL

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Standby Current-Max:

  0.002 A

• Standby Voltage-Min:

  3 V

• Supply Current-Max:

  0.085 mA

• Supply Voltage-Max (Vsup):

  3.6 V

• Supply Voltage-Min (Vsup):

  3 V

• Supply Voltage-Nom (Vsup):

  3.3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  COMMERCIAL

• Terminal Finish:

  MATTE TIN

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.55 mm

• Terminal Position:

  DUAL
