71V416L10PHGI - Renesas Electronics

71V416L10PHGI Details

• Manufacturer Part Number:

  71V416L10PHGI

• Brand Name:

  Renesas

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  TSOP

• Pin Count:

  44

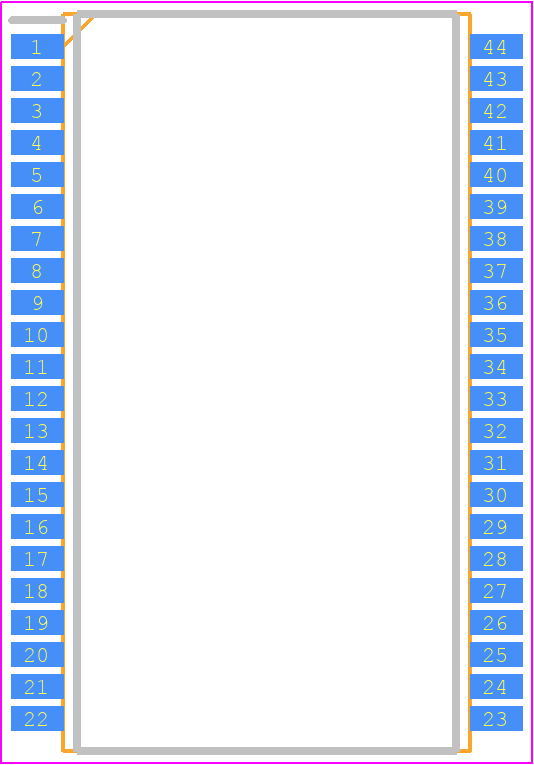

• Manufacturer Package Code:

  PHG44

• Country Of Origin:

  Taiwan

• ECCN Code:

  3A991.b.2.a

• HTS Code:

  8542.32.00.41

• Factory Lead Time:

  18 Weeks

• Manufacturer:

  Renesas Electronics Corporation

• YTEOL:

  5

• Access Time-Max:

  10 ns

• I/O Type:

  COMMON

• JESD-30 Code:

  R-PDSO-G44

• JESD-609 Code:

  e3

• Length:

  18.41 mm

• Memory Density:

  4194304 bit

• Memory IC Type:

  STANDARD SRAM

• Memory Width:

  16

• Moisture Sensitivity Level:

  3

• Number of Functions:

  1

• Number of Terminals:

  44

• Number of Words:

  262144 words

• Number of Words Code:

  256000

• Operating Mode:

  ASYNCHRONOUS

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Organization:

  256KX16

• Output Characteristics:

  3-STATE

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  TSOP2

• Package Equivalence Code:

  TSOP44,.46,32

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, THIN PROFILE

• Parallel/Serial:

  PARALLEL

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  1.2 mm

• Standby Current-Max:

  0.01 A

• Standby Voltage-Min:

  3 V

• Supply Current-Max:

  0.18 mA

• Supply Voltage-Max (Vsup):

  3.6 V

• Supply Voltage-Min (Vsup):

  3 V

• Supply Voltage-Nom (Vsup):

  3.3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Matte Tin (Sn) - annealed

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.8 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  10.16 mm
