71V416L12PHGI8 - Renesas Electronics

Description: The 71V416 3.3V CMOS SRAM is organized as 256K x 16. All bidirectional inputs and outputs of the 71V416 are LVTTL-compatible and operation is from a single 3.3V supply. Fully static asynchronous circuitry is used, requiring no clocks or refresh for operation.

Download 71V416L12PHGI8 Model

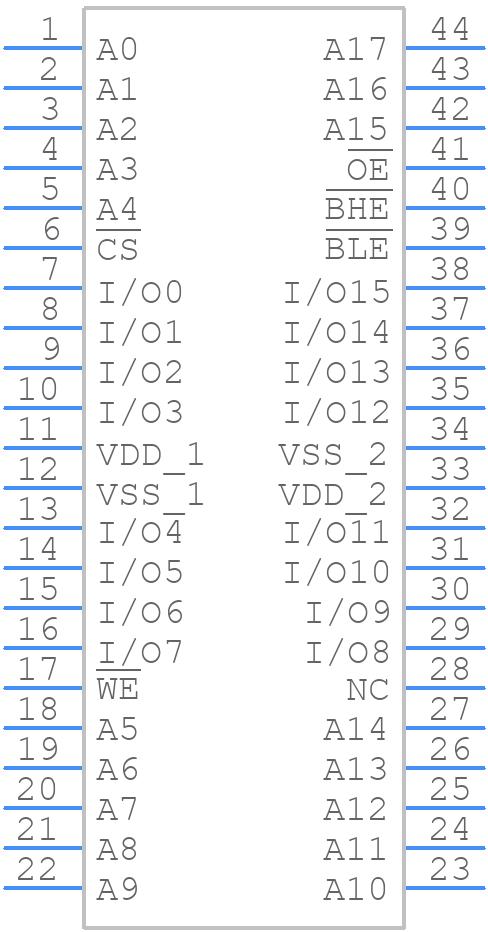

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

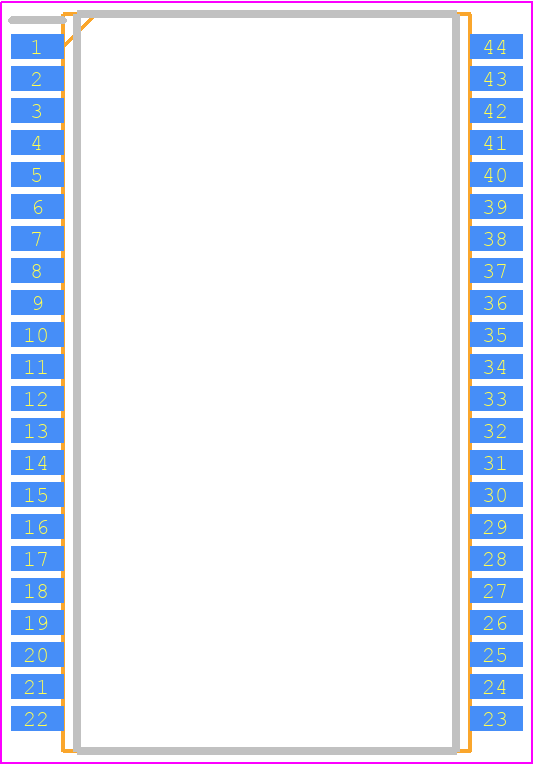

71V416L12PHGI8 - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - PHG44
click to zoom
3D Models
71V416L12PHGI8 - Renesas Electronics  - 3D model - Small Outline Packages - PHG44
click to zoom

71V416L12PHGI8 Details

  • Manufacturer Part Number:

    71V416L12PHGI8

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSOP

  • Pin Count:

    44

  • Manufacturer Package Code:

    PHG44

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    3A991.b.2.a

  • HTS Code:

    8542.32.00.41

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    4

  • Access Time-Max:

    12 ns

  • I/O Type:

    COMMON

  • JESD-30 Code:

    R-PDSO-G44

  • JESD-609 Code:

    e3

  • Length:

    18.41 mm

  • Memory Density:

    4194304 bit

  • Memory IC Type:

    STANDARD SRAM

  • Memory Width:

    16

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    44

  • Number of Words:

    262144 words

  • Number of Words Code:

    256000

  • Operating Mode:

    ASYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    256KX16

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSOP2

  • Package Equivalence Code:

    TSOP44,.46,32

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE

  • Parallel/Serial:

    PARALLEL

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Standby Current-Max:

    0.01 A

  • Standby Voltage-Min:

    3 V

  • Supply Current-Max:

    0.17 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    10.16 mm

71V416L12PHGI8 Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note (R01AN0265EJ0100) which includes guidelines for signal routing, power supply decoupling, and thermal management to ensure optimal performance and minimize noise.
  • The 71V416L12PHGI8 has a thermal pad on the bottom of the package. Renesas recommends using a thermal interface material (TIM) and a heat sink to dissipate heat. A thermal design guide is available in the application note (R01AN0265EJ0100) to help with thermal management.
  • Although the datasheet doesn't specify a maximum operating frequency, Renesas recommends operating the device at a maximum frequency of 133 MHz to ensure reliable operation and minimize power consumption.
  • The 71V416L12PHGI8 requires a clock signal to operate. Renesas recommends using a crystal oscillator or a clock generator IC to provide a stable clock signal. The clock signal should be connected to the CLK pin, and the clock frequency should be within the recommended range of 100 kHz to 133 MHz.
  • Renesas recommends a power-up sequence of VCC first, followed by VIO, and then the clock signal. This sequence helps prevent latch-up and ensures reliable operation.
