Description:The 71V416 3.3V CMOS SRAM is organized as 256K x 16. All bidirectional inputs and outputs of the 71V416 are LVTTL-compatible and operation is from a single 3.3V supply. Fully static asynchronous circuitry is used, requiring no clocks or refresh for operation.
A good PCB layout for the 71V416S10PHGI8 should prioritize signal integrity, minimize noise, and ensure proper power and ground distribution. Renesas provides a recommended PCB layout in their application notes and evaluation boards, which can serve as a reference.
The 71V416S10PHGI8 has a maximum junction temperature of 150°C. To ensure reliable operation, it's essential to implement proper thermal management, such as using a heat sink, thermal interface material, and ensuring good airflow. Renesas provides thermal resistance values in the datasheet to aid in thermal design.
The 71V416S10PHGI8 requires a stable, low-jitter clock signal with a frequency range of 10-133 MHz. The input clock signal should have a duty cycle of 40-60% and a voltage swing of 2.5V ± 0.5V. Additionally, the clock signal should be free from excessive noise and ringing.
The 71V416S10PHGI8 has an internal POR and BOD circuitry. To implement POR, connect the VCC pin to a power supply with a slow rise time (typically 1-10 ms). For BOD, connect the VCC pin to a power supply with a voltage range of 2.7-3.6V. The device will automatically reset when the voltage falls below the BOD threshold.
To minimize EMI and ensure EMC, follow proper PCB design practices, such as using a solid ground plane, minimizing signal trace lengths, and using shielding or filtering components. Additionally, ensure that the device is operated within its specified frequency range and that the system meets relevant regulatory standards (e.g., FCC, CE, etc.).
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
71V416S10PHGI8 Overview

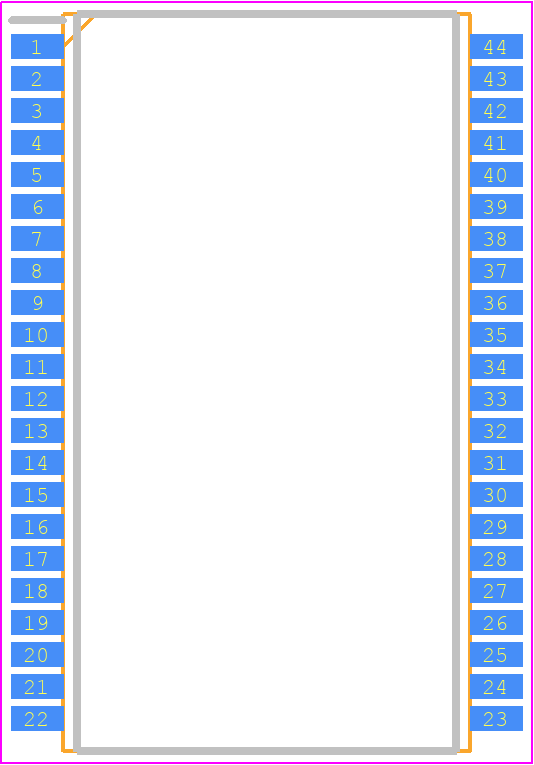

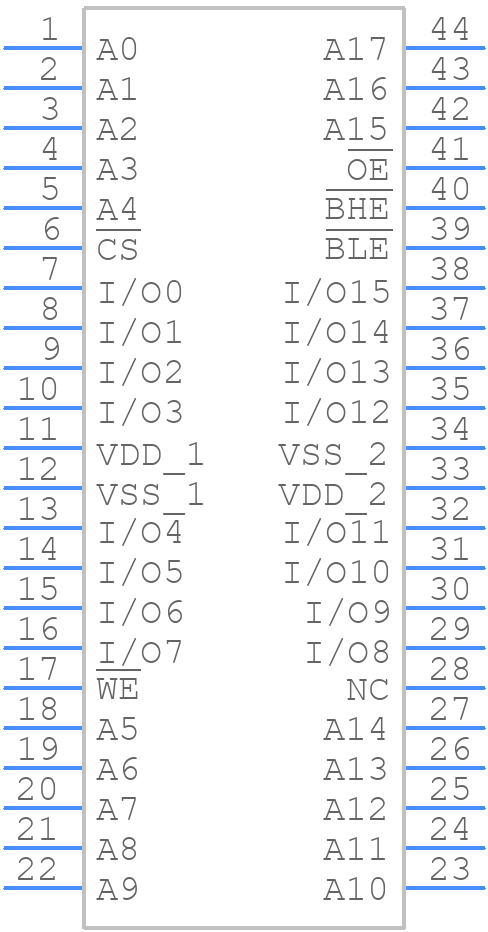

Use the download button to access the 71V416S10PHGI8 schematic symbol, PCB footprint, and 3D model.
