71V416S12YGI - Renesas Electronics

Description: The 71V416 3.3V CMOS SRAM is organized as 256K x 16. All bidirectional inputs and outputs of the 71V416 are LVTTL-compatible and operation is from a single 3.3V supply. Fully static asynchronous circuitry is used, requiring no clocks or refresh for operation.

Download 71V416S12YGI Model

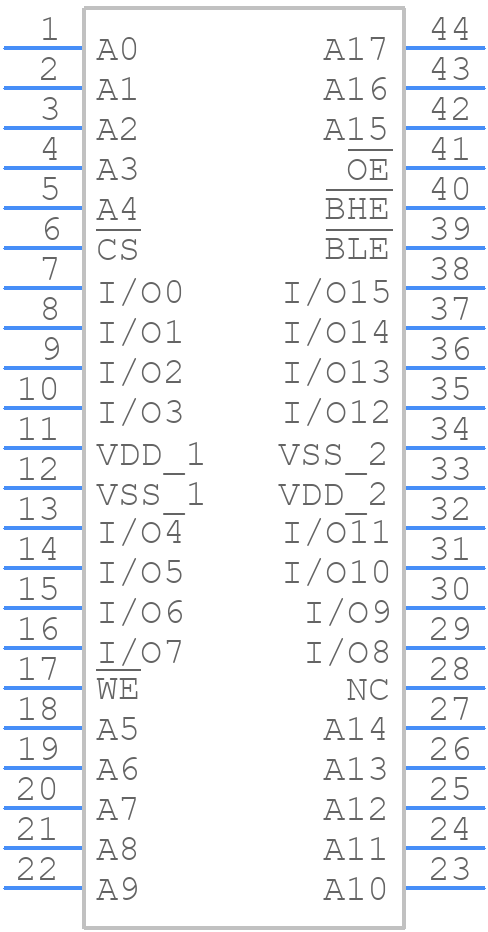

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
71V416S12YGI - Renesas Electronics PCB footprint - Other - Other - PBG44
click to zoom
3D Models
71V416S12YGI - Renesas Electronics  - 3D model - Other - PBG44
click to zoom

71V416S12YGI Details

  • Manufacturer Part Number:

    71V416S12YGI

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOJ

  • Pin Count:

    44

  • Manufacturer Package Code:

    PBG44

  • ECCN Code:

    3A991.b.2.a

  • HTS Code:

    8542.32.00.41

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Access Time-Max:

    12 ns

  • I/O Type:

    COMMON

  • JESD-30 Code:

    R-PDSO-J44

  • JESD-609 Code:

    e3

  • Length:

    28.575 mm

  • Memory Density:

    4194304 bit

  • Memory IC Type:

    STANDARD SRAM

  • Memory Width:

    16

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    44

  • Number of Words:

    262144 words

  • Number of Words Code:

    256000

  • Operating Mode:

    ASYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    256KX16

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOJ

  • Package Equivalence Code:

    SOJ44,.44

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Parallel/Serial:

    PARALLEL

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    3.683 mm

  • Standby Current-Max:

    0.02 A

  • Standby Voltage-Min:

    3 V

  • Supply Current-Max:

    0.18 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    J BEND

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    10.16 mm

71V416S12YGI Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note (R01AN0265EJ0100) which includes guidelines for signal routing, power supply decoupling, and thermal management to ensure optimal performance and minimize noise.
  • A reliable POR circuit can be implemented using an external voltage supervisor IC (such as the Renesas RP108 series) or by using the internal POR circuit of the 71V416S12YGI. The internal POR circuit can be enabled by connecting the VCC pin to the VCCP pin and ensuring that the power supply ramps up slowly (typically 10 ms to 100 ms).
  • The 71V416S12YGI has an operating temperature range of -40°C to +85°C, but it's essential to note that the device's performance and reliability may degrade at extreme temperatures. It's recommended to operate the device within the recommended temperature range for optimal performance.
  • To ensure EMC compliance, follow Renesas' guidelines for PCB layout, component selection, and shielding. Additionally, consider using EMI filters, ferrite beads, and shielding components to minimize electromagnetic radiation. It's also recommended to perform EMC testing and certification according to relevant industry standards.
  • For optimal clock signal integrity, Renesas recommends using a low-impedance clock signal path, terminating the clock signal with a 50-ohm resistor, and using a clock signal buffer (such as the Renesas NB7L series) to reduce signal skew and jitter.
