71V424L10PHGI - Renesas Electronics

Description: The 71V424 3.3V CMOS SRAM is organized as 512K x 8. All bidirectional inputs and outputs of the 71V424 are TTL-compatible and operation is from a single 3.3V supply. Fully static asynchronous circuitry is used, requiring no clocks or refresh for operation.

Download 71V424L10PHGI Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

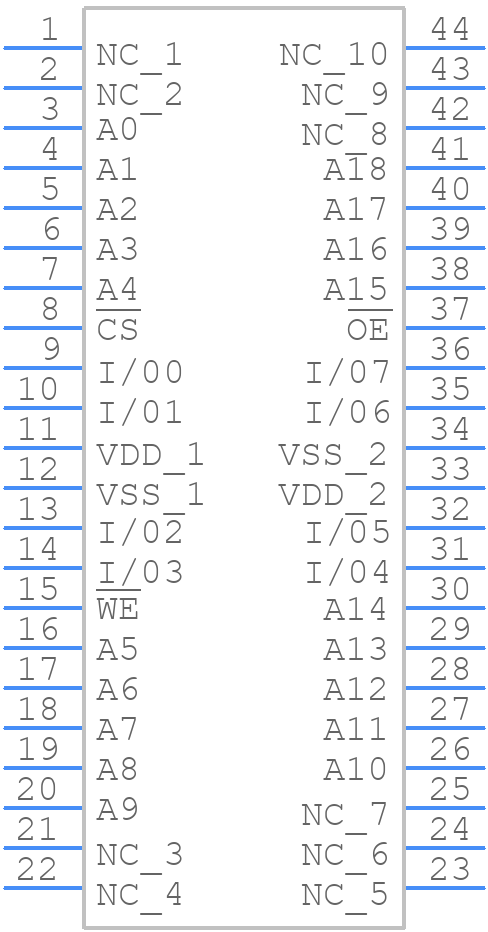

71V424L10PHGI - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints

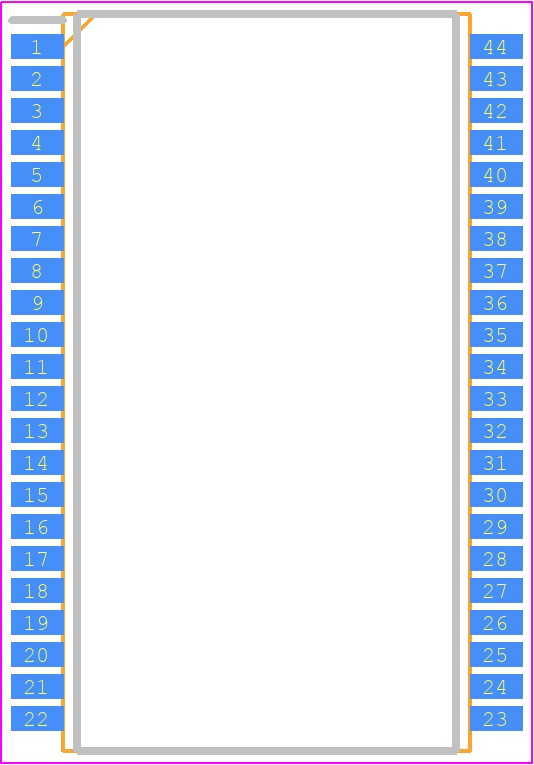

71V424L10PHGI - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - PHG44
click to zoom
3D Models
71V424L10PHGI - Renesas Electronics - 3D model - Small Outline Packages - PHG44
click to zoom

71V424L10PHGI Details

  • Manufacturer Part Number:

    71V424L10PHGI

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSOP

  • Pin Count:

    44

  • Manufacturer Package Code:

    PHG44

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    3A991.b.2.a

  • HTS Code:

    8542.32.00.41

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    5

  • Access Time-Max:

    10 ns

  • I/O Type:

    COMMON

  • JESD-30 Code:

    R-PDSO-G44

  • JESD-609 Code:

    e3

  • Length:

    18.41 mm

  • Memory Density:

    4194304 bit

  • Memory IC Type:

    STANDARD SRAM

  • Memory Width:

    8

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    44

  • Number of Words:

    524288 words

  • Number of Words Code:

    512000

  • Operating Mode:

    ASYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    512KX8

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    TSOP44,.46,32

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Parallel/Serial:

    PARALLEL

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Standby Current-Max:

    0.01 A

  • Standby Voltage-Min:

    3 V

  • Supply Current-Max:

    0.165 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    10.16 mm

71V424L10PHGI Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note (Renesas Document No. AP-5053) which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
  • The 71V424L10PHGI has a thermal pad on the bottom of the package, which should be connected to a thermal plane on the PCB to dissipate heat. A thermal interface material (TIM) can be used to improve heat transfer. Additionally, ensure good airflow around the device and consider using a heat sink if necessary.
  • The input capacitors should be low-ESR, high-frequency capacitors with a minimum capacitance of 10uF and a voltage rating of at least 2.5V. X5R or X7R dielectric capacitors are recommended. The capacitors should be placed as close to the device as possible to minimize noise and ensure stable operation.
  • To prevent data corruption, ensure that the power supply ramps up and down slowly (typically 10ms to 100ms) and that the device is in a stable power state before accessing the memory. Additionally, use a voltage supervisor or reset circuit to ensure the device is properly reset during power-up and power-down.
  • For high-reliability or high-temperature applications, consider using a device with a higher temperature rating (e.g., industrial or automotive grade). Ensure that the PCB and components are designed to withstand the operating temperature range. Additionally, follow Renesas' guidelines for high-reliability design and manufacturing.
