Description:The 71V424 3.3V CMOS SRAM is organized as 512K x 8. All bidirectional inputs and outputs of the 71V424 are TTL-compatible and operation is from a single 3.3V supply. Fully static asynchronous circuitry is used, requiring no clocks or refresh for operation.
A good PCB layout for the 71V424S10YG8 should prioritize signal integrity, minimize noise, and ensure proper power and ground distribution. Renesas provides a recommended PCB layout in their application notes and evaluation boards, which can serve as a reference.
The 71V424S10YG8 has a thermal junction-to-ambient resistance (RθJA) of 24°C/W. To manage thermal performance, ensure good airflow, use a heat sink if necessary, and follow Renesas' thermal design guidelines. Additionally, consider using thermal interface materials and optimizing the PCB design for heat dissipation.
The input clock signal should be a stable, low-jitter clock source with a frequency range of 10-40 MHz. The clock signal should also meet the specified voltage and current requirements, and be properly terminated to minimize reflections and noise.
A reliable POR circuit can be implemented using an external voltage supervisor or a power-on reset IC. The circuit should be designed to ensure a clean power-up sequence, with the POR signal asserted until the power supply reaches a stable voltage. Renesas provides guidelines for POR circuit design in their application notes.
To minimize EMI and ensure EMC, follow Renesas' guidelines for PCB layout, component selection, and shielding. Use EMI filters, chokes, or common-mode filters as needed, and ensure that the device is properly grounded and shielded. Additionally, consider using EMI-absorbing materials and following regulatory guidelines for EMI and EMC compliance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
71V424S10YG8 Overview

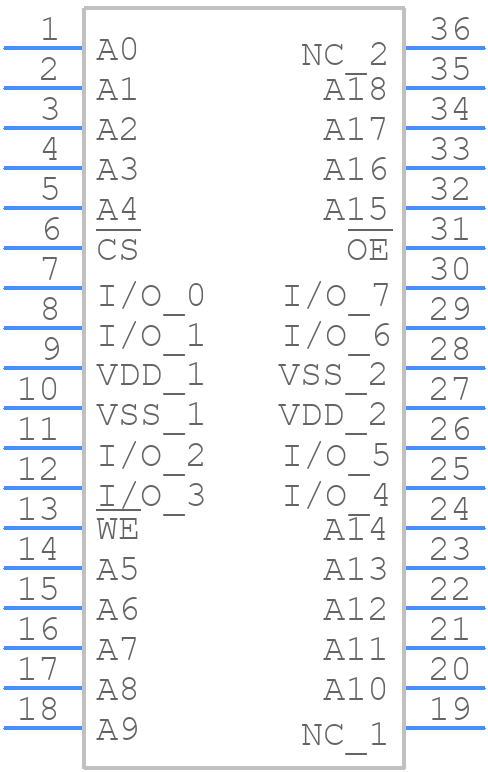

Use the download button to access the 71V424S10YG8 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 71V42,
or try a keyword search, such as SRAMs
