71V424S12PHG - Renesas Electronics

Description: The 71V424 3.3V CMOS SRAM is organized as 512K x 8. All bidirectional inputs and outputs of the 71V424 are TTL-compatible and operation is from a single 3.3V supply. Fully static asynchronous circuitry is used, requiring no clocks or refresh for operation.

Download 71V424S12PHG Model

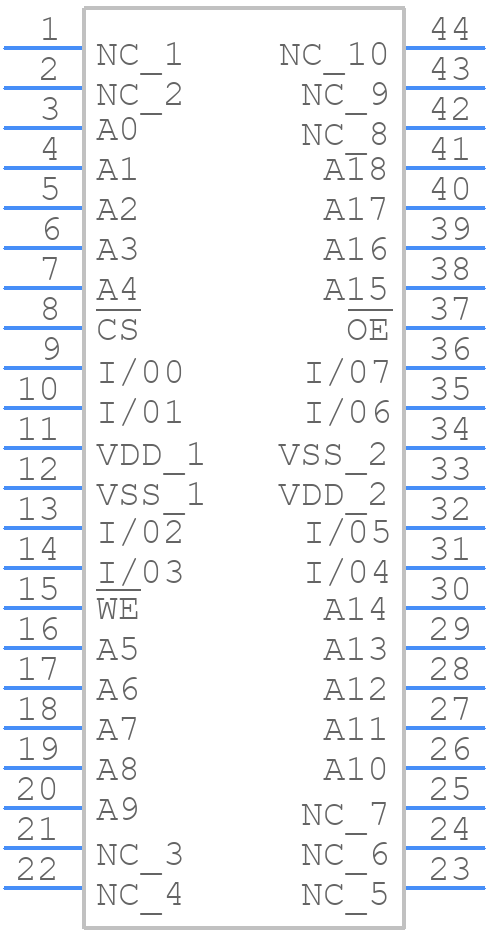

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

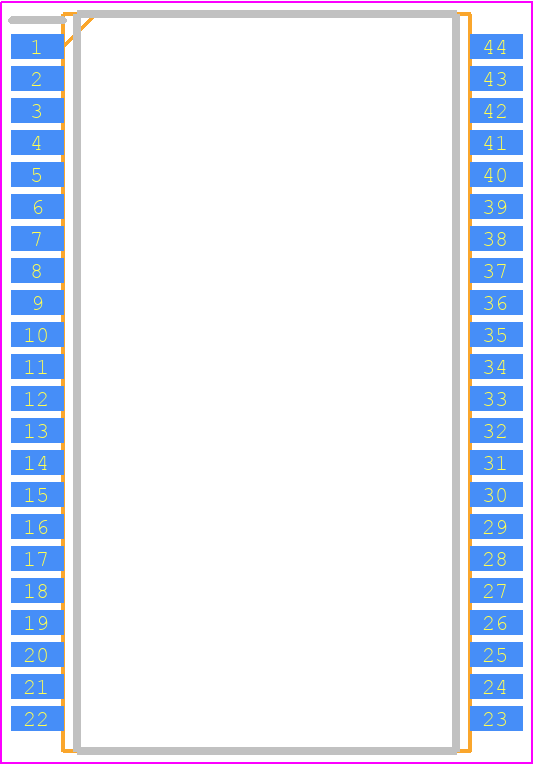

71V424S12PHG - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - PHG44
click to zoom
3D Models
71V424S12PHG - Renesas Electronics  - 3D model - Small Outline Packages - PHG44
click to zoom

71V424S12PHG Details

  • Manufacturer Part Number:

    71V424S12PHG

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSOP

  • Pin Count:

    44

  • Manufacturer Package Code:

    PHG44

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    3A991.b.2.a

  • HTS Code:

    8542.32.00.41

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    4

  • Access Time-Max:

    12 ns

  • I/O Type:

    COMMON

  • JESD-30 Code:

    R-PDSO-G44

  • JESD-609 Code:

    e3

  • Length:

    18.41 mm

  • Memory Density:

    4194304 bit

  • Memory IC Type:

    STANDARD SRAM

  • Memory Width:

    8

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    44

  • Number of Words:

    524288 words

  • Number of Words Code:

    512000

  • Operating Mode:

    ASYNCHRONOUS

  • Operating Temperature-Max:

    70 °C

  • Organization:

    512KX8

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    TSOP44,.46,32

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Parallel/Serial:

    PARALLEL

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Standby Current-Max:

    0.02 A

  • Standby Voltage-Min:

    3 V

  • Supply Current-Max:

    0.17 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    10.16 mm

71V424S12PHG Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note (Renesas Document No. AP-5053) which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
  • The 71V424S12PHG has a thermal pad on the bottom of the package, which should be connected to a thermal plane on the PCB to dissipate heat. A thermal interface material (TIM) can be used to improve heat transfer. Additionally, ensure good airflow and avoid blocking the airflow around the device.
  • The maximum clock frequency for the 71V424S12PHG is 100 MHz, but it can be overclocked up to 133 MHz with reduced voltage and temperature. However, this is not recommended as it may affect the device's reliability and lifespan.
  • A reliable POR circuit can be implemented using an external voltage supervisor IC, such as the Renesas ISL88003, which provides a reset signal to the 71V424S12PHG during power-up and power-down sequences. The POR circuit should be designed to ensure a clean reset signal and to prevent brown-out conditions.
  • To minimize EMI and ensure EMC, follow good PCB design practices, such as using a solid ground plane, minimizing signal trace lengths, and using shielding or filtering components. Additionally, ensure that the device is properly decoupled and that the power supply is well-regulated.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

71V424S12PHG Overview

Use the download button to access the 71V424S12PHG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 71V42, or try a keyword search, such as SRAMs

Parts related to 71V424S12PHG

Showing 0 results

71V424S12PHG Alternates

Showing results

Image Part Number Model
Part Image IDT71V424S12PHG Integrated Device Technology Inc

Standard SRAM, 512KX8, 12ns, CMOS, PDSO44

Part Image 71V424YS12PH Integrated Device Technology Inc

Standard SRAM, 512KX8, 12ns, CMOS, PDSO44

Part Image IDT71V424S12PHG8 Renesas Electronics Corporation

Standard SRAM, 512KX8, 12ns, CMOS, PDSO44

Part Image IDT71V424YS12PHG Integrated Device Technology Inc

Standard SRAM, 512KX8, 12ns, CMOS, PDSO44

Part Image 71V424YFS12PH Integrated Device Technology Inc

Standard SRAM, 512KX8, 12ns, CMOS, PDSO44

For a full list of alternate parts for 71V424S12PHG, check out Findchips.com
