Description:The 71V67703 3.3V CMOS SRAM is organized as 256K x 36. The 71V67703 SRAM contains write, data, address and control registers. There are no registers in the data output path (flow-through architecture). The burst mode feature offers the highest level of performance to the system designer, as it can provide four cycles of data for a single address presented to the SRAM.
Renesas provides a recommended PCB layout guide in their application note (R01AN0265EJ0100) which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
A reliable POR circuit can be implemented using an external voltage supervisor IC (e.g., Renesas' RP108 series) that monitors the power supply voltage and asserts a reset signal to the 71V67703S85PFGI8 during power-up and power-down sequences.
The 71V67703S85PFGI8 has a maximum junction temperature of 150°C. To ensure reliable operation, it's essential to implement proper thermal management, such as using a heat sink, thermal interface material, and optimizing PCB layout to minimize thermal resistance.
To troubleshoot clock signal issues, use an oscilloscope to verify the clock signal frequency, amplitude, and jitter. Check the clock source, clock distribution network, and clock input pin integrity. Also, ensure that the clock signal meets the recommended specifications in the datasheet.
To minimize EMI and ensure EMC compliance, follow Renesas' guidelines for PCB layout, component selection, and shielding. Use a multi-layer PCB with a solid ground plane, and consider using EMI filters or shielding cans for sensitive components.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
71V67703S85PFGI8 Overview

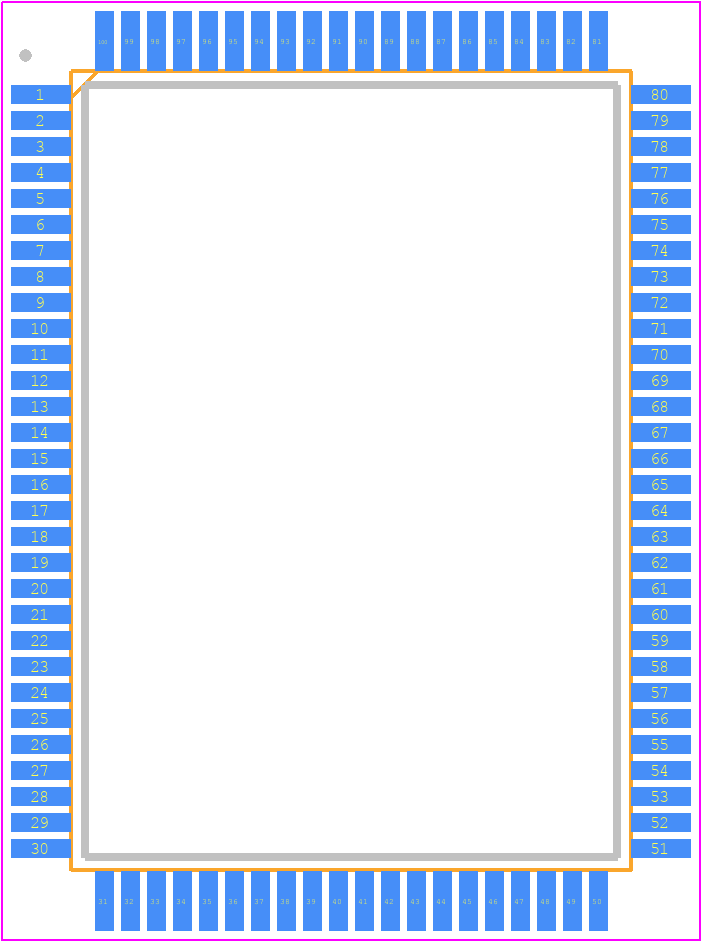

Use the download button to access the 71V67703S85PFGI8 schematic symbol, PCB footprint, and 3D model.
