Description:The 7200 is a 256 x 9 dual-port FIFO memory that loads and empties data on a first-in/first-out basis. The device uses Full and Empty flags to prevent data overflow and underflow. It has a Retransmit (RT) capability that allows for reset of the read pointer to its initial position when RT is pulsed LOW. It is designed for those applications requiring asynchronous and simultaneous read/writes in multiprocessing and rate buffer applications.
Renesas provides a recommended PCB layout guide in their application note (APN) documents, which includes guidelines for thermal vias, copper pours, and component placement to ensure optimal thermal performance.
The 7200L12SOG has a built-in overcurrent protection feature, but it's recommended to add external overcurrent protection circuitry, such as a current sense resistor and a comparator, to provide additional protection and flexibility.
The recommended input capacitor value is typically in the range of 10uF to 22uF, and a low-ESR ceramic capacitor (such as X5R or X7R) is recommended to ensure stable operation and minimize voltage ripple.
To ensure EMC compliance, follow Renesas' guidelines for PCB layout, component selection, and shielding. Additionally, consider using EMI filters, ferrite beads, and shielding components to minimize electromagnetic interference.
The maximum operating temperature range for the 7200L12SOG is -40°C to 125°C, but it's recommended to derate the device's performance and consider thermal management strategies for high-temperature applications.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
7200L12SOG Overview

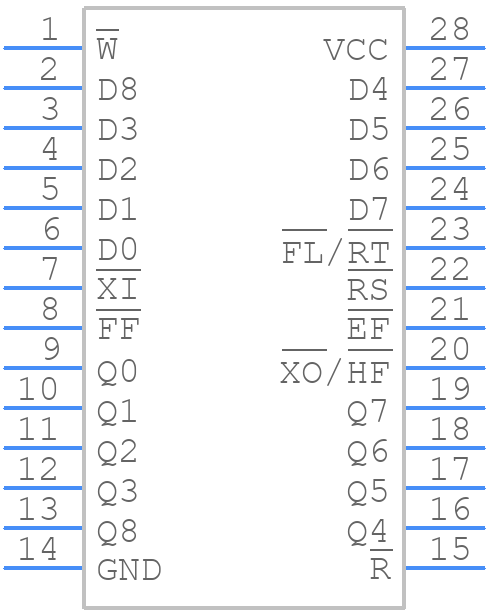

Use the download button to access the 7200L12SOG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 7200L,
or try a keyword search, such as FIFOs
