7201LA15JGI8 - Renesas Electronics

Description: The 7201 is a 512 x 9 dual-port FIFO memory that loads and empties data on a first-in/first-out basis. The device uses Full and Empty flags to prevent data overflow and underflow. It has a Retransmit (RT) capability that allows for reset of the read pointer to its initial position when RT is pulsed LOW. It is designed for those applications requiring asynchronous and simultaneous read/writes in multiprocessing and rate buffer applications.

Download 7201LA15JGI8 Model

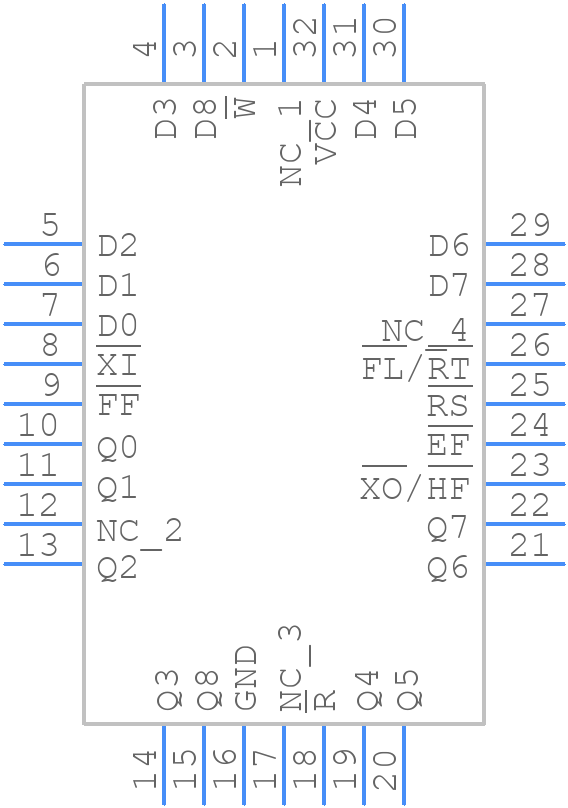

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

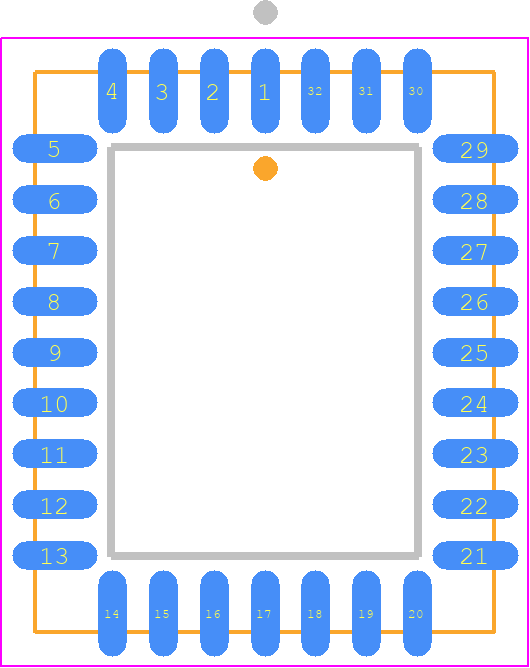

7201LA15JGI8 - Renesas Electronics PCB footprint - Plastic Leaded Chip Carrier - Plastic Leaded Chip Carrier - PLCC32_
click to zoom

7201LA15JGI8 Details

  • Manufacturer Part Number:

    7201LA15JGI8

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    PLCC

  • Pin Count:

    32

  • Manufacturer Package Code:

    PLG32

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.71

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    4

  • Access Time-Max:

    15 ns

  • Additional Feature:

    RETRANSMIT

  • Clock Frequency-Max (fCLK):

    40 MHz

  • Cycle Time:

    25 ns

  • JESD-30 Code:

    R-PQCC-J32

  • JESD-609 Code:

    e3

  • Length:

    13.97 mm

  • Memory Density:

    4608 bit

  • Memory IC Type:

    OTHER FIFO

  • Memory Width:

    9

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Number of Words:

    512 words

  • Number of Words Code:

    512

  • Operating Mode:

    ASYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    512X9

  • Output Characteristics:

    3-STATE

  • Output Enable:

    NO

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QCCJ

  • Package Equivalence Code:

    LDCC32,.5X.6

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER

  • Parallel/Serial:

    PARALLEL

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    3.55 mm

  • Standby Current-Max:

    0.005 A

  • Supply Current-Max:

    0.08 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    J BEND

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    11.43 mm

7201LA15JGI8 Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note '7201LA15JGI8 PCB Layout Guidelines' (document number R01CL0005EJ0100). It includes guidelines for thermal vias, heat sinks, and component placement to ensure optimal thermal performance.
  • Renesas provides a Secure Boot and Firmware Encryption Guide (document number R01AN0004EJ0100) that outlines the steps to implement secure boot and firmware encryption on the 7201LA15JGI8. It includes information on generating encryption keys, creating a secure boot loader, and encrypting firmware images.
  • The internal oscillator on the 7201LA15JGI8 has a typical accuracy of ±2% at room temperature. To improve its accuracy, you can use an external crystal oscillator or a high-precision external clock source. Additionally, Renesas provides a calibration procedure in their application note 'Internal Oscillator Calibration' (document number R01CL0006EJ0100) to adjust the internal oscillator frequency.
  • Renesas provides a Power Consumption Optimization Guide (document number R01AN0003EJ0100) that outlines techniques to minimize power consumption in low-power modes. This includes configuring the clock system, disabling unnecessary peripherals, and using the built-in low-power modes such as Sleep and Stop modes.
  • Renesas provides an EMC/EMI Design Guide (document number R01CL0007EJ0100) that outlines the considerations for designing EMC-compliant systems using the 7201LA15JGI8. This includes guidelines for PCB layout, component selection, and shielding to minimize EMI emissions and improve EMC immunity.
