7202LA15JGI - Renesas Electronics

7202LA15JGI Details

• Manufacturer Part Number:

  7202LA15JGI

• Brand Name:

  Renesas

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

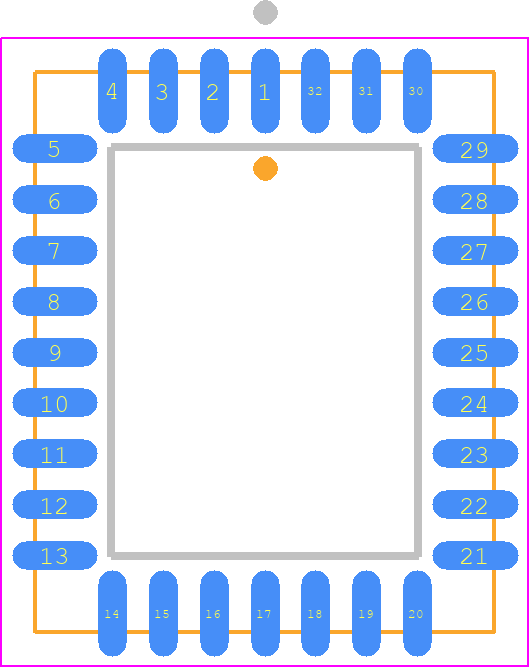

• Part Package Code:

  PLCC

• Pin Count:

  32

• Manufacturer Package Code:

  PLG32

• Country Of Origin:

  Taiwan

• ECCN Code:

  EAR99

• HTS Code:

  8542.32.00.71

• Factory Lead Time:

  18 Weeks

• Manufacturer:

  Renesas Electronics Corporation

• YTEOL:

  4

• Access Time-Max:

  15 ns

• Additional Feature:

  RETRANSMIT

• Clock Frequency-Max (fCLK):

  40 MHz

• Cycle Time:

  25 ns

• JESD-30 Code:

  R-PQCC-J32

• JESD-609 Code:

  e3

• Length:

  13.97 mm

• Memory Density:

  9216 bit

• Memory IC Type:

  OTHER FIFO

• Memory Width:

  9

• Moisture Sensitivity Level:

  3

• Number of Functions:

  1

• Number of Terminals:

  32

• Number of Words:

  1024 words

• Number of Words Code:

  1000

• Operating Mode:

  ASYNCHRONOUS

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Organization:

  1KX9

• Output Enable:

  NO

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  QCCJ

• Package Equivalence Code:

  LDCC32,.5X.6

• Package Shape:

  RECTANGULAR

• Package Style:

  CHIP CARRIER

• Parallel/Serial:

  PARALLEL

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  3.55 mm

• Standby Current-Max:

  0.005 A

• Supply Current-Max:

  0.08 mA

• Supply Voltage-Max (Vsup):

  5.5 V

• Supply Voltage-Min (Vsup):

  4.5 V

• Supply Voltage-Nom (Vsup):

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Matte Tin (Sn) - annealed

• Terminal Form:

  J BEND

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  11.43 mm
